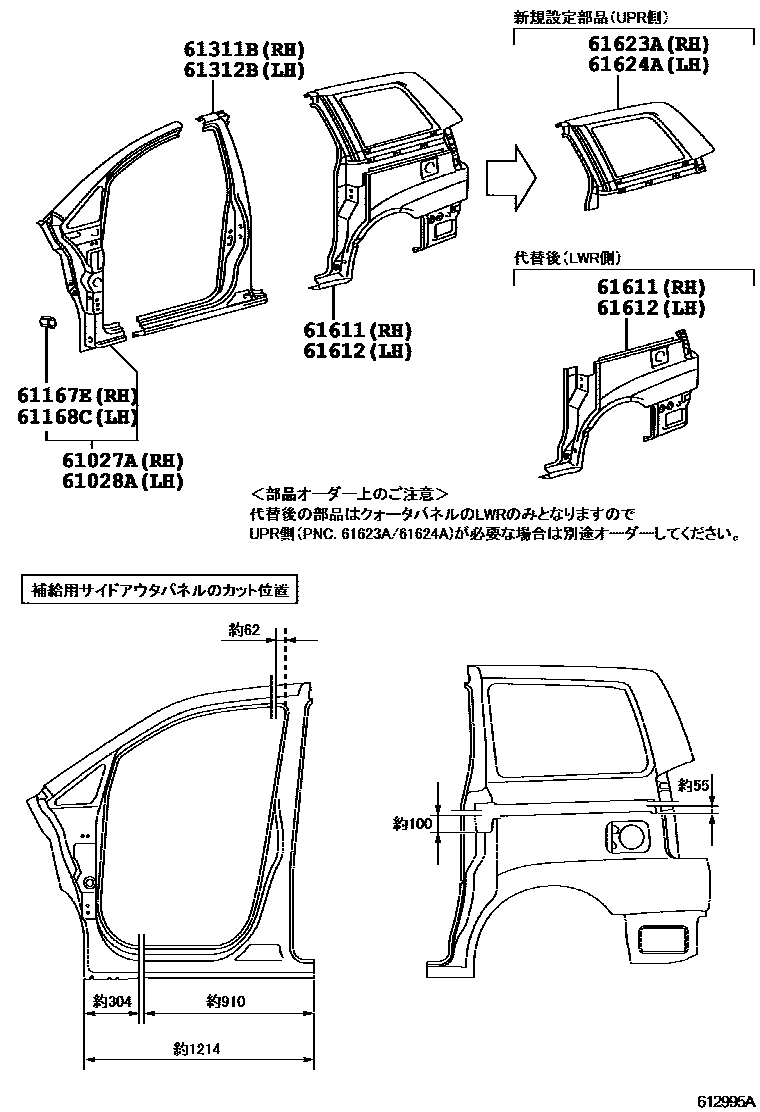

Toyota NOAH/VOXY — SIDE MEMBER

0001 1������� 0002 1�������,RH 0003 1�������,LH

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-28110iAZR6#¥26,000200111-200408

main61027-28110iAZR6#¥26,000200408

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-28200iAZR6#¥26,000200111-200408

main61028-28200iAZR6#¥26,000200408

61167EBRACKET, NO.6 PILLAR OUTER

main61168-44010iAZR6#¥230200111-200408

main61168-44010iAZR6#¥230200408

61168CBRACKET, NO.6 PILLAR OUTER

main61168-44010iAZR6#¥230200111-200408

main61168-44010iAZR6#¥230200408

61311BPILLAR, CENTER BODY, OUTER RH

main61311-28120iAZR6#¥26,800200111-200408

main61311-28120iAZR6#¥26,800200408

61312BPILLAR, CENTER BODY, OUTER LH

main61312-28120iAZR6#¥26,800200111-200408

main61312-28120iAZR6#¥26,800200408

61611PANEL, QUARTER, RH

main61611-28200iAZR6#..L,V,X¥57,200200111-200408

��(������ ��-)

sub61611-28300¥54,400

main61611-28200iAZR6#..X¥57,200200408

��(������ ��-)

sub61611-28300¥54,400

main61611-28210iAZR6#..TRASX,X,YY¥57,200200408

sub61611-28310¥54,400

main61611-28210iAZR6#..L,V,X¥57,200200111-200408

sub61611-28310¥54,400

main61611-28220iAZR6#..S,Z¥57,200200111-200408

��(������ ��-)

sub61611-28320¥54,400

main61611-28220iAZR6#..S,Z¥57,200200408

��(������ ��-)

sub61611-28320¥54,400

main61611-28230iAZR6#..S,Z¥57,200200111-200408

sub61611-28330¥54,400

main61611-28230iAZR6#..S,Z¥57,200200408

sub61611-28330¥54,400

61612PANEL, QUARTER, LH

main61612-28210iAZR6#..4HC..(L,V,X)¥57,200200111-200408

sub61612-28270¥57,200

main61612-28220iAZR6#..4HC..(S,Z)¥57,200200111-200408

sub61612-28280¥57,200

main61612-28250iAZR6#..TRASX,X,YY¥57,200200408

sub61612-28270¥57,200

main61612-28260iAZR6#..S,Z¥57,200200408

sub61612-28280¥57,200

61623AEXTENSION, QUARTER PANEL, OUTER RH

main61623-28120iAZR6#¥21,200200111-200408

main61623-28120iAZR6#¥21,200200408

61624AEXTENSION, QUARTER PANEL, OUTER LH

main61624-28110iAZR6#¥21,200200111-200408

main61624-28110iAZR6#¥21,200200408

10 parts on this diagram · 3 diagrams in section
