Toyota NOAH/VOXY — SHORT BLOCK ASSEMBLY

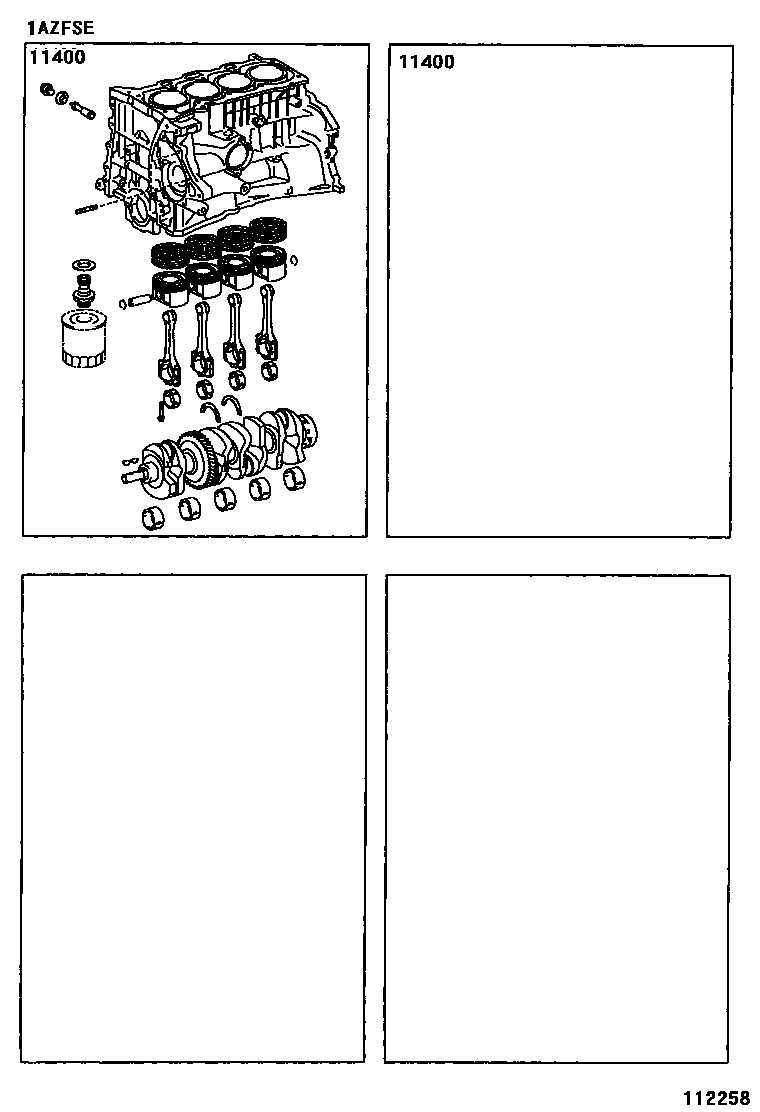

Parts diagram

11400BLOCK ASSY, SHORT

main11400-28060i¥368,000200111-200311

sub11400-28061¥368,000

main11400-28150i¥368,000200408

main11400-28230i¥369,000200311-200408

sub11400-28060¥368,000

1 parts on this diagram · 1 diagram in section
