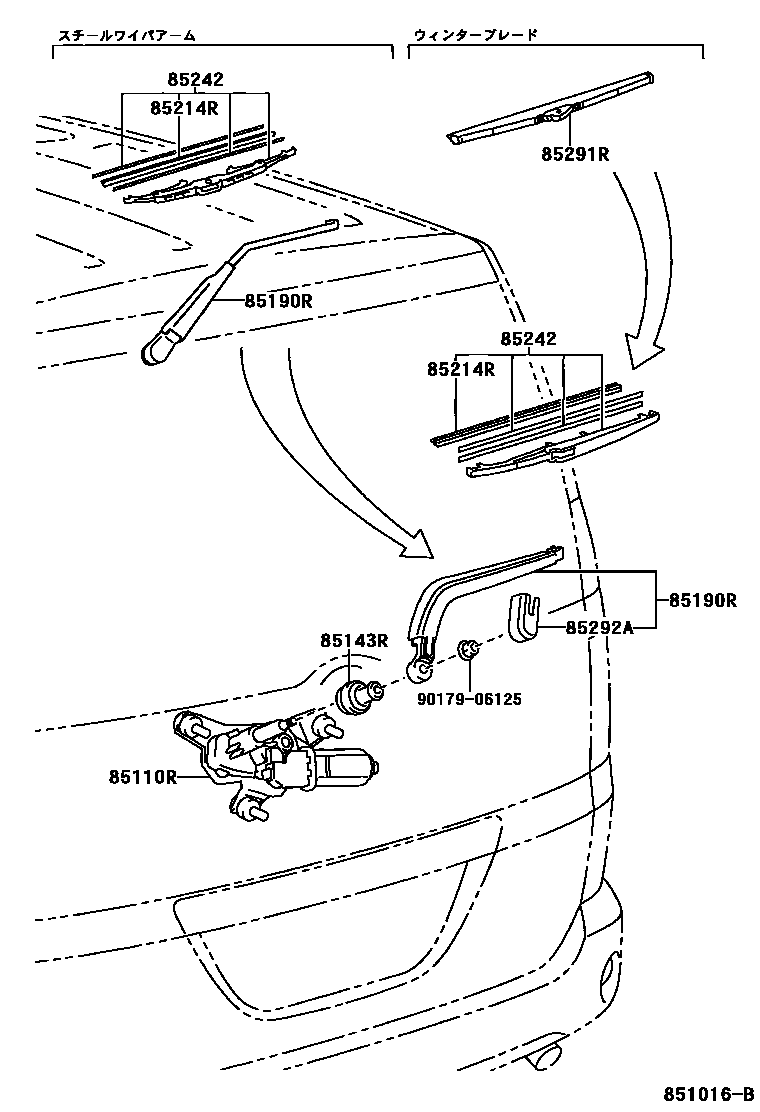

Toyota NOAH/VOXY — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-28070iAZR6#¥22,900200408

main85130-28070iAZR6#¥22,900200111-200408

85143RGROMMET, REAR WIPER MOTOR

main85143-60110iAZR6#¥260200111-200408

main85143-60110iAZR6#¥260200408

85190RARM ASSY, REAR WIPER

main85241-28080iAZR6#¥3,360200408-200705

sub85241-28081¥3,360

main85241-28080iAZR6#¥3,360200111-200408

sub85241-28081¥3,360

main85241-60070iAZR6#¥3,160200203-200408

��-� ���� �-�

main85241-60070iAZR6#¥3,160200408-200705

�X�`�[���@���C�p�@�A�[��

85214RRUBBER, REAR WIPER

main85214-10100iAZR6#¥650200111-200408

main85214-10100iAZR6#¥650200408

85242BLADE, RR WIPER

main85242-28060iAZR6#¥2,090200111-200408

main85242-28060iAZR6#¥2,090200408

main85242-60050iAZR6#¥2,090200203-200408

��(��-� ���� �-�)

main85242-60050iAZR6#¥2,090200408

�A���i�X�`�[�����C�p�A�[���j

85291RBLADE,REAR WIPER, WINTER

main85291-44080iAZR6#¥3,600200408-200706

�A���i�X�`�[�����C�p�A�[���j

main85291-44100iAZR6#¥3,600200408-200706

main85291-44100iAZR6#¥3,600200111-200408

main85291-60060iAZR6#¥3,960200203-200408

��(��-� ���� �-�)

sub85291-44080¥3,600

85292ACAP, REAR WIPER ARM HEAD

main85292-28040iAZR6#¥430200408-200705

main85292-28040iAZR6#¥430200111-200408

9017906125

main90179-06125¥120

8 parts on this diagram · 1 diagram in section
