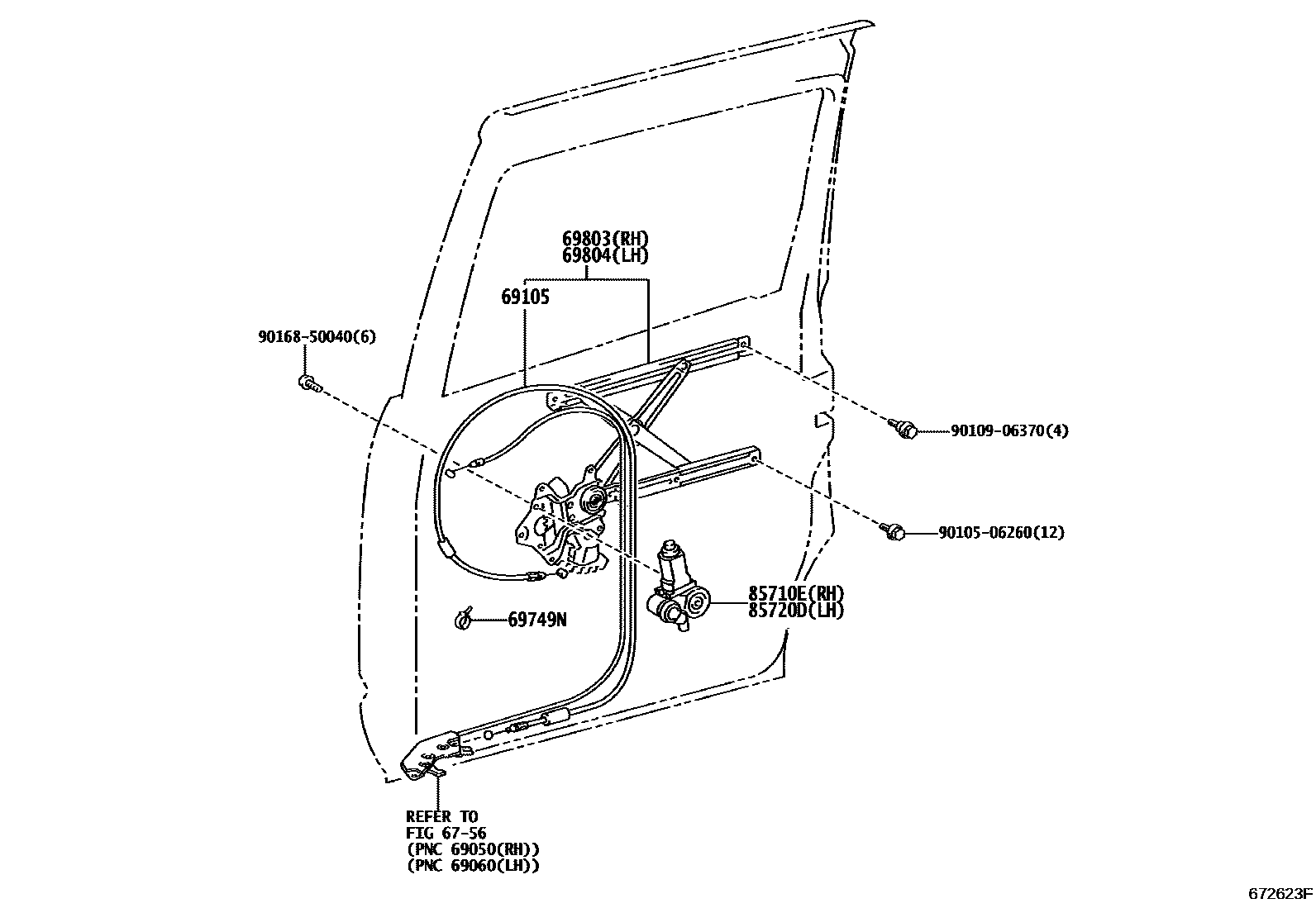

Toyota NOAH/VOXY — REAR DOOR WINDOW REGULATOR & HINGE

6756

69105CABLE SUB-ASSY, SLIDE DOOR HALF STOP CONTROL

main69105-28030iAZR6#¥2,790200111-200706

69749NCLAMP, DOOR LOCK WIRE HARNESS CONNECTOR

main69749-32020iAZR6#¥110200111-200408

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-28020iAZR6#¥6,800200111-200408

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-28070iAZR6#¥6,800200111-200408

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-20380iAZR6#¥33,300200408

main85710-28091iAZR6#¥33,300200111-200408

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-20400iAZR6#¥33,300200408

main85720-28091iAZR6#¥33,300200111-200408

9010506260

main90105-06260¥60

9010906370

main90109-06370¥90

9016850040

main90168-50040¥70

10 parts on this diagram · 1 diagram in section
