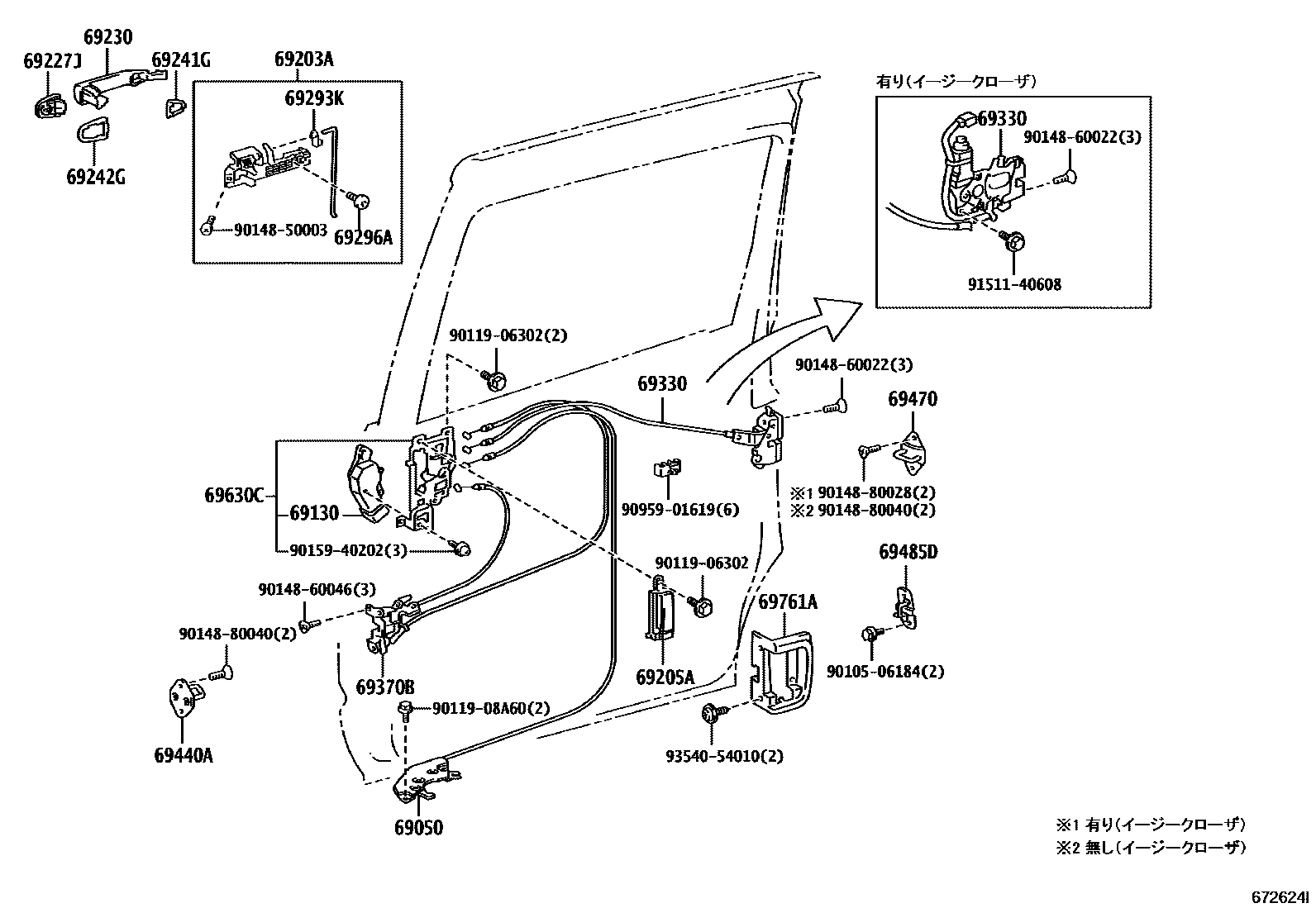

Toyota NOAH/VOXY — REAR DOOR LOCK & HANDLE

0001 1RH DOOR 0002 1LH DOOR 0003 1

69050LOCK ASSY, SLIDE DOOR FULL OPEN STOP, RH

main69050-28020iAZR6#¥7,700200111-200706

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-58010iAZR6#¥9,700200111-200706

main69130-58020iAZR6#¥8,700200408-200706

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-28010iAZR6#¥5,300200111-200408

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69207-28020-B0iAZR6#..S,X,Z200111-200408

sub69281-58020¥5,100

main69207-28020-B1iAZR6#..S,X,Z200111-200706

sub69281-58020¥5,100

main69207-28020-B1iAZR6#..4HC..Z200308-200407

sub69281-58020¥5,100

main69207-28020-B1iAZR6#..S,X,Z200111-200408

sub69281-58020¥5,100

main69207-28020-B1iAZR6#..08S..X200408-200706

sub69281-58020¥5,100

main69207-28020-B2iAZR6#..08S..X200408-200706

sub69281-58020¥5,100

main69207-28020-E0iAZR6#..NOAH..(L,X)200111-200706

sub69281-58020¥5,100

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-28050-A0iAZR6#..L,V,X200111-200706

SUPER WHITE 2,040

sub69227-28050¥740

main69227-28050-A1iAZR6#200111-200706

WHITE PM.,042

sub69227-28050¥740

main69227-28050-B0iAZR6#200111-200706

SILVER ME.,1D4

sub69227-28050¥740

main69227-28050-B1iAZR6#..07S,08S200111-200706

DARK GRAY M.M.,1E2

sub69227-28050¥740

main69227-28050-C1iAZR6#..05S200408-200706

BLACK,202

sub69227-28050¥740

main69227-28050-D0iAZR6#..VOXY..(V,X)200111-200706

BORDEAUX MC.,3P2

sub69227-28050¥740

main69227-28050-D1iAZR6#..L,V,X200111-200408

LT.ROSE M.M.,3Q1

sub69227-28050¥740

main69227-28050-D4iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

sub69227-28050¥740

main69227-28050-E1iAZR6#..X200408-200706

BEIGE ME.,4R4

sub69227-28050¥740

main69227-28050-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

sub69227-28050¥740

main69227-28050-J0iAZR6#200111-200408

DARK BLUE MC,8Q7

sub69227-28050¥740

main69227-28050-J6iAZR6#..NOAH..4HC..X200304-200308

sub69227-28050¥740

main69227-28050-J6iAZR6#..NOAH..4HC..X200308-200407

sub69227-28050¥740

main69227-28050-R0iAZR6#..S,TRASX,X,Z200408-200706

DARK BLUE MC.,8P8

sub69227-28050¥740

main69227-58010iAZR6#..NOAH..4HC..X¥980200207-200308

main69227-58010iAZR6#..4HC..Z¥980200301-200306

main69227-58010iAZR6#..NOAH..4HC..X¥980200207-200308

main69227-58010iAZR6#..NOAH..4HC..X¥980200212-200308

main69227-58010iAZR60..VOXY..X¥980200404-200405

main69227-58010iAZR6#..4HC..Z¥980200308-200407

main69227-58010iAZR6#..NOAH..08S..X¥980200607-200705

main69227-58010iAZR6#..Z;AZR6#..NOAH..08S..X¥980200504

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69213-28010-A0iAZR6#..X200111-200706

SUPER WHITE 2,040

sub69213-28010¥2,580

main69213-28010-A1iAZR6#200111-200706

WHITE PM.,042

sub69213-28010¥2,580

main69213-28010-B0iAZR6#200111-200706

SILVER ME.,1D4

sub69213-28010¥2,580

main69213-28010-B1iAZR6#..07S,08S200111-200706

DARK GRAY M.M.,1E2

sub69213-28010¥2,580

main69213-28010-C1iAZR6#..05S200408-200706

BLACK,202

sub69213-28010¥2,580

main69213-28010-D0iAZR6#..VOXY..(V,X)200111-200706

BORDEAUX MC.,3P2

sub69213-28010¥2,580

main69213-28010-D1iAZR6#..L,V,X200111-200408

LT.ROSE M.M.,3Q1

sub69213-28010¥2,580

main69213-28010-D4iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

sub69213-28010¥2,580

main69213-28010-E1iAZR6#..X200408-200706

BEIGE ME.,4R4

sub69213-28010¥2,580

main69213-28010-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

sub69213-28010¥2,580

main69213-28010-J0iAZR6#200111-200408

DARK BLUE MC,8Q7

sub69213-28010¥2,580

main69213-28010-J6iAZR6#..NOAH..4HC..X200304-200308

sub69213-28010¥2,580

main69213-28010-J6iAZR6#..NOAH..4HC..X200308-200407

sub69213-28010¥2,580

main69213-28010-R0iAZR6#..S,TRASX,X,Z200408-200706

DARK BLUE MC.,8P8

sub69213-28010¥2,580

main69230-58010iAZR6#..NOAH..08S..X¥2,160200607-200705

main69230-58010iAZR6#..NOAH..4HC..X¥2,160200207-200308

main69230-58010iAZR6#..4HC..Z¥2,160200207-200308

main69230-58010iAZR6#..4HC..Z¥2,160200301-200306

main69230-58010iAZR6#..Z;AZR6#..NOAH..08S..X¥2,160200504

main69230-58010iAZR6#..4HC..Z¥2,160200308-200407

main69230-58010iAZR60..VOXY..X¥2,160200404-200405

main69230-58010iAZR6#..NOAH..4HC..X¥2,160200212-200308

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-28060iAZR6#¥450200111-200408

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-28020iAZR6#¥540200111-200209

main69242-60030iAZR6#¥450200210-200408

69293KSNAP, REAR DOOR OUTSIDE HANDLE, RH

main69293-12040iAZR6#¥160200111-200408

69296ASCREW, DOOR INSIDE HANDLE

main69296-48010iAZR6#¥130200111-200706

69330LOCK ASSY, REAR DOOR, RH

main69200-28020iAZR6#¥39,200200111-200404

sub69200-28021¥32,300

main69200-28021iAZR6#¥32,300200404-200503

sub69200-28022¥32,300

main69200-28022iAZR6#¥32,300200504-200608

sub69200-28023¥32,300

main69200-28023iAZR6#¥32,300200609

main69200-28030iAZR6#¥39,200200111-200404

sub69200-28031¥32,300

main69200-28031iAZR6#¥32,300200404-200503

sub69200-28032¥32,300

main69200-28032iAZR6#¥32,300200504-200608

sub69200-28033¥32,300

main69200-28033iAZR6#¥32,300200609

main69330-28070iAZR6#..S,X,Z¥7,700200111-200503

sub69330-28071¥7,700

main69330-28071iAZR6#..(05S,08S)..(TRASX,X,YY)¥7,700200504-200608

sub69330-28072¥7,700

main69330-28072iAZR6#..(05S,08S)..(TRASX,X,YY)¥7,700200609

main69330-28080iAZR6#..S,X,Z¥7,700200111-200503

sub69330-28081¥7,700

main69330-28081iAZR6#..(05S,08S)..(TRASX,X,YY)¥7,700200504-200608

sub69330-28082¥7,700

main69330-28082iAZR6#..(05S,08S)..(TRASX,X,YY)¥7,700200609

69370BLOCK ASSY, SLIDE DOOR, FRONT RH

main69370-28070iAZR6#¥6,800200111-200503

sub69370-28071¥6,800

main69370-28071iAZR6#¥6,800200504

main69370-28080iAZR6#¥6,800200111-200503

sub69370-28081¥6,800

main69370-28081iAZR6#¥6,800200504

69440APLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER

main69440-28050iAZR6#¥1,120200111-200601

main69440-58011iAZR6#¥1,480200602

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-28100iAZR6#..S,X,Z¥1,050200111-200207

main69470-28110iAZR6#¥1,680200111-200207

main69470-28120iAZR6#..S,X,Z¥1,160200208-200408

main69470-28130iAZR6#¥1,680200208-200408

69485DSTRIKER, SLIDE DOOR OPEN, RH

main69485-28020iAZR6#¥1,860200111-200408

69630CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, RH

main69630-28130iAZR6#¥13,400200111-200408

main69630-58020iAZR6#¥15,400200408

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-28020-B0iAZR6#..S,X,Z200111-200408

main69761-28020-B1iAZR6#..L,V200111-200706

DK.GRAY,TRIM1#

main69761-28020-B1iAZR6#..4HC..Z200308-200407

main69761-28020-B1iAZR6#..L,V200111-200408

main69761-28020-B1iAZR6#..S,Z;AZR6#..05S,07S200408-200706

main69761-28020-B2iAZR6#..08S..X200408-200706

main69761-28020-E0iAZR6#..NOAH..X200111-200706

FAWN,TRIM4#

9010506184

main90105-06184¥70

9011906302

main90119-06302¥120

9011908A60

main90119-08A60¥110

9014850003

main90148-50003¥60

9014860022

main90148-60022¥60

9014860046

main90148-60046¥110

9014880028

main90148-80028¥60

9014880040

main90148-80040¥70

9015940202

main90159-40202¥60

9095901619

main90959-01619¥140

9151140608

main91511-40608¥120

9354054010

main93540-54010¥120
