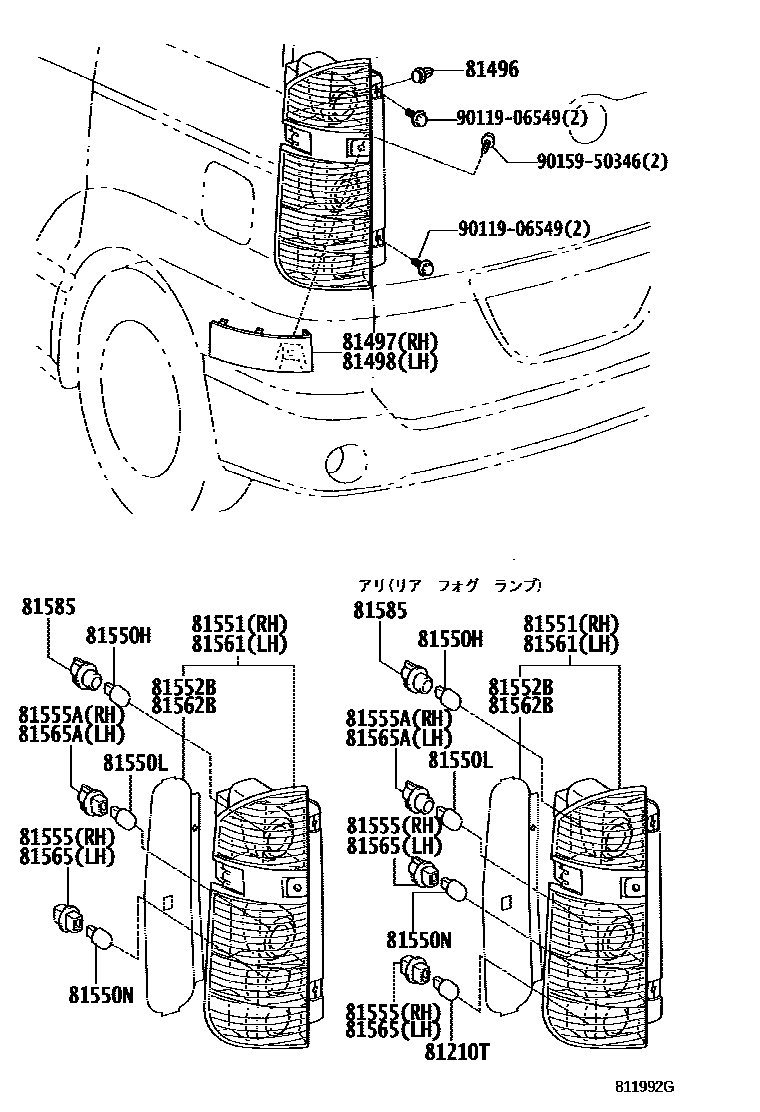

Toyota NOAH/VOXY — REAR COMBINATION LAMP

0001 1 0002 1 0003 1 0004 1

81210TBULB, REAR FOG LAMP

main90981-11059iAZR6#¥200200111-200408

81496GUIDE, REAR COMBINATION LAMP

main81496-28010iAZR6#¥200200111-200408

81497COVER, REAR COMBINATION LAMP, RH

main81497-28040-A0iAZR6#..X200111-200706

SUPER WHITE 2,040

main81497-28040-A1iAZR6#200111-200706

WHITE PM.,042

main81497-28040-B0iAZR6#200111-200706

SILVER ME.,1D4

main81497-28040-B1iAZR6#200111-200706

DARK GRAY M.M.,1E2

main81497-28040-B2iAZR6#..Z200308-200407

main81497-28040-B2iAZR6#..Z200504

main81497-28040-C0iAZR6#..4HC..Z200207-200308

main81497-28040-C0iAZR6#..4HC..Z200207-200308

main81497-28040-C0iAZR60..VOXY..X200404-200405

main81497-28040-C0iAZR6#..Z200308-200407

main81497-28040-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

main81497-28040-C0iAZR6#..05S200408-200706

BLACK,202

main81497-28040-C0iAZR6#..Z200504

main81497-28040-C0iAZR6#..Z200504

LIMITED *(P),BLACK,202

main81497-28040-C0iAZR6#..4HC..Z200301-200306

main81497-28040-D0iAZR6#..4HC..Z200207-200308

main81497-28040-D0iAZR6#..VOXY..X200111-200706

BORDEAUX MC.,3P2

main81497-28040-D1iAZR6#..L,V,X200111-200408

LT.ROSE M.M.,3Q1

main81497-28040-D2iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

main81497-28040-E0iAZR6#..X200408-200706

BEIGE ME.,4R4

main81497-28040-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

main81497-28040-J0iAZR6#200111-200408

DARK BLUE MC,8Q7

main81497-28040-J1iAZR6#..NOAH..X200304-200408

main81497-28040-J2iAZR6#..S,TRASX,X,Z200408-200706

DARK BLUE MC.,8P8

main81497-28040-J3iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE M.M,8K2

main81497-28040-J3iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M,8K2

81498COVER, REAR COMBINATION LAMP, LH

main81498-28040-A0iAZR6#..X200111-200706

SUPER WHITE 2,040

main81498-28040-A1iAZR6#200111-200706

WHITE PM.,042

main81498-28040-B0iAZR6#200111-200706

SILVER ME.,1D4

main81498-28040-B1iAZR6#..07S,08S200111-200706

DARK GRAY M.M.,1E2

main81498-28040-B2iAZR6#..Z200504

main81498-28040-B2iAZR6#..Z200308-200407

main81498-28040-C0iAZR6#..NOAH..08S..X200504

LIMITED *(P),BLACK,202

main81498-28040-C0iAZR6#..4HC..Z200301-200306

main81498-28040-C0iAZR6#..NOAH..4HC..X200207-200308

main81498-28040-C0iAZR6#..NOAH..4HC..X200207-200308

main81498-28040-C0iAZR60..VOXY..X200404-200405

main81498-28040-C0iAZR6#..Z200308-200407

main81498-28040-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

main81498-28040-C0iAZR6#..05S200408-200706

BLACK,202

main81498-28040-C0iAZR6#..Z200504

main81498-28040-D0iAZR6#..4HC..Z200207-200308

main81498-28040-D0iAZR6#..VOXY..(V,X)200111-200706

BORDEAUX MC.,3P2

main81498-28040-D1iAZR6#..L,V,X200111-200408

LT.ROSE M.M.,3Q1

main81498-28040-D2iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

main81498-28040-E0iAZR6#..X200408-200706

BEIGE ME.,4R4

main81498-28040-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

main81498-28040-J0iAZR6#200111-200408

DARK BLUE MC,8Q7

main81498-28040-J1iAZR6#..NOAH..X200304-200408

main81498-28040-J2iAZR6#..S,TRASX,X,Z200408-200706

DARK BLUE MC.,8P8

main81498-28040-J3iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE M.M,8K2

main81498-28040-J3iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M.,8K2

81550HBULB, TAIL & STOP LAMP

main90981-11048iAZR6#¥230200111-200408

sub90981-13044¥230

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iAZR6#¥220200111-200408

main90981-15011iAZR6#¥300200408-200706

81550NBULB, BACK UP LAMP

main90981-11059iAZR6#¥200200111-200706

81551LENS, REAR COMBINATION LAMP, RH

main81551-28240iAZR6#..NOAH¥25,800200111-200408

main81551-28310iAZR6#..VOXY¥25,800200111-200408

main81551-28320iAZR6#..NOAH¥25,800200111-200408

main81551-28330iAZR6#..VOXY¥25,800200111-200408

main81551-28340iAZR6#..NOAH¥25,500200408-200602

sub81551-28450¥25,500

main81551-28350iAZR6#..VOXY¥27,300200408-200602

sub81551-28460¥27,300

main81551-28450iAZR6#..NOAH¥25,500200602

main81551-28460iAZR6#..VOXY¥27,300200602

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-28340iAZR6#..NOAH¥1,610200408

main81554-28350iAZR6#..VOXY¥1,610200408

81552BPACKING, REAR COMBINATION LAMP BODY, RH

main81552-28240iAZR6#¥1,030200111-200408

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28240iAZR6#¥1,090200111-200408

main81555-28340iAZR6#..NOAH¥2,470200408

main81555-28350iAZR6#..VOXY¥2,470200408

81555ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-3A030iAZR6#¥1,070200111-200408

81561LENS, REAR COMBINATION LAMP, LH

main81561-28240iAZR6#..NOAH¥25,800200111-200408

main81561-28310iAZR6#..VOXY¥25,800200111-200408

main81561-28320iAZR6#..NOAH¥25,800200111-200408

main81561-28330iAZR6#..VOXY¥25,800200111-200408

main81561-28340iAZR6#..NOAH¥25,500200408-200602

sub81561-28450¥25,500

main81561-28350iAZR6#..VOXY¥27,300200408-200602

sub81561-28460¥27,300

main81561-28450iAZR6#..NOAH¥25,500200602

main81561-28460iAZR6#..VOXY¥27,300200602

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81562-28340iAZR6#..NOAH¥1,610200408

main81564-28350iAZR6#..VOXY¥1,610200408

81562BPACKING, REAR COMBINATION LAMP BODY, LH

main81562-28240iAZR6#¥1,030200111-200408

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28240iAZR6#¥1,090200111-200408

main81555-28340iAZR6#..NOAH¥2,470200408

main81555-28350iAZR6#..VOXY¥2,470200408

81565ASOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-3A030iAZR6#¥1,070200111-200408

81585SOCKET & WIRE, REAR LAMP

main81585-30290iAZR6#..VOXY¥740200111-200408

9011906549

main90119-06549¥120

9015950346

main90159-50346¥60

20 parts on this diagram · 4 diagrams in section
