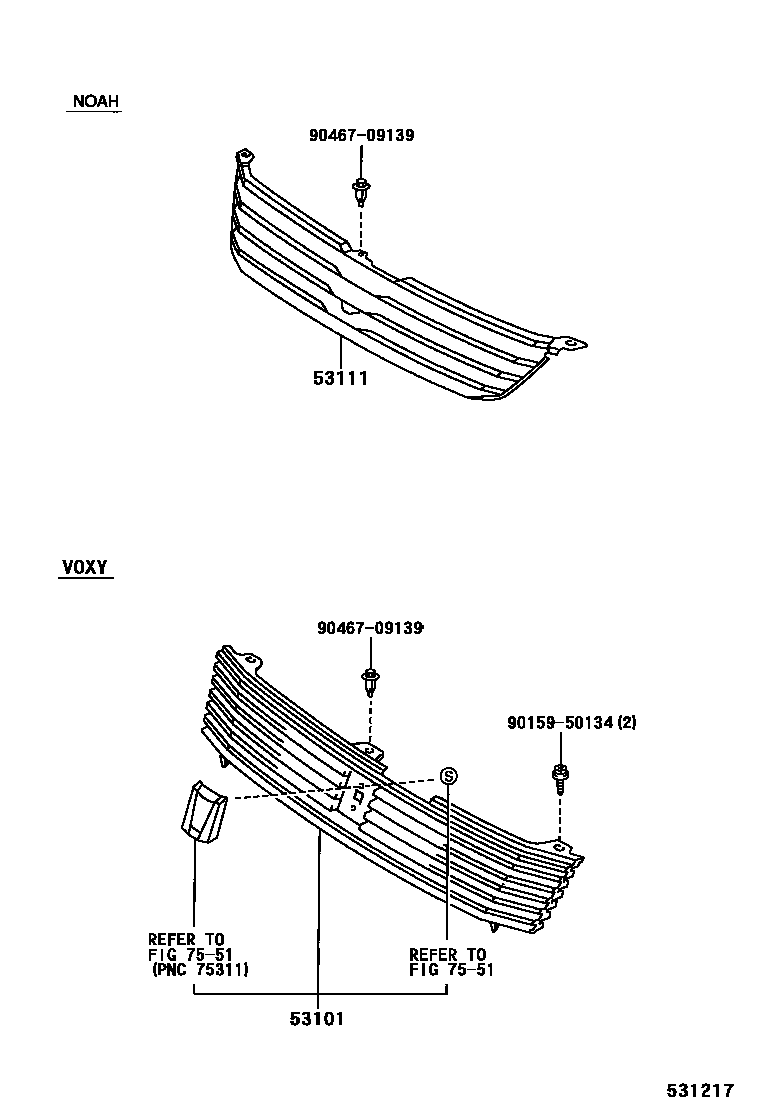

Toyota NOAH/VOXY — RADIATOR GRILLE

0001 1 0002 1 0003 1

53101GRILLE SUB-ASSY, RADIATOR

main53101-28130iAZR6#..VOXY¥18,800200111-200408

main53101-28140iAZR6#..VOXY¥18,800200111-200408

��(������� �-� ���-)

main53101-28150iAZR6#..4HC..Z¥23,000200207-200308

���� *(A),������������� *(B)

main53101-28150iAZR6#..4HC..Z¥23,000200308-200407

���� 2 *(E),���� 2 ��������� *(F)

main53101-28190iAZR6#..4HC..Z¥22,900200308-200407

��(������� �-� ���-);���� 2 *(E),���� 2 ��������� *(F)

53111GRILLE, RADIATOR

main53111-28270-A0iAZR6#..NOAH..(L,X)200111-200408

SUPER WHITE 2,040

sub53111-28830¥20,300

main53111-28270-A1iAZR6#..NOAH200111-200408

WHITE PM.,042

sub53111-28830¥20,300

main53111-28270-B0iAZR6#..NOAH200111-200408

SILVER ME.,1D4

sub53111-28830¥20,300

main53111-28270-B1iAZR6#..NOAH200111-200408

DARK GRAY M.M.,1E2

sub53111-28830¥20,300

main53111-28270-C0iAZR6#..NOAH..4HC..X200212-200308

X-S������� *(B),BLACK,202

sub53111-28830¥20,300

main53111-28270-D0iAZR6#..NOAH..(L,X)200111-200408

LT.ROSE M.M.,3Q1

sub53111-28830¥20,300

main53111-28270-F0iAZR6#..NOAH..(L,X)200111-200408

YELLOW PM,591

sub53111-28830¥20,300

main53111-28270-J0iAZR6#..NOAH200111-200408

DARK BLUE MC,8Q7

sub53111-28830¥20,300

main53111-28300-A0iAZR6#..NOAH..(L,X)200111-200408

��(������� �-� ���-),SUPER WHITE 2,040

sub53111-28840¥20,300

main53111-28300-A1iAZR6#..NOAH200111-200408

��(������� �-� ���-),WHITE PM.,042

sub53111-28840¥20,300

main53111-28300-B0iAZR6#..NOAH200111-200408

��(������� �-� ���-),SILVER ME.,1D4

sub53111-28840¥20,300

main53111-28300-B1iAZR6#..NOAH200111-200408

��(������� �-� ���-),DARK GRAY M.M.,1E2

sub53111-28840¥20,300

main53111-28300-D0iAZR6#..NOAH..(L,X)200111-200408

��(������� �-� ���-),LT.ROSE M.M.,3Q1

sub53111-28840¥20,300

main53111-28300-F0iAZR6#..NOAH..(L,X)200111-200408

��(������� �-� ���-),YELLOW PM,591

sub53111-28840¥20,300

main53111-28300-J0iAZR6#..NOAH200111-200408

��(������� �-� ���-),DARK BLUE MC,8Q7

sub53111-28840¥20,300

main53111-28300-J1iAZR6#..NOAH..4HC..X200308-200407

���� ������� *(D),BLUE ME.,8N0

sub53111-28840¥20,300

main53111-28300-J1iAZR6#..NOAH..4HC..X200304-200308

���� ������� *(C),BLUE ME.,8N0

sub53111-28840¥20,300

main53111-28310iAZR6#..NOAH..4HC..X¥24,600200207-200308

��������� *(A),��� & ���- �����

main53111-28380-A0iAZR6#..NOAH..X200408-200706

SUPER WHITE 2,040

sub53111-28810¥20,300

main53111-28380-A1iAZR6#..NOAH..(X,YY)200408-200706

WHITE PM.,042

sub53111-28810¥20,300

main53111-28380-B0iAZR6#..NOAH..(X,YY)200408-200706

SILVER ME.,1D4

sub53111-28810¥20,300

main53111-28380-B1iAZR6#..NOAH..X200408-200706

DARK GRAY M.M.,1E2

sub53111-28810¥20,300

main53111-28380-C0iAZR6#..YY200408-200706

BLACK,202

sub53111-28810¥20,300

main53111-28380-C0iAZR6#..NOAH..08S..X200504

LIMITED *(P),BLACK,202

sub53111-28810¥20,300

main53111-28380-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),BLACK,202

sub53111-28810¥20,300

main53111-28380-D0iAZR6#..NOAH..(X,YY)200408-200706

RED MC.,3M8

sub53111-28810¥20,300

main53111-28380-E0iAZR6#..NOAH..X200408-200706

BEIGE ME.,4R4

sub53111-28810¥20,300

main53111-28380-J0iAZR6#..NOAH..X200408-200706

DARK BLUE MC.,8P8

sub53111-28810¥20,300

main53111-28380-J1iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S),LT.PURPLISH BLUE MC.,8K2

sub53111-28810¥20,300

main53111-28380-J1iAZR6#..NOAH..08S..X200504

LIMITED *(P),LT.PURPLISH BLUE M.M.,8K2

sub53111-28810¥20,300

main53111-28390-A0iAZR6#..NOAH..X200408-200706

��(������� �-� ���-),SUPER WHITE 2,040

sub53111-28820¥20,300

main53111-28390-A1iAZR6#..NOAH..(X,YY)200408-200706

��(������� �-� ���-),WHITE PM.,042

sub53111-28820¥20,300

main53111-28390-B0iAZR6#..NOAH..(X,YY)200408-200706

��(������� �-� ���-),SILVER ME.,1D4

sub53111-28820¥20,300

main53111-28390-B1iAZR6#..NOAH..X200408-200706

��(������� �-� ���-),DARK GRAY M.M.,1E2

sub53111-28820¥20,300

main53111-28390-C0iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S) & ��(������� �-� ���-),BLACK,202

sub53111-28820¥20,300

main53111-28390-C0iAZR6#..YY200408-200706

��(������� �-� ���-),BLACK,202

sub53111-28820¥20,300

main53111-28390-C0iAZR6#..NOAH..08S..X200504

LIMITED *(P) & ��(������� �-� ���-),BLACK,202

sub53111-28820¥20,300

main53111-28390-D0iAZR6#..NOAH..(X,YY)200408-200706

��(������� �-� ���-),RED MC.,3M8

sub53111-28820¥20,300

main53111-28390-E0iAZR6#..NOAH..X200408-200706

��(������� �-� ���-),BEIGE ME.,4R4

sub53111-28820¥20,300

main53111-28390-J0iAZR6#..NOAH..X200408-200706

��(������� �-� ���-),DARK BLUE MC.,8P8

sub53111-28820¥20,300

main53111-28390-J2iAZR6#..NOAH..08S..X200607-200705

SPECIAL EDITION *(S) & ��(������� �-� ���-),LT.PURPLISH BLUE MC.,8K2

sub53111-28820¥20,300

main53111-28390-J2iAZR6#..NOAH..08S..X200504

LIMITED *(P) & ��(������� �-� ���-),LT.PURPLISH BLUE M.M.,8K2

sub53111-28820¥20,300

main53111-28400iAZR6#..VOXY..(TRASX,X)¥18,800200408-200706

main53111-28410iAZR6#..VOXY..(TRASX,X)¥18,800200408-200706

��(������� �-� ���-)

sub53111-28500¥18,800

main53111-28420iAZR6#..Z¥18,800200408-200706

main53111-28430iAZR6#..Z¥18,800200408-200706

��(������� �-� ���-)

sub53111-28500¥18,800

main53111-28490iAZR6#..Z¥18,800200504

���� *(A)

sub53111-28400¥18,800

main53111-28500iAZR6#..Z¥18,800200504

���� *(A) & ��(������� �-� ���-)

7551

9015950134

main90159-50134¥120

9046709139

main90467-09139¥240

5 parts on this diagram · 3 diagrams in section
