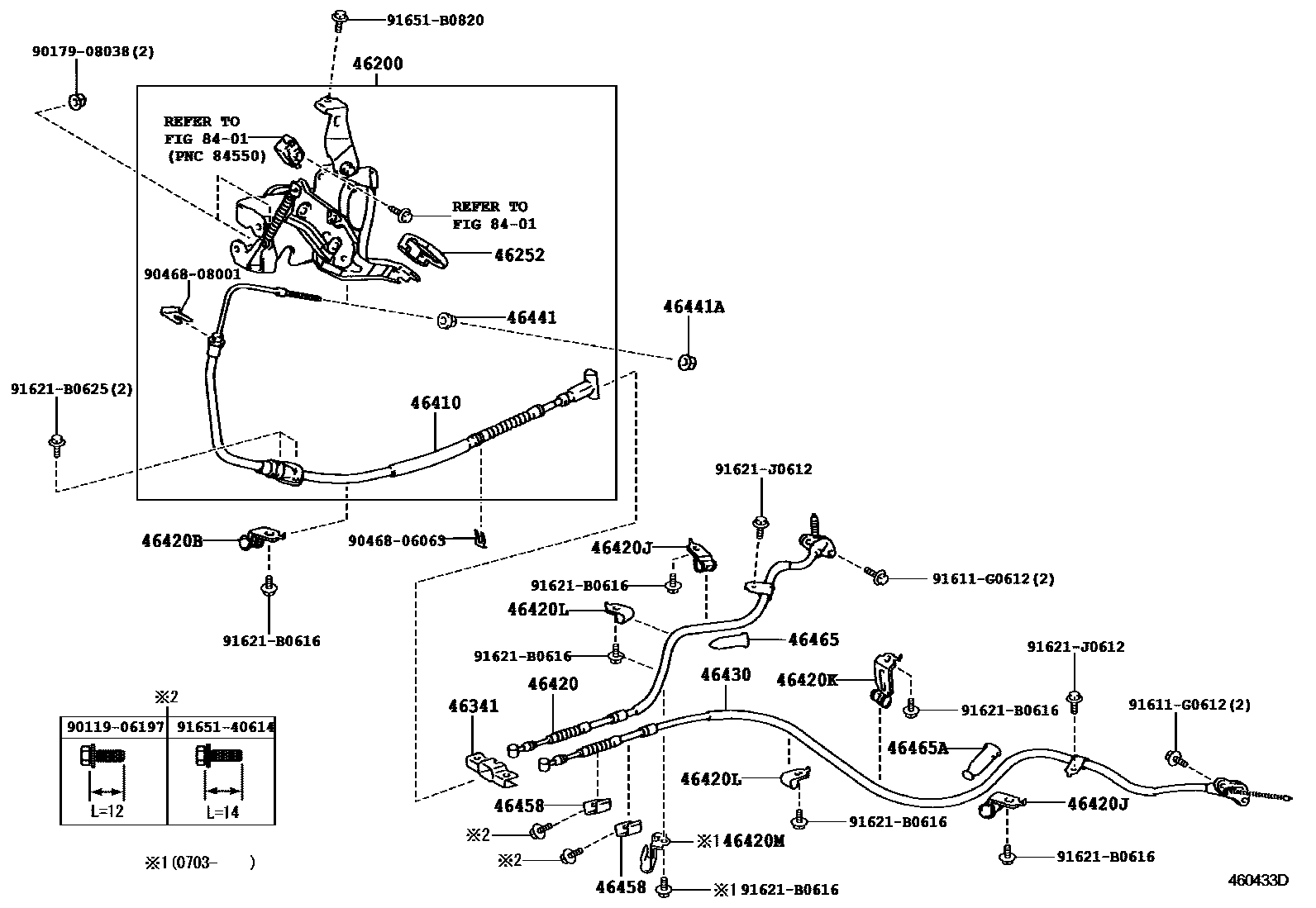

Toyota NOAH/VOXY — PARKING BRAKE & CABLE

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-28040iAZR6#¥22,500200111-200408

sub46210-28370¥22,500

sub46410-28250¥4,010

sub46441-12010¥160

sub90468-08001¥210

46252PAD, PARKING PEDAL

main46252-52010iAZR6#¥410200111-200408

46341EQUALIZER, PARKING BRAKE

main46341-12020iAZR6#¥360200111-200408

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28250iAZR6#¥4,010200111-200408

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28450iAZR6#¥5,800200111-200408

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01C86iAZR6#¥320200111-200408

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main90949-01C69iAZR6#¥320200111-200408

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main90949-01C87iAZR6#¥500200111-200408

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main90949-01C71iAZR6#¥320200111-200408

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46411-28030iAZR6#¥470200703

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28400iAZR6#¥6,800200111-200408

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iAZR6#¥160200111-200408

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iAZR6#¥70200111-200408

46458RETAINER, CABLE

main46458-28010iAZR6#¥190200111-200408

46465GUIDE, PARKING BRAKE CABLE, RH

main46465-44010iAZR6#¥810200111-200408

46465AGUIDE, PARKING BRAKE CABLE, LH

main46465-44020iAZR6#¥820200111-200408

sub46465-28030¥980

8401

9011906197

main90119-06197¥50

9017908038

main90179-08038¥130

9046806063

main90468-06063¥90

9046808001

main90468-08001¥210

91611G0612

main91611-G0612¥70

91621B0616

main91621-B0616¥100

91621B0625

main91621-B0625¥60

91621J0612

main91621-J0612¥70

9165140614

main91651-40614¥160

91651B0820

main91651-B0820¥160

27 parts on this diagram · 1 diagram in section
