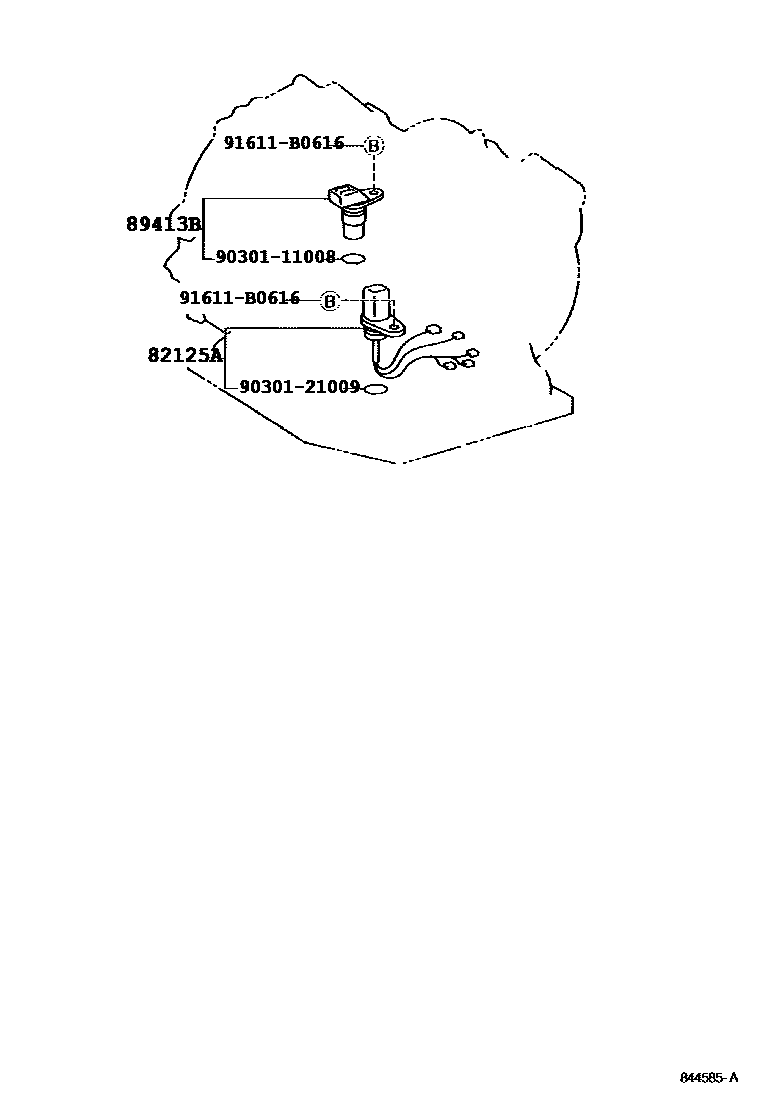

Toyota NOAH/VOXY — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1

82125AWIRE, TRANSMISSION

main82125-44010iAZR6#¥1,710200111-200408

main82125-44020iAZR6#¥1,900200408-200706

89413BSENSOR, TRANSMISSION REVOLUTION

main89413-20010iAZR6#¥6,100200111-200408

sub89413-20011¥4,970

main89413-60020iAZR6#¥5,300200408-200706

sub89413-60021¥4,010

9030111008

main90301-11008¥160

9030121009

main90301-21009¥170

91611B0616

main91611-B0616¥110

5 parts on this diagram · 2 diagrams in section
