Toyota NOAH/VOXY — LOCK CYLINDER SET

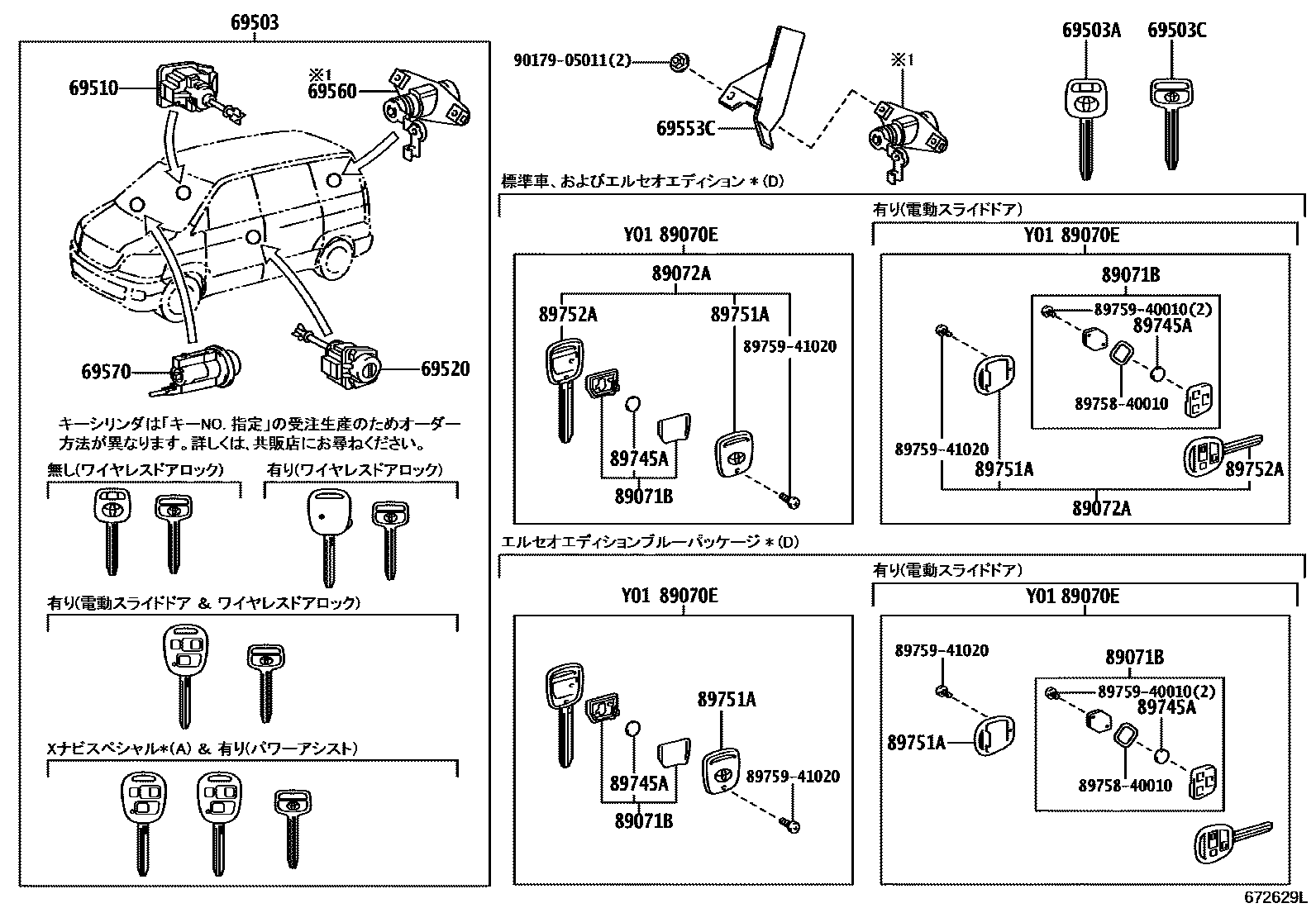

Parts diagram

69503CYLINDER SET, LOCK

main69005-28740i¥19,200200111-200408

main69005-28750i¥19,200200111-200408

main69005-28760i¥16,700200111-200408

main69005-28880i¥22,900200212-200308

main69005-28A60i¥16,600200408-200701

sub69005-28A61¥16,600

sub8907A-28010¥980

sub89751-28070¥940

main69005-28A61i¥16,600200702

main69005-28A70i¥16,600200408-200701

sub69005-28A71¥16,600

sub8907A-28030¥1,220

sub89751-28070¥940

main69005-28A71i¥16,600200702

main69005-28A80i¥14,100200408

main69005-28B30i¥16,600200408-200701

sub69005-28B31¥16,600

sub8907A-28020¥1,530

sub89751-28070¥940

main69005-28B31i¥16,600200702

sub69005-28B10¥20,100

main69005-28B40i¥23,300200408-200701

sub69005-28B41¥23,300

sub8907A-28020¥1,530

sub89751-28070¥940

main69005-28B41i¥23,300200702

main69005-28B70i¥20,100200504

69503AKEY, BLANK

main90999-00199i¥2,140200111-200408

69503CKEY, SUB

main90999-00186i¥1,430200111-200408

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-28140i¥9,300200111-200408

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-28100i¥9,300200111-200408

69553CPROTECTOR, BACK DOOR KEY CYLINDER

main69553-28010i¥370200111-200408

69560CYLINDER ASSY, BACK DOOR LOCK

main69560-28100i¥9,000200111-200408

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-44040i¥12,000200111-200408

sub69570-44050¥12,000

main69570-44050i¥12,000200408-200701

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-12350i¥12,100200702

main89070-26160i¥15,500200408-200702

sub89070-26250¥15,500

main89070-26250i¥15,500200702

main89070-28320i¥19,400200111-200408

main89070-28320i¥19,400200308-200407

main89070-28570i¥19,400200308-200407

main89070-28580i¥16,000200308-200407

main89070-28610i¥12,100200408-200702

sub89070-12350¥12,100

main89070-28620i¥19,000200408-200702

sub89070-28A20¥19,000

sub89070-28A60¥19,000

main89070-28A60i¥19,000200702

main89070-44070i¥13,300200111-200408

main89070-44070i¥13,300200308-200407

main89070-44210i¥21,600200408-200702

sub89070-52B10¥21,600

sub89070-58330¥21,600

main89070-58330i¥21,600200702

89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-12021i¥13,000200111-200408

main89071-26030i¥12,100200408

main89071-28010i¥16,500200111-200408

main89071-28150i¥8,700200408

main89071-44010i¥15,500200408

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-12100i¥3,890200408-200706

main89072-26070i¥4,050200408-200706

main89072-28310i¥6,800200408-200706

main89072-28440i¥4,240200408-200706

main89072-47020i¥3,690200111-200408

sub04873-47010¥3,690

main89072-58090i¥3,860200111-200408

sub04873-58020¥3,860

89745ABATTERY, TRANSMITTER

main89745-26010i¥440200111-200408

sub89745-41010¥440

main89745-40010i¥440200111-200408

main89745-48030i¥440200408-200706

sub89745-71010¥440

89751ACOVER, TRANSMITTER HOUSING

main89751-26010i¥940200408-200702

main89751-28040i¥940200308-200407

main89751-28050i¥940200308-200407

main89751-28070i¥940200702-200706

main89751-44010i¥940200111-200408

main89751-44010i¥940200308-200407

main89751-50010i¥940200111-200408

sub89751-50011¥650

main89751-50011i¥650200308-200407

89752ACASE, TRANSMITTER HOUSING

main89752-12080i¥1,840200702-200706

main89752-22050i¥1,840200702-200706

main89752-28070i¥4,390200702-200706

sub89752-28071¥4,390

main89752-33020i¥2,920200111-200408

main89752-33160i¥1,840200702-200706

main89752-46020i¥2,760200111-200408

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010¥220

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010¥120

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020¥100

9017905011

main90179-05011¥80

18 parts on this diagram · 3 diagrams in section
