Toyota NOAH/VOXY — HORN

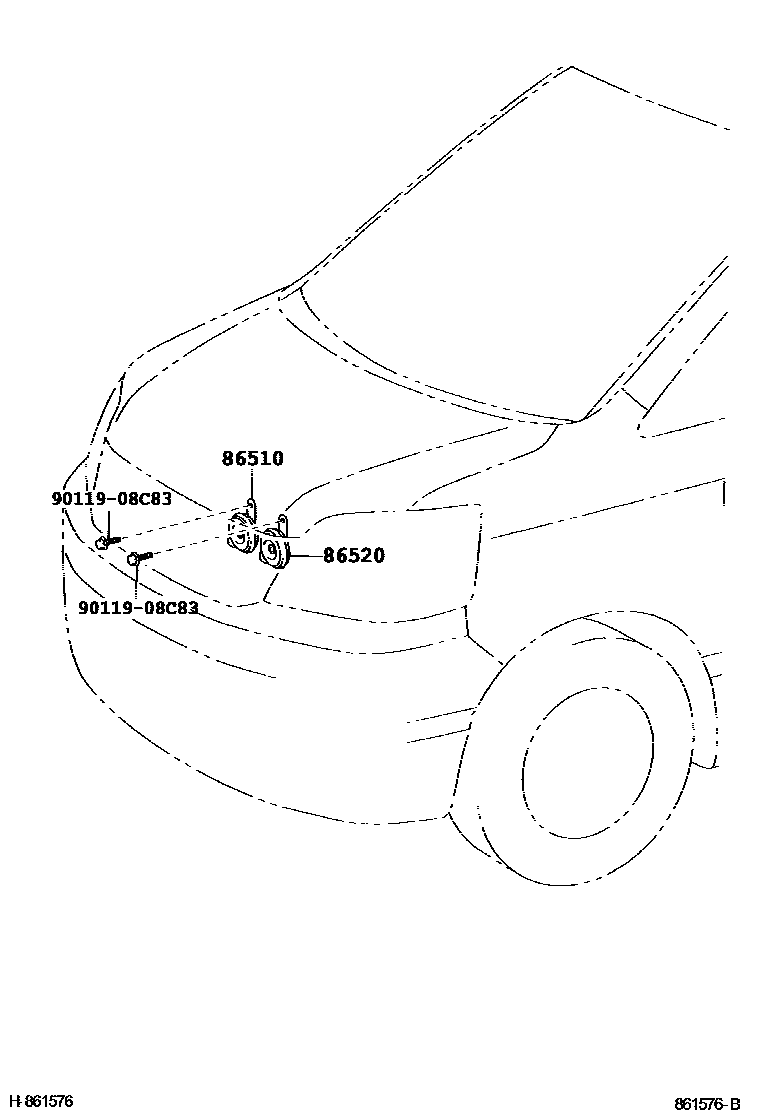

Parts diagram

86510HORN ASSY, HIGH PITCHED

main86510-28130i¥2,190200111-200408

main86510-28130i¥2,190200408

main86510-44010i¥3,490200111-200408

86520HORN ASSY, LOW PITCHED

main86520-28180i¥2,190200111-200408

main86520-28180i¥2,190200408

main86520-44010i¥3,490200111-200408

9011908C83

main90119-08C83¥80

3 parts on this diagram · 1 diagram in section
