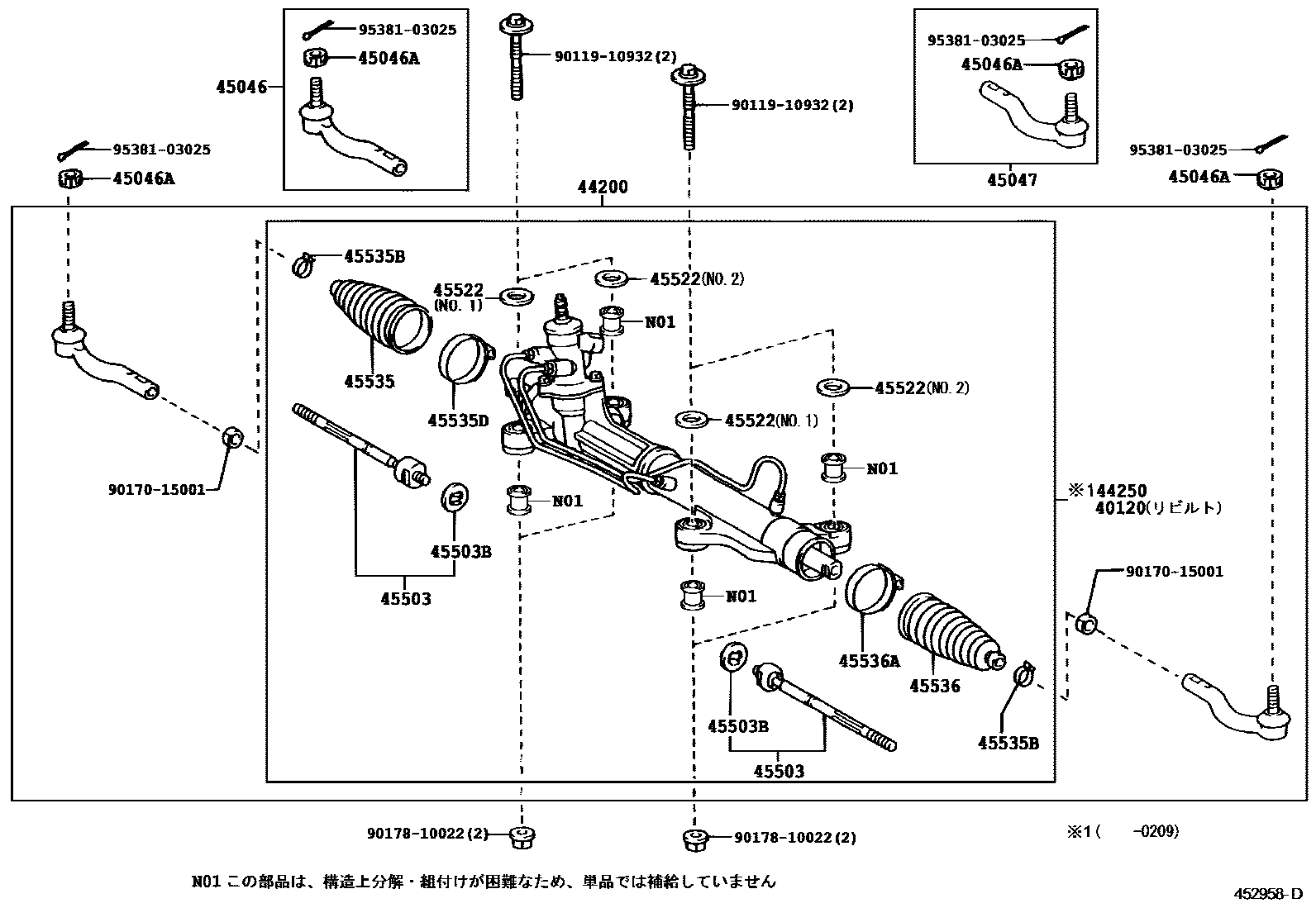

Toyota NOAH/VOXY — FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

40120GEAR ASSY,POWER STEERING,REBUILT

main40120-28510iAZR60¥75,100200111-200408

sub40120-28631¥80,400

main40120-28520iAZR65¥75,100200111-200408

sub40120-28521¥75,100

main40120-28630iAZR60¥80,400200408-200704

sub40120-28631¥80,400

main40120-28631iAZR60¥80,400200705

main40120-28643iAZR65¥80,400200408-200704

sub40120-28644¥80,400

main40120-28644iAZR65¥80,400200705

sub40120-28645¥80,400

44200LINK ASSY, POWER STEERING

main44200-28510iAZR60¥115,000200111-200408

sub44250-28510¥107,000

sub45046-49095¥3,880

sub45047-49025¥3,880

sub90170-15001¥130

main44200-28520iAZR65¥115,000200111-200408

sub44200-28521¥115,000

main44200-28630iAZR60¥115,000200408

sub44250-28631¥107,000

sub45046-49095¥3,880

sub45047-49025¥3,880

sub90170-15001¥130

main44200-28643iAZR65¥115,000200408

sub44200-28644¥115,000

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-28510iAZR60..4HC¥107,000200111-200209

sub44250-28631¥107,000

main44250-28520iAZR65..4HC¥107,000200111-200209

sub44200-28520¥115,000

45046END SUB-ASSY, TIE ROD, RH

main45046-49095iAZR65¥3,880200111-200408

main45047-49025iAZR60¥3,880200111-200408

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iAZR6#¥130200111-200408

45047END SUB-ASSY, TIE ROD, LH

main45046-49095iAZR60¥3,880200111-200408

main45047-49025iAZR65¥3,880200111-200408

45503END SUB-ASSY, STEERING RACK

main45503-29805iAZR60¥7,100200111-200705

sub45503-80001¥7,100

main45503-29815iAZR65¥7,100200111-200705

sub45503-80002¥7,100

main45503-80001iAZR60¥7,100200705

sub45503-80003¥7,100

main45503-80002iAZR65¥7,100200705

sub45503-80004¥7,100

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14007iAZR6#¥160200111-200704

main90214-14009iAZR6#¥190200705

45522BUSH, STEERING RACK

main45522-44010iAZR60¥260200408

main45522-44010iAZR60¥260200111-200408

NO.1

main45522-44020iAZR60¥260200111-200408

NO.2

main45522-44020iAZR60¥260200408

45535BOOT, STEERING RACK, NO.1

main45535-44010iAZR6#¥850200111-200408

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19018iAZR6#..4HC¥240200111-200204

sub90467-19021¥180

main90467-19021iAZR6#¥180200204-200408

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iAZR6#¥240200111-200408

45536BOOT, STEERING RACK, NO.2

main45535-44010iAZR6#¥850200111-200408

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-55016iAZR6#¥240200111-200408

9011910932

main90119-10932¥390

9017015001

main90170-15001¥130

9017810022

main90178-10022¥100

9538103025

main95381-03025¥130

18 parts on this diagram · 3 diagrams in section
