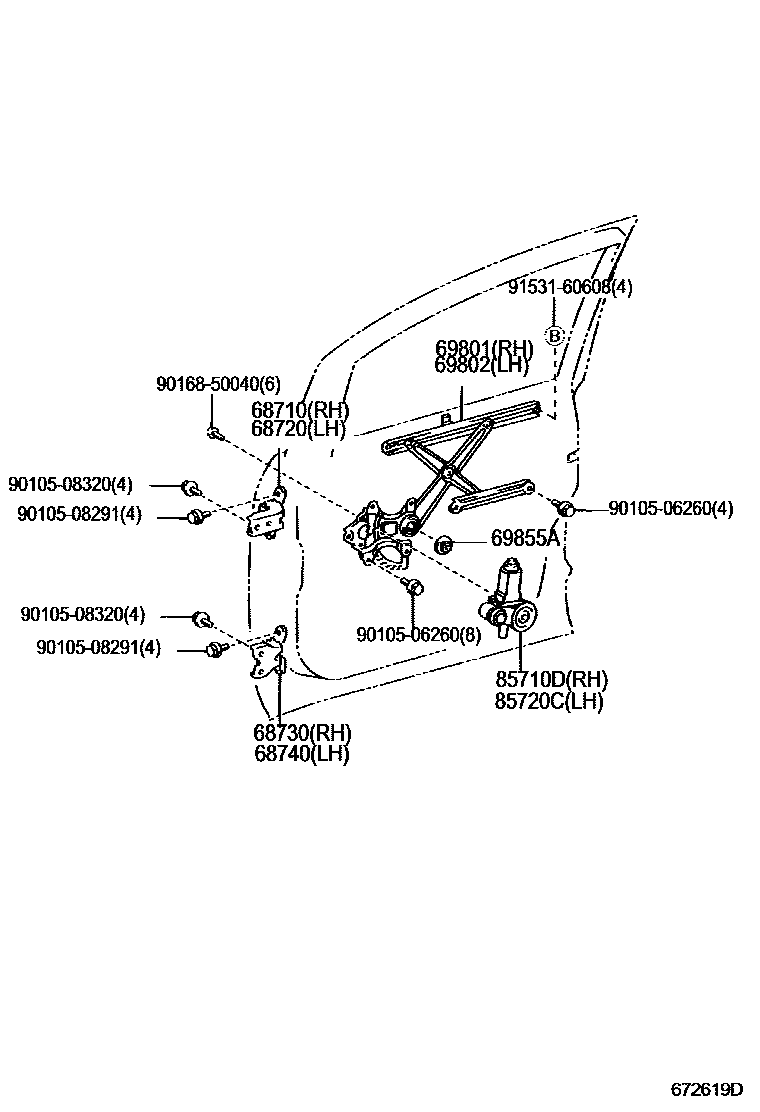

Toyota NOAH/VOXY — FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-52010iAZR6#¥3,600200408-200706

main68710-52010iAZR6#¥3,600200111-200408

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-44020iAZR6#..08S..X¥3,570200408-200706

�������(������� ������� �-�)

main68720-44020iAZR6#..L,V,X¥3,570200111-200408

�������(������� ������� �-�)

main68720-52010iAZR6#¥3,600200408-200706

main68720-52010iAZR6#¥3,600200111-200408

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-44010iAZR6#¥3,270200111-200408

main68720-44010iAZR6#¥3,270200408-200706

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-44010iAZR6#¥3,270200111-200408

main68710-44010iAZR6#¥3,270200408-200706

main68710-44020iAZR6#..08S..X¥3,570200408-200706

�������(������� ������� �-�)

main68710-44020iAZR6#..L,V,X¥3,570200111-200408

�������(������� ������� �-�)

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-28070iAZR6#¥6,800200408

main69801-28070iAZR6#¥6,800200111-200408

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-28050iAZR6#¥6,800200111-200408

main69802-28050iAZR6#¥6,800200408

69855ACOVER, DOOR WINDOW REGULATOR GEAR

main69855-20010iAZR6#¥240200408

main69855-20010iAZR6#¥240200111-200408

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-52110iAZR6#¥33,400200408

main85710-63010iAZR6#¥33,300200111-200408

sub85710-33120¥33,300

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-48050iAZR6#¥33,300200111-200408

sub85720-33130¥33,300

main85720-52110iAZR6#¥33,400200408

9010506260

main90105-06260¥60

9010508291

main90105-08291¥90

9010508320

main90105-08320¥90

9016850040

main90168-50040¥70

9153160608

main91531-60608¥60

14 parts on this diagram · 1 diagram in section
