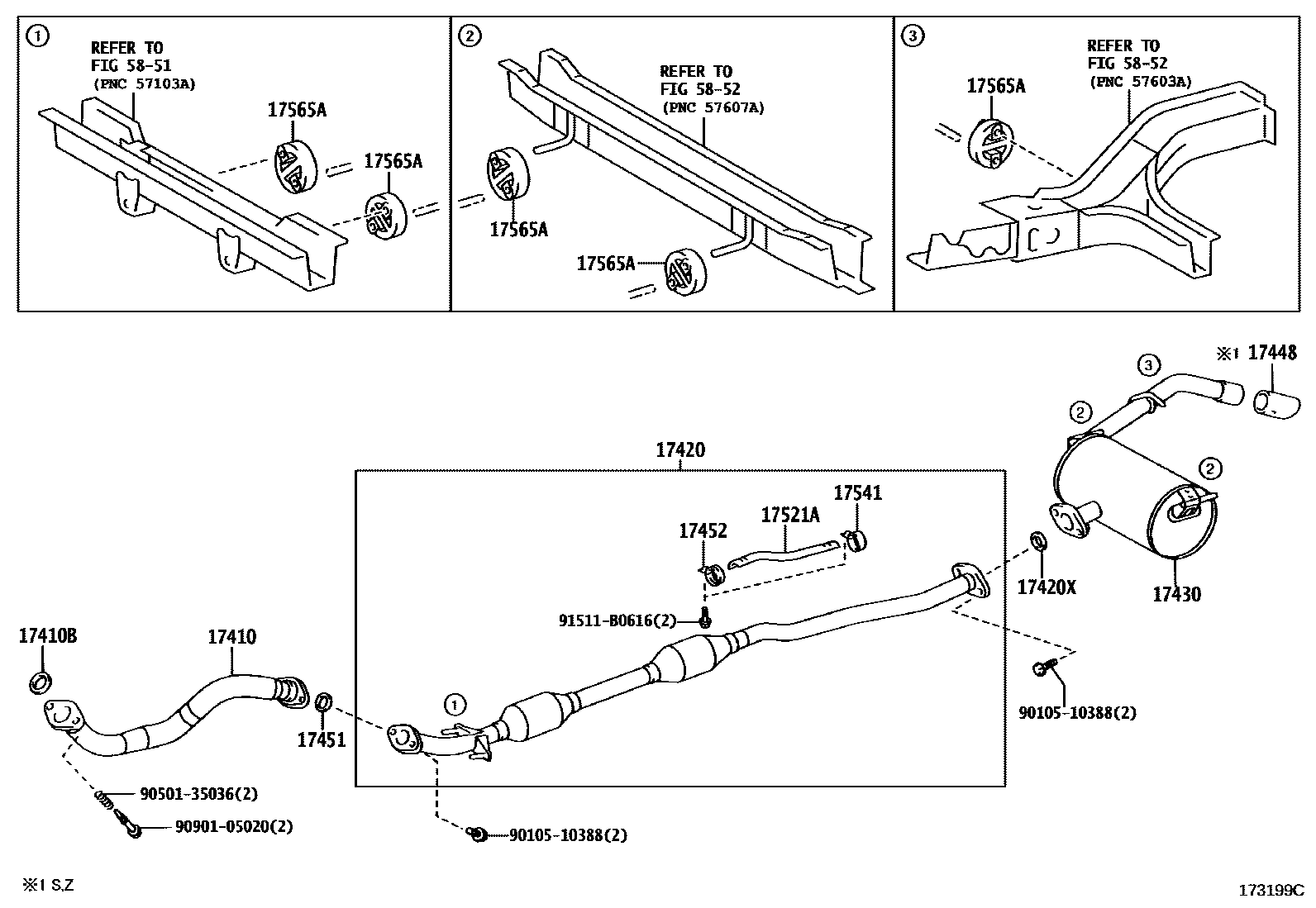

Toyota NOAH/VOXY — EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-28300i1AZFSE..AZR60¥21,600200111-200408

main17410-28300i1AZFSE..AZR60¥21,600200408

main17410-28370i1AZFSE..AZR65¥21,600200111-200408

main17410-28370i1AZFSE..AZR65¥21,600200408

17410BGASKET, EXHAUST PIPE

main17451-22070i1AZFSE..AZR6#¥1,450200111-200408

main17451-22070i1AZFSE..AZR6#¥1,450200408

17420PIPE ASSY, EXHAUST, CENTER

main17420-28200i1AZFSE..AZR60¥184,000200111-200408

main17420-28210i1AZFSE..AZR65¥184,000200111-200408

main17420-28550i1AZFSE..AZR60¥102,000200408-200508

sub17420-28670¥109,000

main17420-28560i1AZFSE..AZR65¥102,000200408-200508

sub17420-28680¥109,000

main17420-28670i1AZFSE..AZR60¥109,000200508-200604

sub17420-28671¥109,000

main17420-28671i1AZFSE..AZR60¥109,000200605

main17420-28680i1AZFSE..AZR65¥109,000200508-200604

sub17420-28681¥109,000

main17420-28681i1AZFSE..AZR65¥109,000200605

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06073i1AZFSE..AZR6#¥450200111-200408

main90917-06073i1AZFSE..AZR6#¥450200408

17430PIPE ASSY, EXHAUST, TAIL

main17430-28250i1AZFSE..AZR60..L,V,X¥43,000200111-200408

main17430-28260i1AZFSE..AZR65..L,V,X¥30,200200111-200408

sub17430-28261¥30,200

main17430-28260i1AZFSE..AZR65..TRASX,X,YY¥30,200200408-200608

sub17430-28261¥30,200

main17430-28261i1AZFSE..AZR65..TRASX,X,YY¥30,200200609

main17430-28340i1AZFSE..AZR60..S,Z¥43,000200111-200408

main17430-28350i1AZFSE..AZR65..S,Z¥30,900200111-200408

sub17430-28351¥30,900

main17430-28350i1AZFSE..AZR65..S,Z¥30,900200408-200608

sub17430-28351¥30,900

main17430-28351i1AZFSE..AZR65..S,Z¥30,900200609

main17430-28370i1AZFSE..AZR60..08S¥43,000200408

�������(�� ��-��)

main17430-28370i1AZFSE..AZR60..L,V,X¥43,000200111-200408

�������(�� ��-��)

main17430-28650i1AZFSE..AZR60..TRASX,X,YY¥43,000200408-200507

sub17430-28651¥43,000

main17430-28651i1AZFSE..AZR60..TRASX,X,YY¥43,000200508

main17430-28660i1AZFSE..AZR60..S,Z¥43,000200408-200507

sub17430-28661¥43,000

main17430-28661i1AZFSE..AZR60..S,Z¥43,000200508

17448BAFFLE, TAILPIPE

main17448-74080i1AZFSE..AZR6#..S,Z¥3,730200111-200408

main17448-74080i1AZFSE..AZR6#..S,Z¥3,730200408

17451GASKET, EXHAUST PIPE

main90917-06078i1AZFSE..AZR6#¥340200111-200408

main90917-06078i1AZFSE..AZR6#¥340200408

17452CLAMP, EXHAUST PIPE

main90461-12419i1AZFSE..AZR60¥700200111-200408

main90461-12419i1AZFSE..AZR60¥700200408-200706

17521APROTECTOR, EXHAUST PIPE, UPPER NO.1

main17521-28060i1AZFSE..AZR60¥2,780200111-200408

main17521-28060i1AZFSE..AZR60¥2,780200408-200706

17541STAY, EXHUST PIPE PROTECTOR, NO.1

main17541-28070i1AZFSE..AZR60¥1,260200111-200408

main17541-28070i1AZFSE..AZR60¥1,260200408-200706

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-64180i1AZFSE..AZR65¥970200111-200408

main17565-64180i1AZFSE..AZR65¥970200408

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i1AZFSE..AZR60¥670200408

main17565-22040i1AZFSE..AZR60¥670200405-200408

main17565-46040i1AZFSE..AZR60¥1,240200111-200404

5851

5852

9010510388

main90105-10388¥100

9050135036

main90501-35036¥200

9090105020

main90901-05020¥230

91511B0616

main91511-B0616¥110

18 parts on this diagram · 2 diagrams in section
