Toyota NOAH/VOXY — ENGINE OVERHAUL GASKET KIT

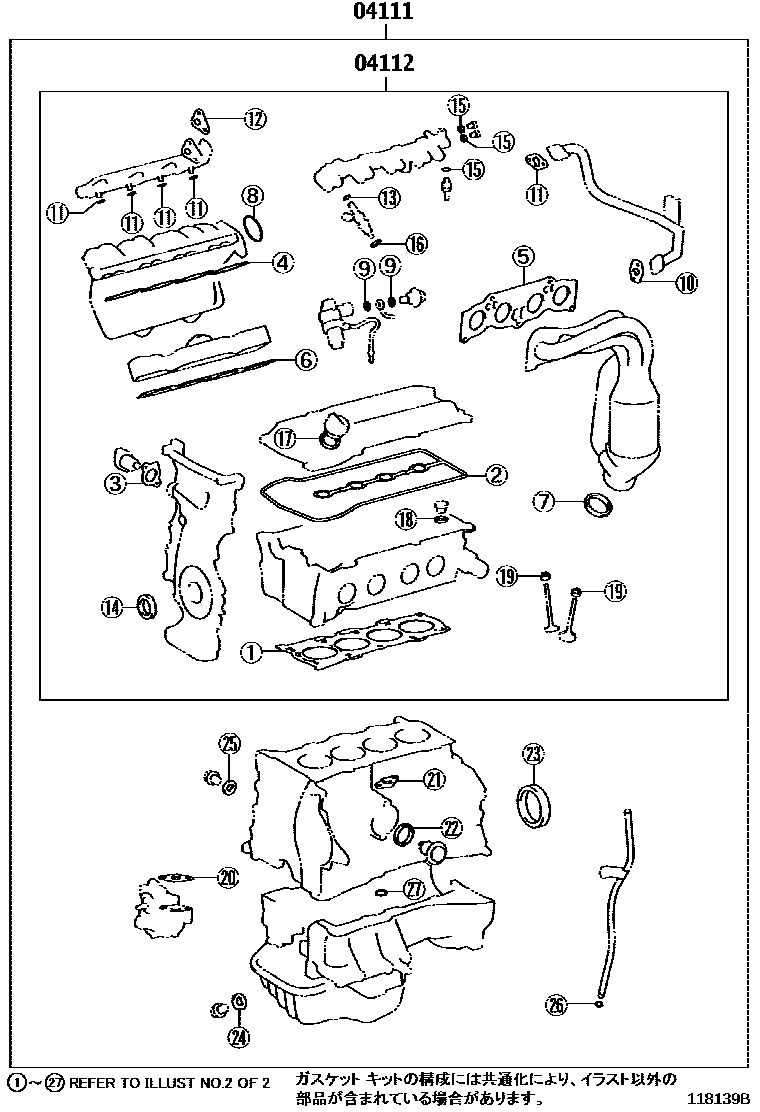

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-28150i¥38,900200111-200211

sub04111-28151¥38,900

main04111-28151i¥38,900200211-200212

sub04111-28152¥38,900

main04111-28152i¥38,900200212-200304

sub04111-28153¥38,900

main04111-28153i¥38,900200304-200311

sub04111-28154¥38,900

main04111-28320i¥38,900200311-200408

sub04111-28321¥38,900

main04111-28530i¥38,900200408-200508

sub04111-28531¥38,900

main04111-28531i¥38,900200508

sub04111-28532¥38,900

sub90910-02162¥310

04112GASKET KIT, ENGINE VALVE GRIND

main04112-28150i¥25,300200111-200211

sub04112-28151¥25,300

main04112-28151i¥25,300200211-200212

sub04112-28152¥25,300

main04112-28152i¥25,300200212-200304

sub04112-28153¥25,300

main04112-28153i¥25,300200304-200311

sub04112-28154¥25,500

main04112-28310i¥25,500200311-200408

sub04112-28311¥25,500

main04112-28490i¥25,500200408-200508

sub04112-28491¥25,500

main04112-28491i¥25,500200508

sub04112-28492¥25,500

sub90910-02162¥310

2 parts on this diagram · 2 diagrams in section
