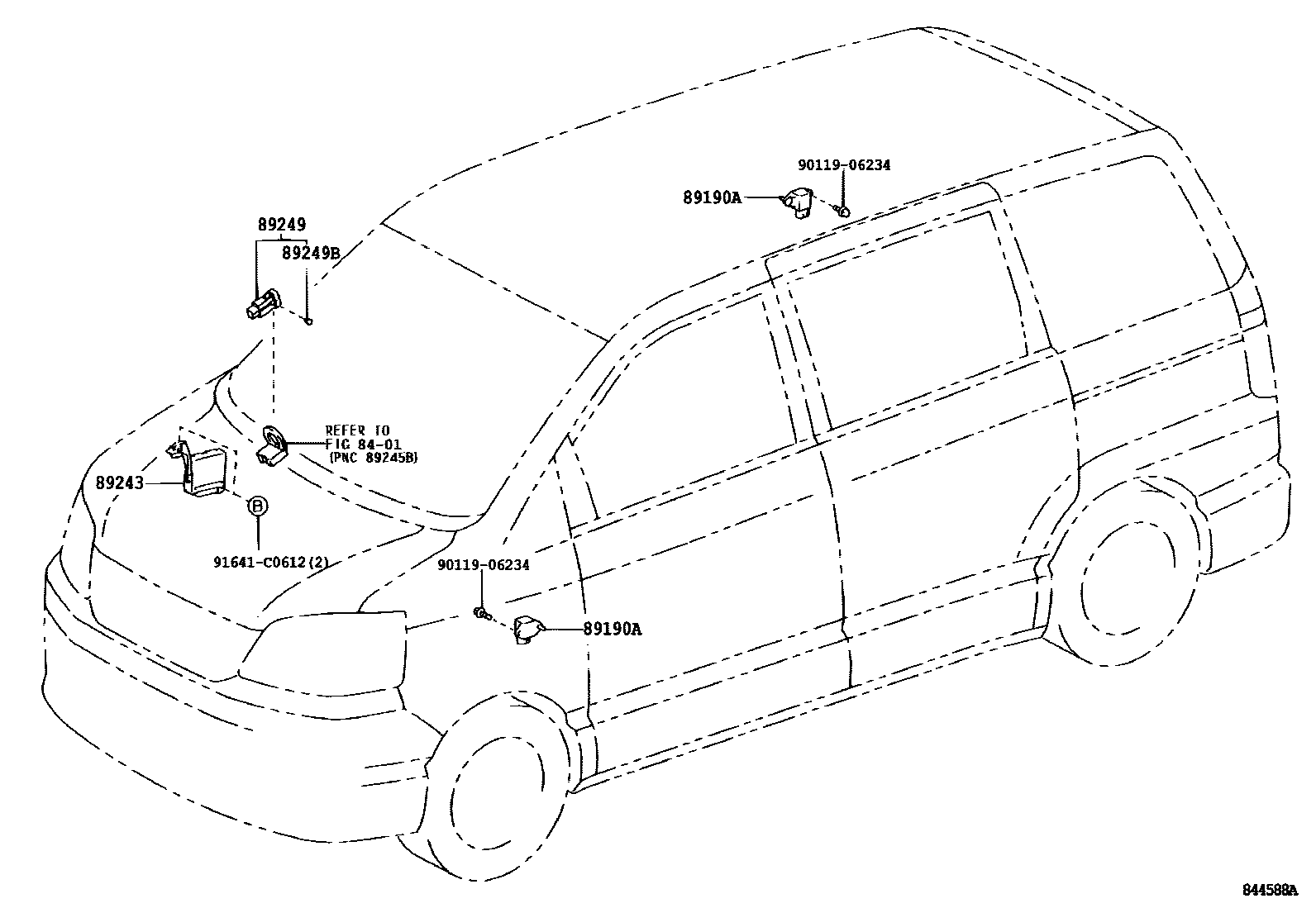

Toyota NOAH/VOXY — ELECTRONIC MODULATED SUSPENSION

8401

89190ASENSOR ASSY, ACCELERATION

main89190-44010iAZR6#¥10,200200111-200408

89243COMPUTER, ABSORBER CONTROL

main89243-28030iAZR6#¥63,200200111-200408

main89243-28031iAZR6#..S,Z¥63,200200408

89249SWITCH, ABSORBER CONTROL

main89249-28020iAZR6#¥6,000200111-200408

89249BBULB, ABSORBER CONTROL SWITCH

main84999-10310iAZR6#¥310200111-200408

9011906234

main90119-06234¥120

91641C0612

main91641-C0612¥110

7 parts on this diagram · 1 diagram in section
