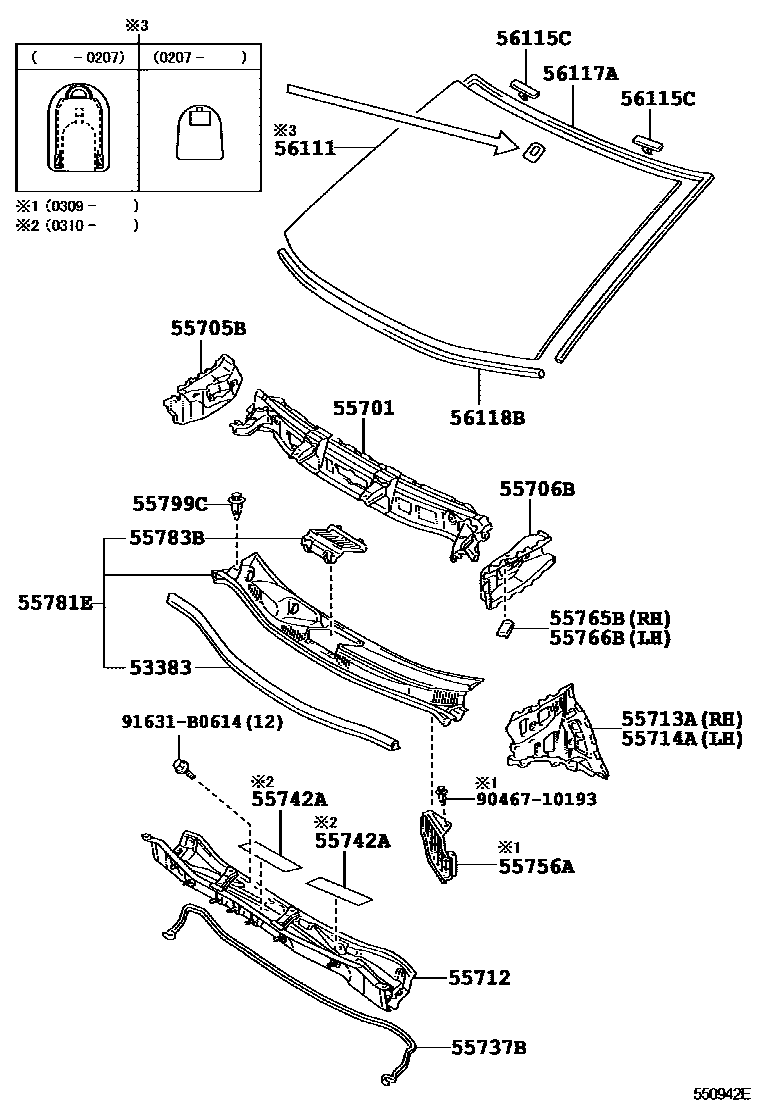

Toyota NOAH/VOXY — COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-28040iAZR6#¥1,390200111-200408

55701PANEL SUB-ASSY, COWL

main55700-28030iAZR6#¥15,800200111-200706

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-28010iAZR6#¥3,480200111-200408

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-28050iAZR6#¥3,480200111-200408

55712PANEL, COWL TOP OUTSIDE, FRONT

main55720-28070iAZR6#¥15,800200111-200408

55713APANEL, COWL TOP SIDE, RH

main55713-28020iAZR6#¥4,430200111-200408

55714APANEL, COWL TOP SIDE, LH

main55714-28020iAZR6#¥4,430200111-200408

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-28020iAZR6#¥1,330200111-200408

sub55737-28040¥1,070

55742ASHEET, COWL TOP INSULATOR

main55742-28060iAZR6#¥3,160200310-200408

55756ASCREEN, HEATER AIR DUCT

main55756-28010iAZR6#¥2,330200309-200408

55765BBRACKET, HOOD DAMPER MOUNTING

main55765-44010iAZR6#¥310200111-200408

55766BBRACKET, HOOD DAMPER MOUNTING

main55765-44010iAZR6#¥310200111-200408

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-28120iAZR6#¥14,100200111-200408

sub55708-28130¥15,500

main55708-28130iAZR6#¥15,500200111-200408

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-28030iAZR6#¥2,910200111-200408

sub55783-28040¥3,210

main55783-28040iAZR6#¥3,210200111-200408

55799CCLIP, COWL TOP VENTILATOR LOUVER

main55799-28010iAZR6#¥140200111-200408

56111GLASS, WINDSHIELD

main56101-28010iAZR6#..4HC..(S,X,Z)¥108,000200111-200207

main56101-28040iAZR6#..L,V¥116,000200111-200207

main56101-28050iAZR6#..NOAH..4HC..X¥108,000200207-200308

main56101-28050iAZR6#..4HC..Z¥108,000200207-200308

main56101-28050iAZR6#..S,X,Z¥108,000200207-200408

main56101-28060iAZR6#..L,V¥116,000200207-200408

main56101-28070iAZR6#..NOAH..4HC..X¥108,000200308-200407

main56101-28070iAZR6#..NOAH..4HC..X¥108,000200304-200308

main56101-28100iAZR6#¥0200408

main56101-28110iAZR6#..X¥0200408

56115CSTOPPER, WINDSHIELD GLASS

main56116-35050iAZR6#¥120200111-200706

56117ADAM, WINDOW GLASS ADHESIVE

main56117-58010iAZR6#¥1,480200111-200408

sub56117-47010¥1,630

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-40050iAZR6#¥820200111-200408

main56117-40050iAZR6#¥820200408

9046710193

main90467-10193¥220

91631B0614

main91631-B0614¥110

21 parts on this diagram · 1 diagram in section
