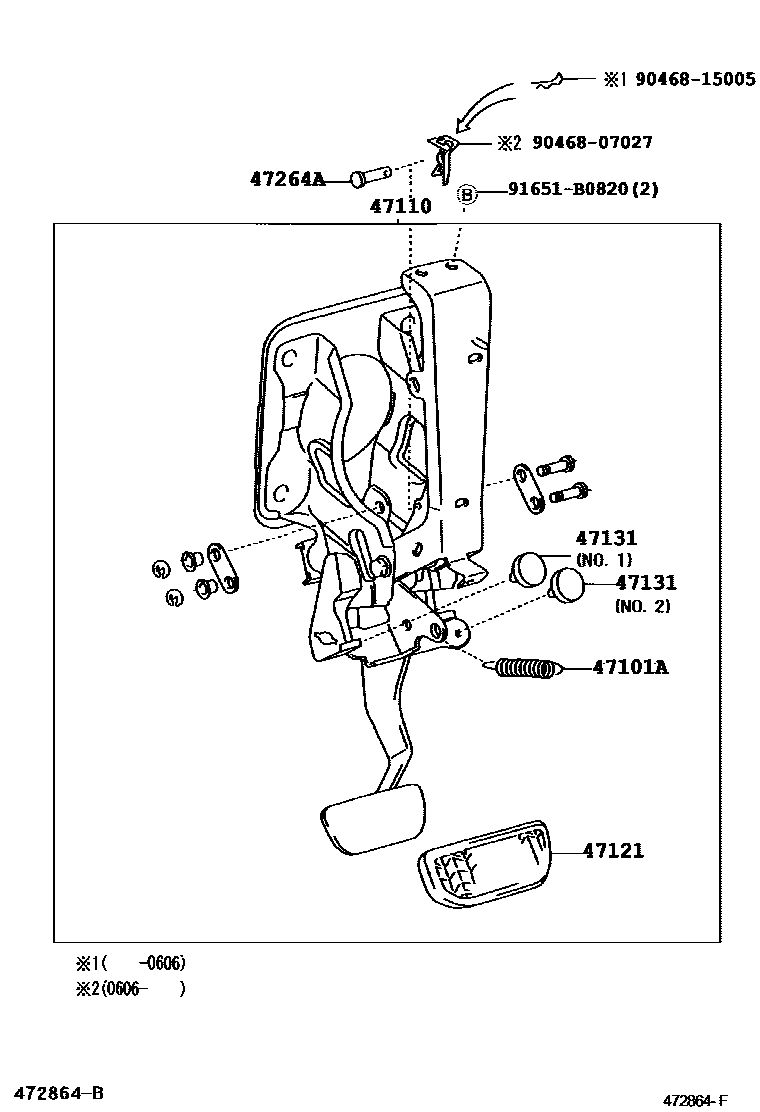

Toyota NOAH/VOXY — BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-20075iAZR6#¥300200111-200408

main90506-20075iAZR6#¥300200408

47110SUPPORT ASSY, BRAKE PEDAL

main47110-28091iAZR6#¥12,600200111-200408

main47110-28091iAZR6#¥12,600200408

47121PAD, BRAKE PEDAL

main47121-52010iAZR6#¥260200111-200408

main47121-52010iAZR6#¥260200408

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iAZR6#..4HC¥110200210-200302

�m�n�D�Q

main90541-06049iAZR6#..4HC¥110200111-200210

�m�n�D�P�@���@�m�n�D�Q

main90541-06049iAZR6#..4HC¥110200210-200302

�m�n�D�P

main90541-06049iAZR6#¥110200302-200408

�m�n�D�P�@���@�m�n�D�Q

main90541-06049iAZR6#¥110200408

�m�n�D�P�@���@�m�n�D�Q

47264APIN(FOR PUSH ROD)

main90240-06023iAZR6#¥160200111-200408

main90240-06023iAZR6#¥160200408-200606

main90240-06027iAZR6#¥90200606

9046807027

main90468-07027¥60

9046815005

main90468-15005¥90

91651B0820

main91651-B0820¥160

8 parts on this diagram · 1 diagram in section
