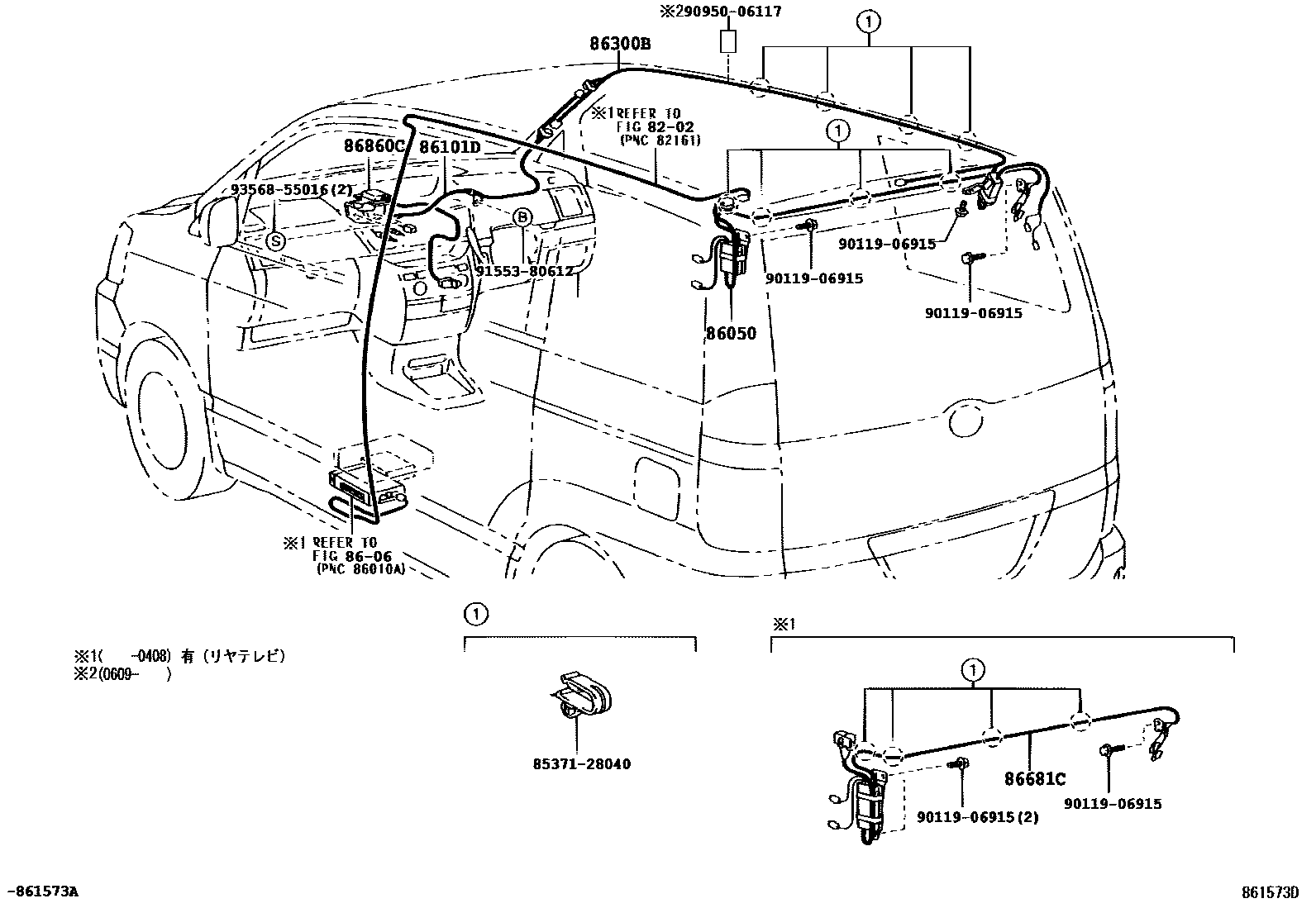

Toyota NOAH/VOXY — ANTENNA

8202

86050ANTENNA ASSY, TELEVISION

main86050-28080iAZR6#¥29,600200408-200508

main86050-28080iAZR6#¥29,600200111-200408

main86050-28081iAZR6#¥29,600200508

8606

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-28550iAZR6#¥4,250200408

main86101-28550iAZR6#¥4,250200111-200408

main86101-28560iAZR6#¥7,400200111-200408

��(����)

main86101-28560iAZR6#¥7,400200408-200508

��(����)

main86101-28561iAZR6#¥8,200200508

��(����)

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-28390iAZR6#¥19,900200111-200408

main86300-28390iAZR6#¥19,900200408

main86300-28400iAZR6#¥19,900200408-200508

��(����)

main86300-28400iAZR6#¥19,900200111-200408

��(����)

main86300-28401iAZR6#¥19,900200508

��(����)

86681CDIVIDER, ANTENNA

main86681-28030iAZR6#¥81,500200111-200408

86860CANTENNA ASSY, NAVIGATION

main86860-28090iAZR6#¥37,300200111-200308

main86860-28140iAZR6#¥37,300200308-200408

main86860-28140iAZR6#¥37,300200408

8537128040HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-28040¥180

9011906915

main90119-06915¥60

9095006117

main90950-06117¥250

9155380612

main91553-80612¥60

9356855016

main93568-55016¥70

12 parts on this diagram · 1 diagram in section
