Toyota NOAH/VOXY — WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1SEAT 0007 1CLAMP & BRACKET 0008 1CONNECTOR

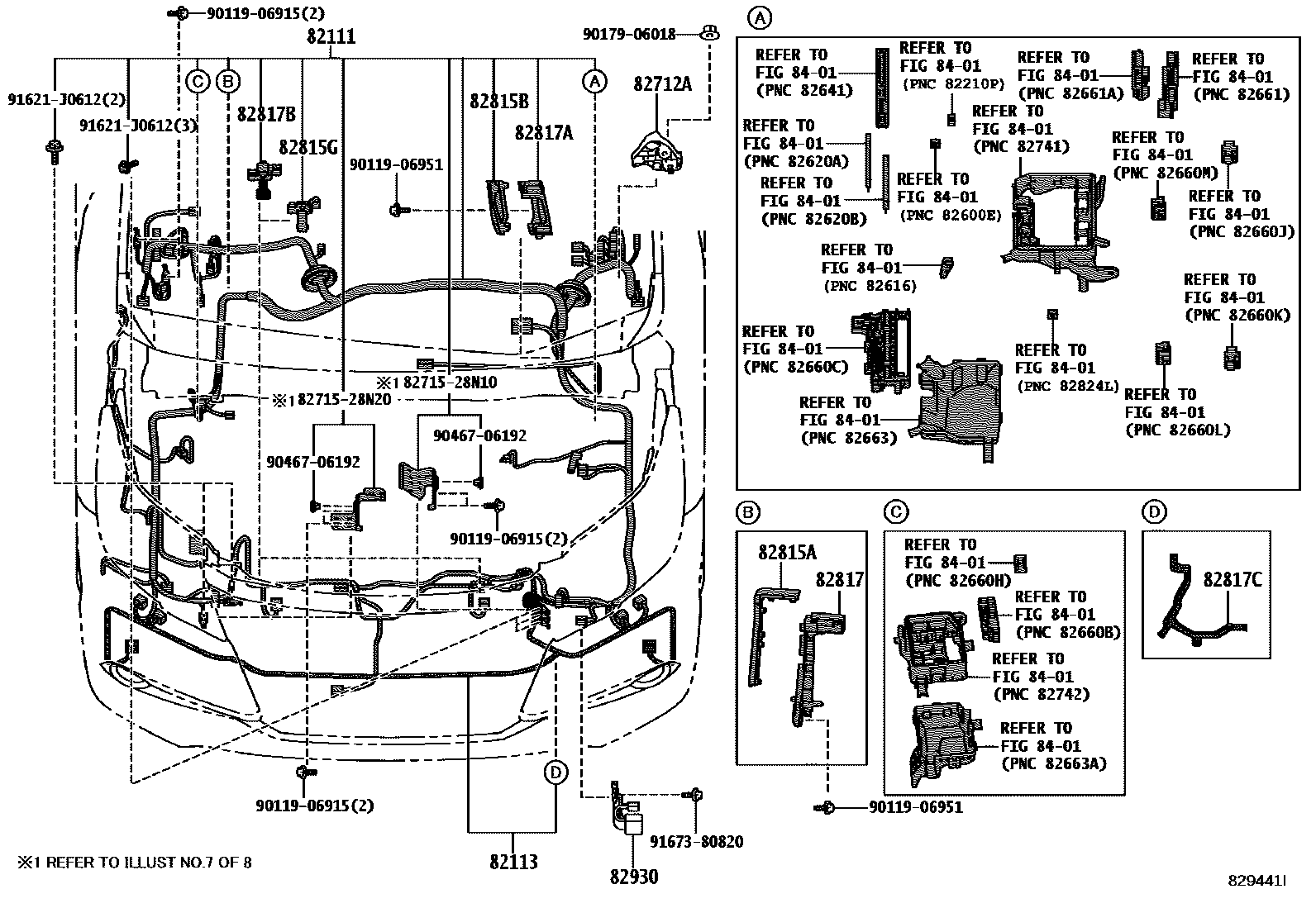

82111WIRE, ENGINE ROOM MAIN

main82111-28Q80iZRR80..X201401-201403

main82111-28Q81iZRR80..X201403-201601

main82111-28Q82iZRR80..X201601-201706

main82111-28R10iZRR80..SI201401-201403

main82111-28R11iZRR80..SI201403-201601

main82111-28R12iZRR80..SI201601-201706

main82111-28T50iZRR80..ZS201706-201901

main82111-28T51iZRR80..ZS201901-202005

main82111-28U40iZRR80..X¥140,000201706-201901

main82111-28U41iZRR80..X¥155,000201901-202005

main82111-28U50iZRR80..SI¥155,000201706-201901

main82111-28U51iZRR80..SI¥170,000201901-202005

main82111-V1380iZRR80..ZS202005

main82111-V1470iZRR80..X¥129,000202005

main82111-V1480iZRR80..SI¥141,000202005

82113WIRE, ENGINE ROOM, NO.3

main82113-28450iZRR80..SI¥6,200201401-201706

main82113-28460iZRR80..X¥6,200201401-201706

main82113-28560iZRR80..SI¥4,250201706-201901

main82113-28561iZRR80..SI¥3,540201901

main82113-28570iZRR80..X¥6,200201706-201901

main82113-28571iZRR80..X¥3,540201901

main82113-28580iZRR80..ZS¥4,250201706-201901

main82113-28581iZRR80..ZS¥3,540201901

82712ASUPPORT, WIRING HARNESS

main82712-28710iZRR80¥1,170201401-201706

main82712-28710iZRR80¥1,170201706

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-28E60iZRR80¥720201401-201706

main82815-28E60iZRR80..NOAH¥720201706

main82815-28E60iZRR80..ZS¥720202005

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-28E70iZRR80..NOAH¥510201706

main82815-28E70iZRR80¥510201401-201706

main82815-28E70iZRR80..ZS¥510202005

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-28J50iZRR80¥220201401-201706

main82815-28J50iZRR80..ZS¥220202005

main82815-28J50iZRR80..NOAH¥220201706

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-28Q90iZRR80..ZS¥1,450202005

main82817-28Q90iZRR80¥1,450201401-201706

main82817-28Q90iZRR80..NOAH¥1,450201706

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-28R00iZRR80..NOAH¥760201706

main82817-28R00iZRR80..ZS¥760202005

main82817-28R00iZRR80¥760201401-201706

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-28U10iZRR80..ZS¥360202005

main82817-28U10iZRR80¥360201401-201706

main82817-28U10iZRR80..NOAH¥360201706

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-28U20iZRR80¥700201401-201706

main82817-28W20iZRR80..NOAH¥910201706

main82817-28W30iZRR80..ZS¥890201706-201810

sub82817-28W90¥740

main82817-28W90iZRR80..ZS¥740201811

82930CONDENSER ASSY, WIRING HARNESS, NO.1

main82930-28010iZRR80¥5,200201401-201706

main82930-28010iZRR80¥5,200201706

8401

8271528N10BRACKET,WIRING HARNESS CLAMP

main82715-28N10¥1,000

8271528N20BRACKET,WIRING HARNESS CLAMP

main82715-28N20¥750

9011906915

main90119-06915¥60

9011906951

main90119-06951¥80

9017906018

main90179-06018¥70

9046706192

main90467-06192¥80

91621J0612

main91621-J0612¥70

9167380820

main91673-80820¥80

20 parts on this diagram · 8 diagrams in section
