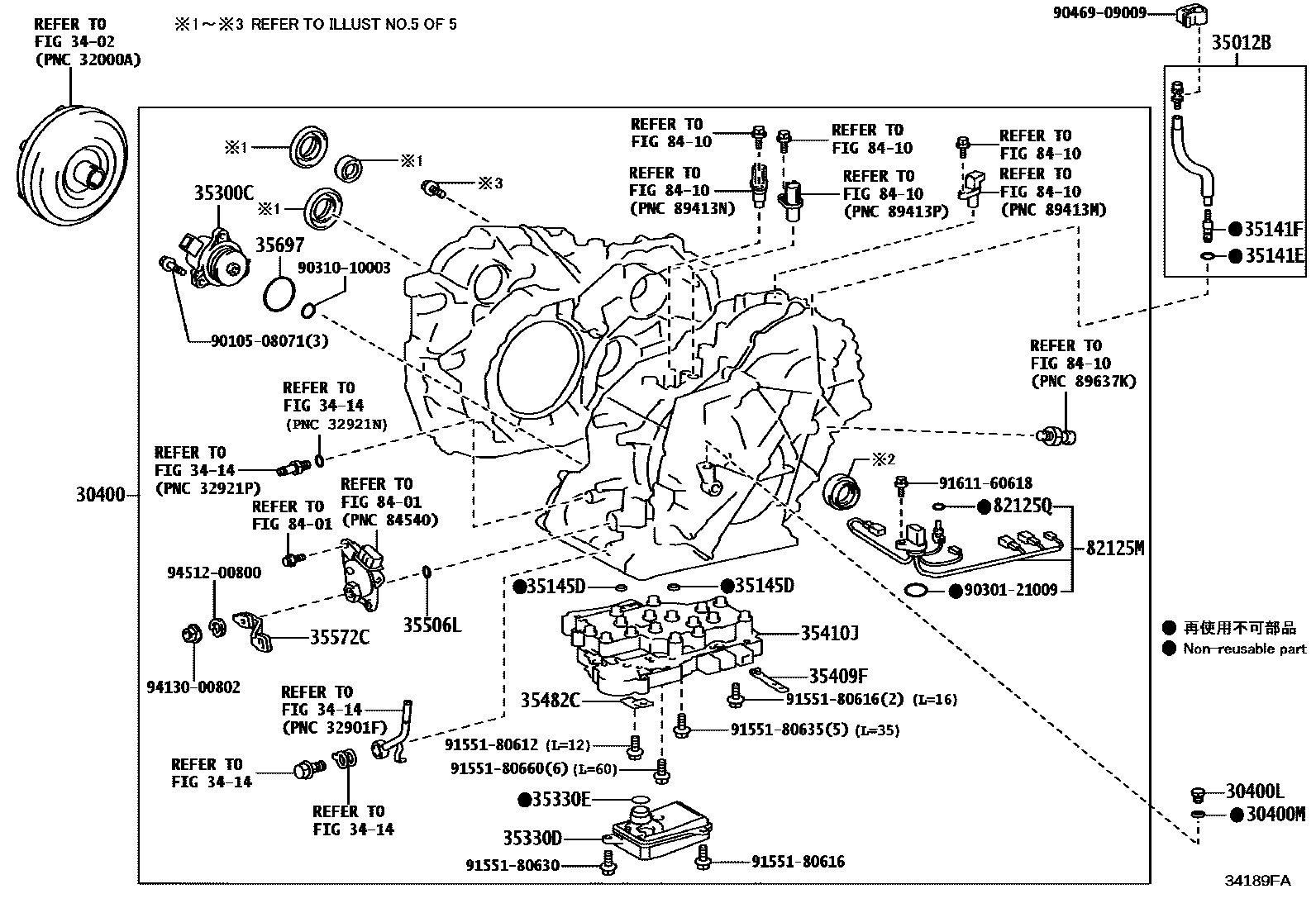

Toyota NOAH/VOXY — TRANSAXLE ASSY(CVT)
30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE
K114
K114
30400LPLUG , FILLER(CVT)
30400MGASKET, FILLER PLUG(CVT)
3402
3414
35012BHOSE SUB-ASSY, TRANSMISSION BREATHER
35141ERING, O(FOR BREATHER PLUG)
35141FPLUG, BREATHER, NO.1(CVT)
35145DGASKET, TRANSAXLE CASE
35300CPUMP ASSY, OIL W/MOTOR
35330DSTRAINER ASSY, OIL
35330ERING, O (FOR OIL STRAINER)
35409FSPRING SUB-ASSY, MANUAL DETENT
35410JBODY ASSY, TRANSMISSION VALVE
35482CCLAMP, TEMPERATURE SENSOR
35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
35572CLEVER, TRANSMISSION CONTROL SHAFT
35697RING, TRANSAXLE OIL SEAL
82125MWIRE, TRANSMISSION
82125QRING, O(FOR TRANSMISSION WIRE)
8401
8410
9010508071
9030121009
9031010003
9046909009
9155180612
9155180616
9155180630
9155180635
9155180660
9161160618
9413000802
9451200800
34 parts on this diagram · 4 diagrams in section
