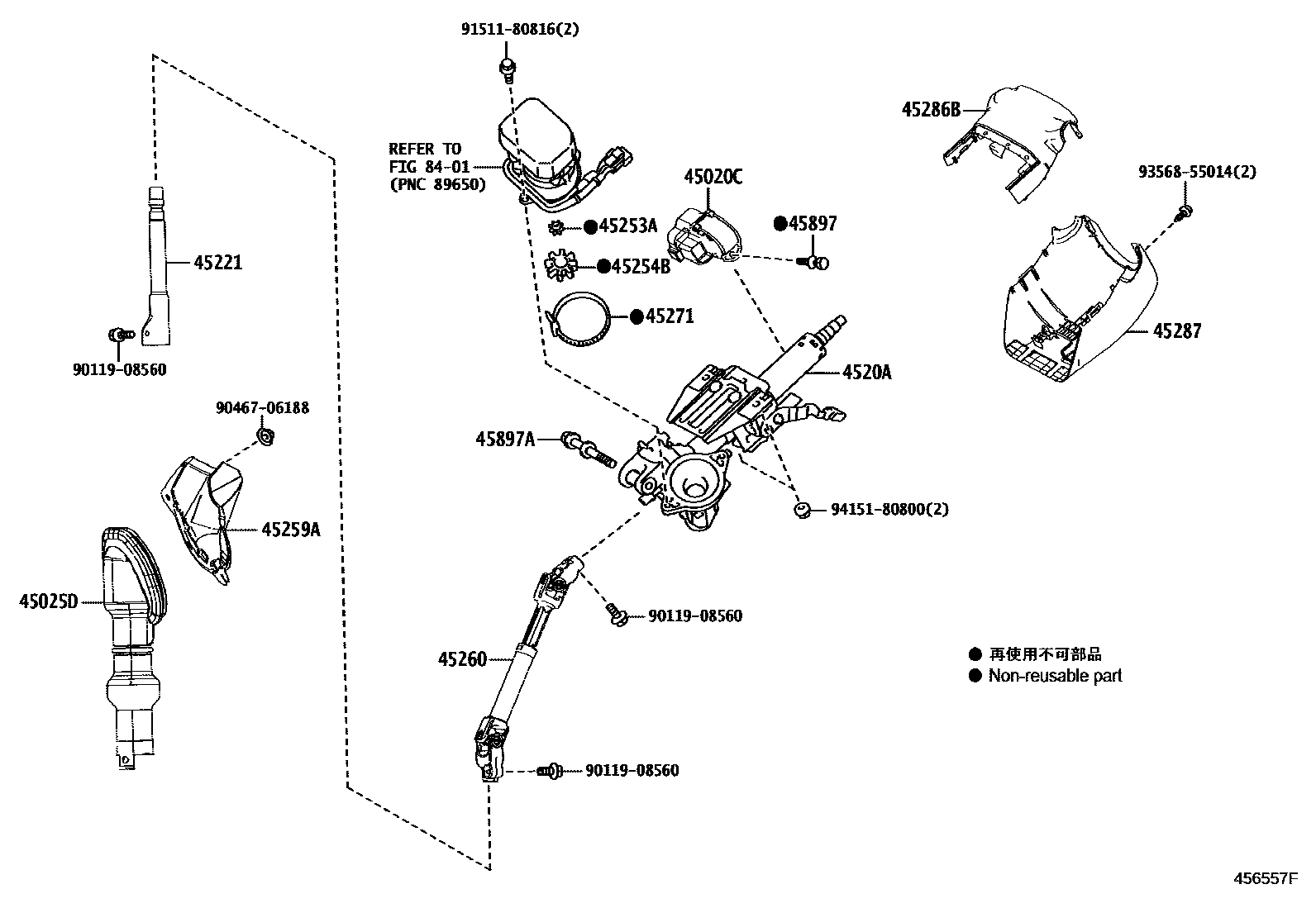

Toyota NOAH/VOXY — STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45221SHAFT, STEERING INTERMEDIATE
45253ASPACER, ELECTRIC POWER STEERING MOTOR SHAFT
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45271CLAMP, STEERING COLUMN, UPPER
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM0#
BLACK,TRIM2#
BLACK,TRIM2#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM2#
BLACK,TRIM0#
BLACK,TRIM2#
45897ABOLT, TILT STEERING PAWL SET
8401
9011908560
9046706188
9151180816
9356855014
9415180800
19 parts on this diagram · 2 diagrams in section
