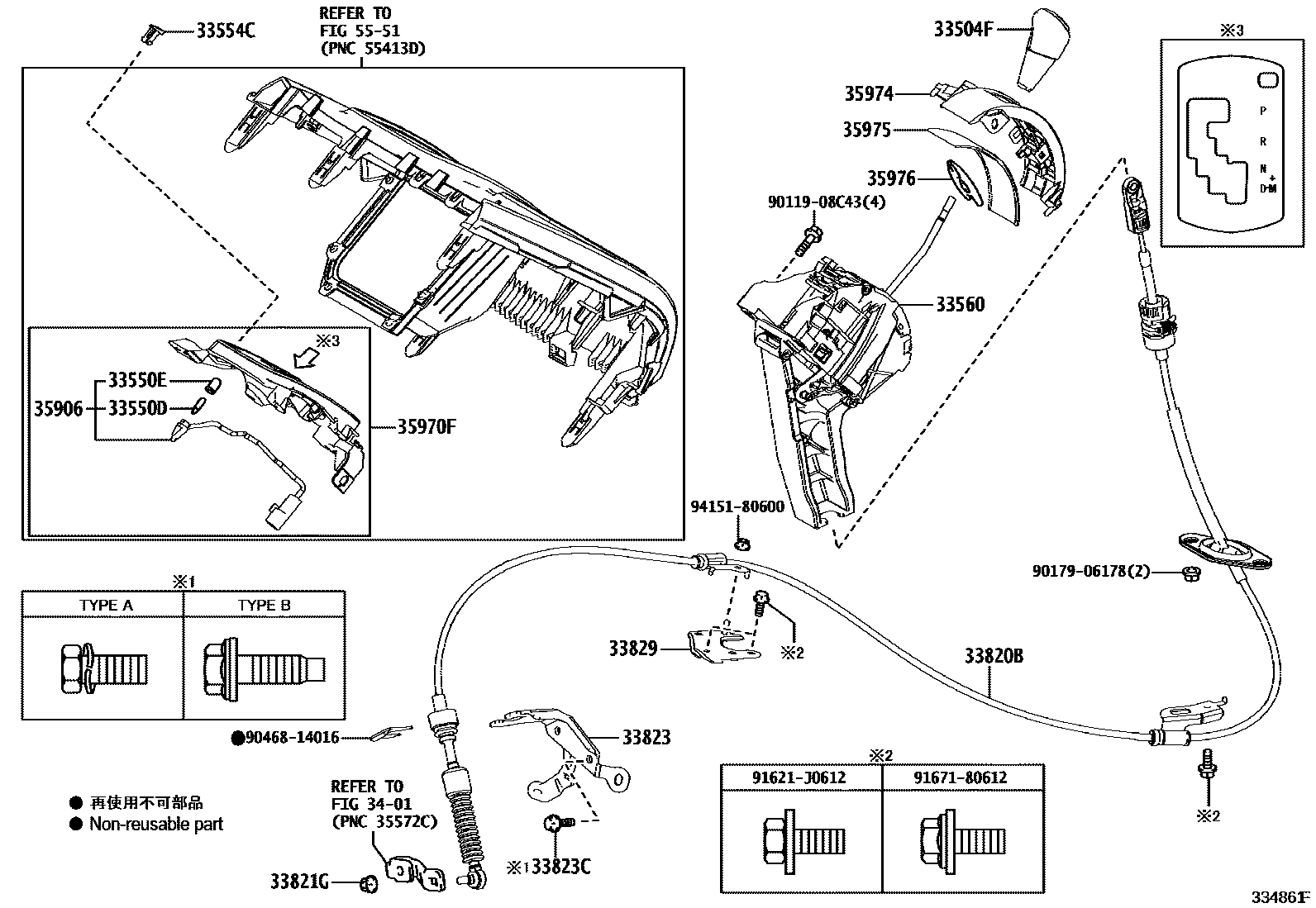

Toyota NOAH/VOXY — SHIFT LEVER & RETAINER

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-28060-C0iZRR80..X201706

BLACK,TRIM2#

sub33504-74011¥2,710

main33504-28060-C0iZRR80..X201401-201706

BLACK,TRIM0#,2#

sub33504-74011¥2,710

main33504-28090-C0iZRR80..ZS201706

BLACK,TRIM2#

main33504-74020-C0iZRR80..SI201401-201607

BLACK,TRIM2#

sub33504-74020¥6,200

main33504-74020-C5iZRR80..SI201607-201706

BLACK,TRIM2#

sub33504-74020¥6,200

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iZRR80¥140201401-201706

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main35956-64020iZRR80¥140201401-201706

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-28080iZRR80¥70201401-201706

main33554-28100iZRR80¥100201706

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-28110iZRR80¥20,200201401-201706

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-28420iZRR80¥11,800201401-201706

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-08040iZRR80¥100201401-201706

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28300iZRR80¥940201401-201706

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91611-B0816iZRR80¥140201401-201706

TYPE A:REFER ILLUST.

main91673-80820iZRR80¥80201401-201706

TYPE B:REFER ILLUST.

33829SUPPORT, TRANSMISSION CONTROL CABLE

main33829-28110iZRR80¥580201401-201706

3401

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-28050iZRR80¥640201401-201706

35970FHOUSING ASSY, POSITION INDICATOR

main35970-28180iZRR80¥9,300201401-201706

main35970-28200iZRR80¥7,800201706

35974HOUSING, POSITION INDICATOR, LOWER

main35974-28080iZRR80¥3,110201401-201706

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-28040iZRR80¥500201401-201706

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-28010iZRR80¥400201401-201706

5551

9011908C43

main90119-08C43¥100

9017906178

main90179-06178¥100

9046814016

main90468-14016¥160

91621J0612

main91621-J0612¥70

9167180612

main91671-80612¥60

9415180600

main94151-80600¥60

23 parts on this diagram · 1 diagram in section
