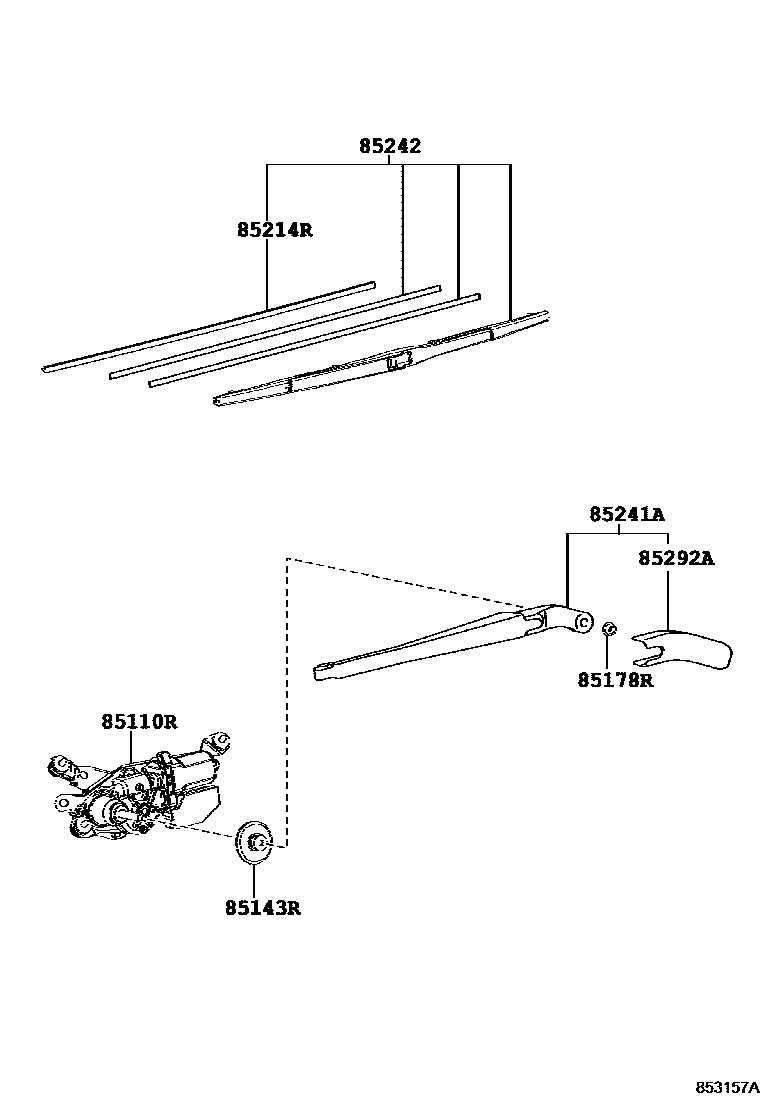

Toyota NOAH/VOXY — REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-28100iZRR80¥25,500201401-201605

sub85130-28101¥17,600

main85130-28101iZRR80¥17,600201606-201706

85143RGROMMET, REAR WIPER MOTOR

main85143-28080iZRR80¥160201401-201706

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158iZRR80¥70201401-201706

85214RRUBBER, REAR WIPER

main85214-10100iZRR80¥650201401-201706

85241AARM, REAR WIPER

main85241-28140iZRR80¥1,870201401-201706

85242BLADE, RR WIPER

main85242-47030iZRR80¥1,640201401-201706

85292ACAP, REAR WIPER ARM HEAD

main85292-28070iZRR80¥530201401-201706

7 parts on this diagram · 1 diagram in section
