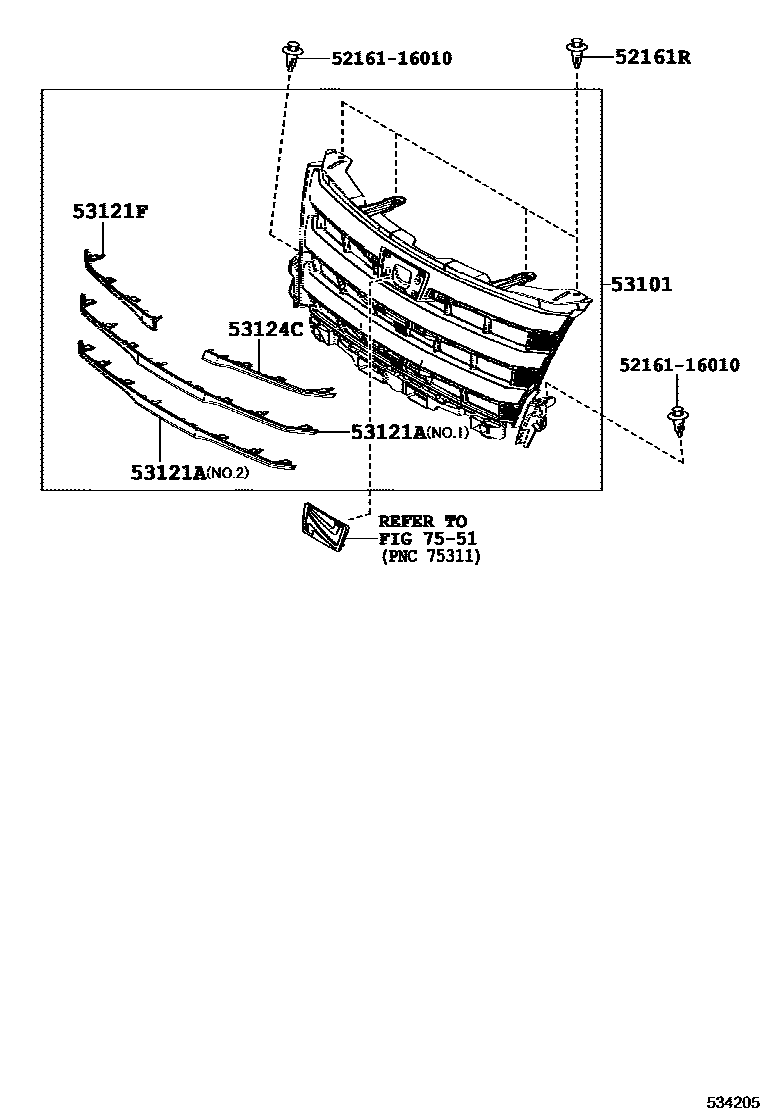

Toyota NOAH/VOXY — RADIATOR GRILLE

0001 1 0002 1

52161RPIECE, FRONT BUMPER

main52161-16010iZRR80¥120201401-201706

sub52161-0K040¥120

53101GRILLE SUB-ASSY, RADIATOR

main53101-28390iZRR80..X¥34,700201401-201706

PLATED

main53101-28570iZRR80..SI¥34,700201401-201706

PLATED

main53101-28600-A0iZRR80..X201706-201901

WHITE PEARL CS.,070

main53101-28600-A1iZRR80..X201706-201901

LUXURY WHITE PEARL CS.GF.,086

main53101-28600-B0iZRR80..X201706-201901

SILVER ME.,1F7

main53101-28600-C0iZRR80..X201706-201901

BLACK,202

main53101-28600-D0iZRR80..X201706-201901

DEEP RED M.M.,3R9

main53101-28600-E0iZRR80..X201706-201901

AVANT-GARDE BRONZE ME.,4V8

main53101-28610iZRR80..SI¥37,500201706-201901

PLATED

main53101-28620-A0iZRR80..ZS201706

WHITE PEARL CS.,070

main53101-28620-B0iZRR80..ZS201706-202004

SILVER ME.,1F7

main53101-28620-C0iZRR80..ZS201706

BLACK,202

main53101-28620-C1iZRR80..ZS201706

BLACKISH AGEHA GF.,221

main53101-28620-C2iZRR80..ZS201706

INAZUMA SPARKING BLACK GF,224

main53101-28670-A0iZRR80..X201901

WHITE PEARL CS.,070

main53101-28670-A1iZRR80..X201901

LUXURY WHITE PEARL CS.GF.,086

main53101-28670-B0iZRR80..X201901

SILVER ME.,1F7

main53101-28670-C0iZRR80..X201901

BLACK,202

main53101-28670-D0iZRR80..X201901

DEEP RED M.M.,3R9

main53101-28670-E0iZRR80..X201901

AVANT-GARDE BRONZE ME.,4V8

main53101-28680iZRR80..SI¥31,200201901

PLATED

53121AMOULDING, RADIATOR GRILLE

main53123-28030iZRR80¥3,310201401-201706

NO.1:REFER ILLUST.

main53123-28140iZRR80..X¥1,440201706

main53124-28030iZRR80¥3,310201401-201706

NO.2:REFER ILLUST.

53121FMOULDING, RADIATOR GRILLE, UPPER RH

main53121-28100iZRR80¥1,820201401-201706

53124CMOULDING, RADIATOR GRILLE, UPPER LH

main53122-28020iZRR80¥1,820201401-201706

7551

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010¥120

7 parts on this diagram · 2 diagrams in section
