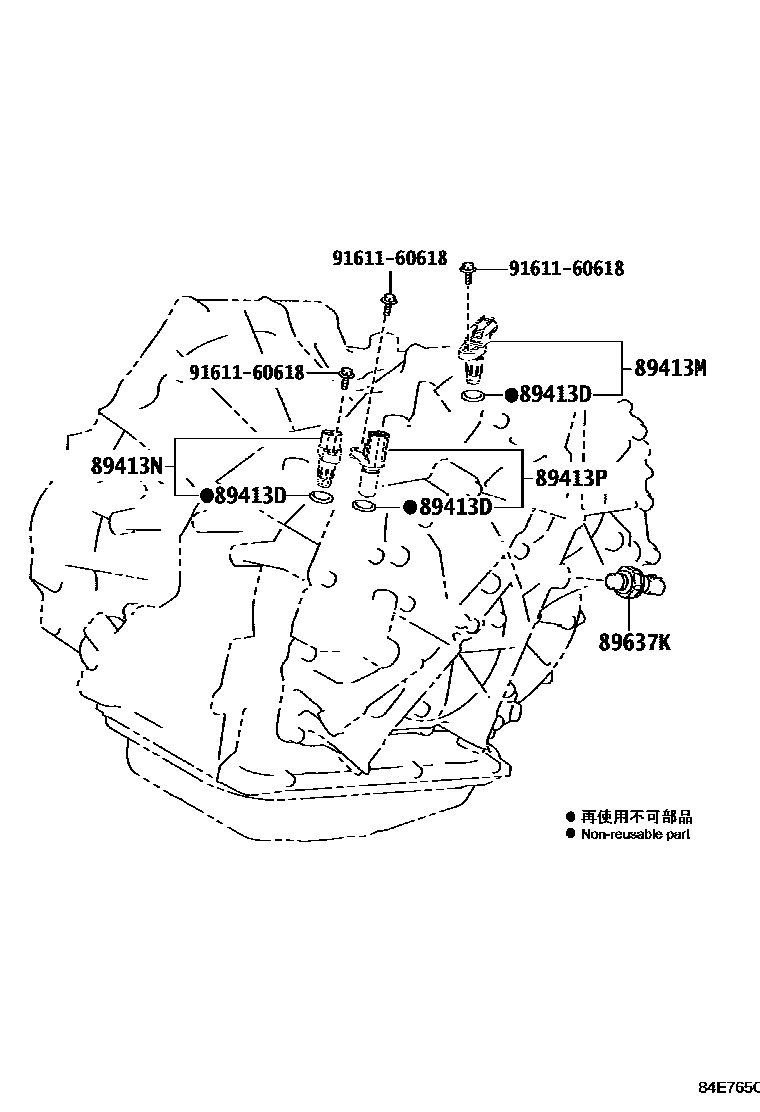

Toyota NOAH/VOXY — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iZRR80¥160201401-202112

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12020iZRR80¥4,210201401-202112

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-28010iZRR80¥5,300201401-201807

sub89413-28011¥4,010

main89413-28011iZRR80¥4,010201808-202112

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60020iZRR80¥5,300201401-201807

sub89413-60021¥4,010

main89413-60021iZRR80¥4,010201808-202112

89637KSENSOR, OIL PRESSURE

main89637-63010iZRR80¥5,700201401-202112

9161160618

main91611-60618¥120

6 parts on this diagram · 1 diagram in section
