Toyota NOAH/VOXY — OIL FILTER

04152ELEMENT KIT, OIL FILTER

main04152-37010i3ZRFAE..ZRR80¥840201401-201610

ELEMENT TYPE

15600AUNION(FOR OIL FILTER)

main90904-04006i3ZRFAE..ZRR80¥450201609-201706

CARTRIGE TYPE

15601FILTER SUB-ASSY, OIL

main90915-10003i3ZRFAE..ZRR80¥1,050201609-201706

CARTRIGE TYPE

sub90915-10009¥1,050

15609BRACKET SUB-ASSY, OIL FILTER

main15609-37010i3ZRFAE..ZRR80¥9,300201609-201708

CARTRIGE TYPE

sub15609-37060¥7,000

main15609-37041i3ZRFAE..ZRR80¥8,000201401-201610

ELEMENT TYPE

main15609-37060i3ZRFAE..ZRR80¥7,000201709

CARTRIGE TYPE

15609DPLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)

main90341-20002i3ZRFAE..ZRR80¥180201609-201706

CARTRIGE TYPE

main90341-20002i3ZRFAE..ZRR80¥180201401-201610

ELEMENT TYPE

15609EGASKET, W/HEAD STRAIGHT SCREW PLUG

main90430-20004i3ZRFAE..ZRR80¥200201401-201610

ELEMENT TYPE

main90430-20018i3ZRFAE..ZRR80¥90201609-201706

CARTRIGE TYPE

15609HRING, O(FOR OIL FILTER BRACKET)

main96723-24020i3ZRFAE..ZRR80¥140201401-201610

ELEMENT TYPE

main96723-24020i3ZRFAE..ZRR80¥140201609-201706

CARTRIGE TYPE

15620CAP ASSY, OIL FILTER

main15620-37010i3ZRFAE..ZRR80¥3,950201401-201610

ELEMENT TYPE

15620CGASKET(FOR OIL FILTER CAP)

main90301-69011i3ZRFAE..ZRR80201401-201610

ELEMENT TYPE

15679CLIP, OIL FILTER BRACKET

main15679-37010i3ZRFAE..ZRR80¥190201401-201408

ELEMENT TYPE

sub15679-37011¥130

main15679-37011i3ZRFAE..ZRR80¥130201409-201610

ELEMENT TYPE

91551F0835

main91551-F0835¥80

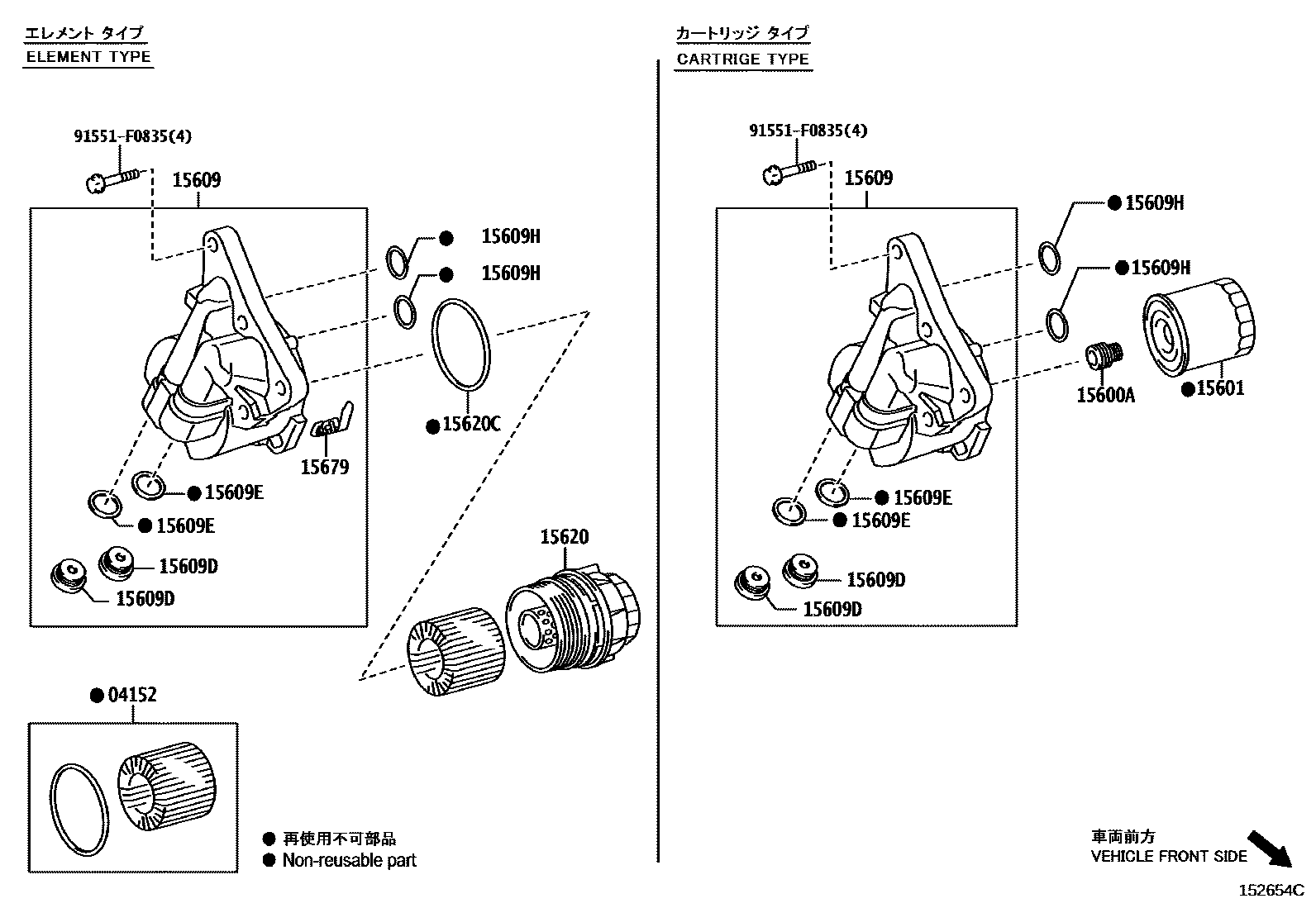

11 parts on this diagram · 1 diagram in section
