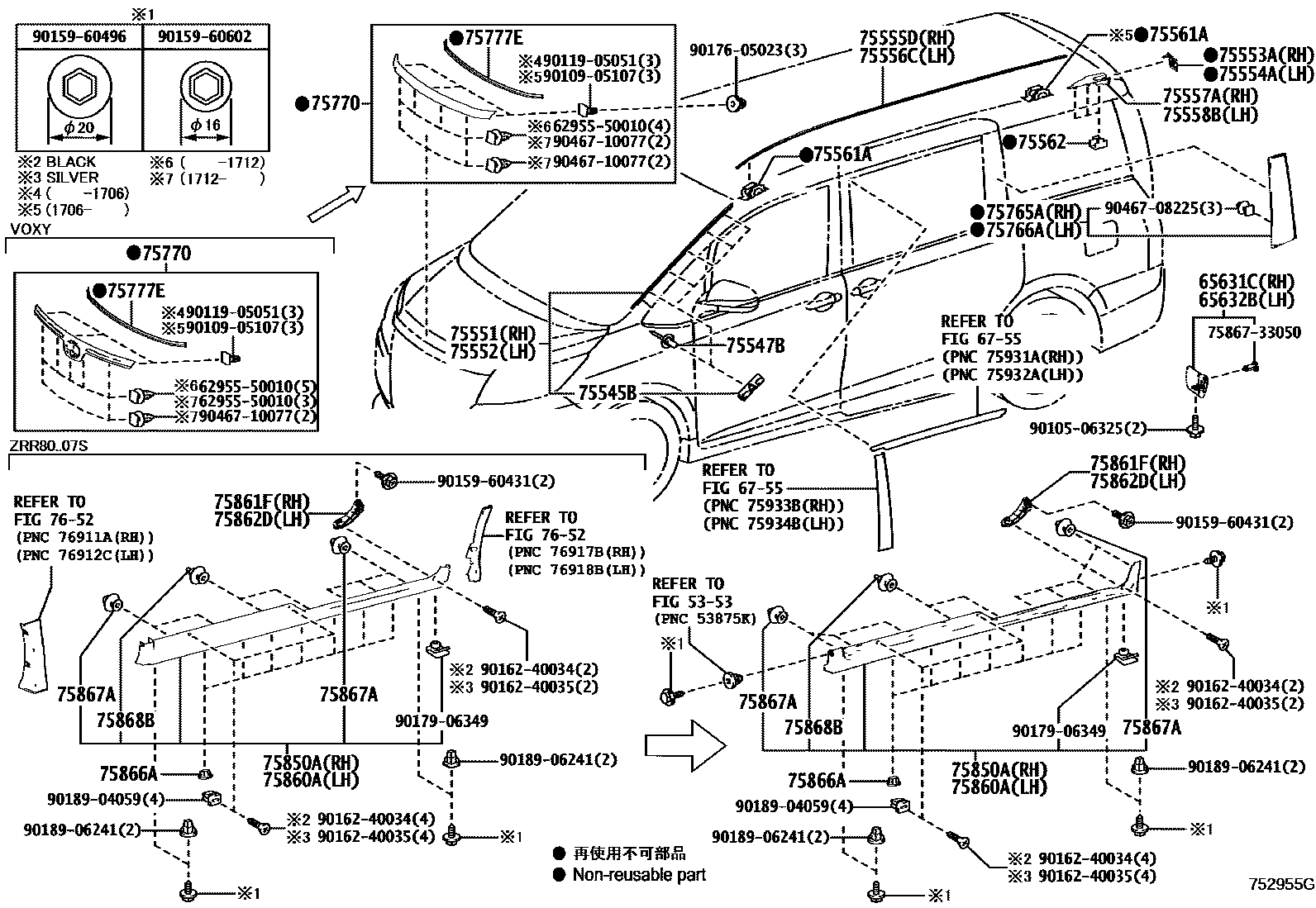

Toyota NOAH/VOXY — MOULDING
5353
65631CPLATE, REAR WHEEL HOUSE, FRONT RH
65632BPLATE, REAR WHELL HOUSE, FRONT LH
6755
75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75547BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75557AMOULDING, ROOF DRIP SIDE FINISH OUTER, RH
75558BMOULDING, ROOF DRIP SIDE FINISH OUTER, LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75562CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.2
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
75770MOULDING ASSY, HOOD, FRONT
PLATED
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
DEEP RED M.M.,3R9
AVANT-GARDE BRONZE ME.,4V8
PLATED
PLATED
75777EPAD, HOOD FRONT MOULDING
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
BLACK MATERIAL
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
WHITE PEARL CS.,070
LUXURY WHITE PEARL CS.GF.,086
SILVER ME.,1F7
BLACK,202
DEEP RED M.M.,3R9
ROSE CHAMPAGNE M.M.,4W4
AVANT-GARDE BRONZE ME.,4V8
OCEAN MINT ME.,789
BLACK MATERIAL
75861FRETAINER, ROCKER PANEL MOULDING, RH
75862DRETAINER, ROCKER PANEL MOULDING, LH
75866ARETAINER, ROCKER PANEL MOULDING
75867ACLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
7652
6295550010SEAL, ROOF SIDE VENT
7586733050MOULDING, FRONT PANEL
9010506325
9010905107
9011905051
9015960431
9015960496
9015960602
9016240034
9016240035
9017605023
9017906349
9018904059
9018906241
9046708225
9046710077
44 parts on this diagram · 1 diagram in section
