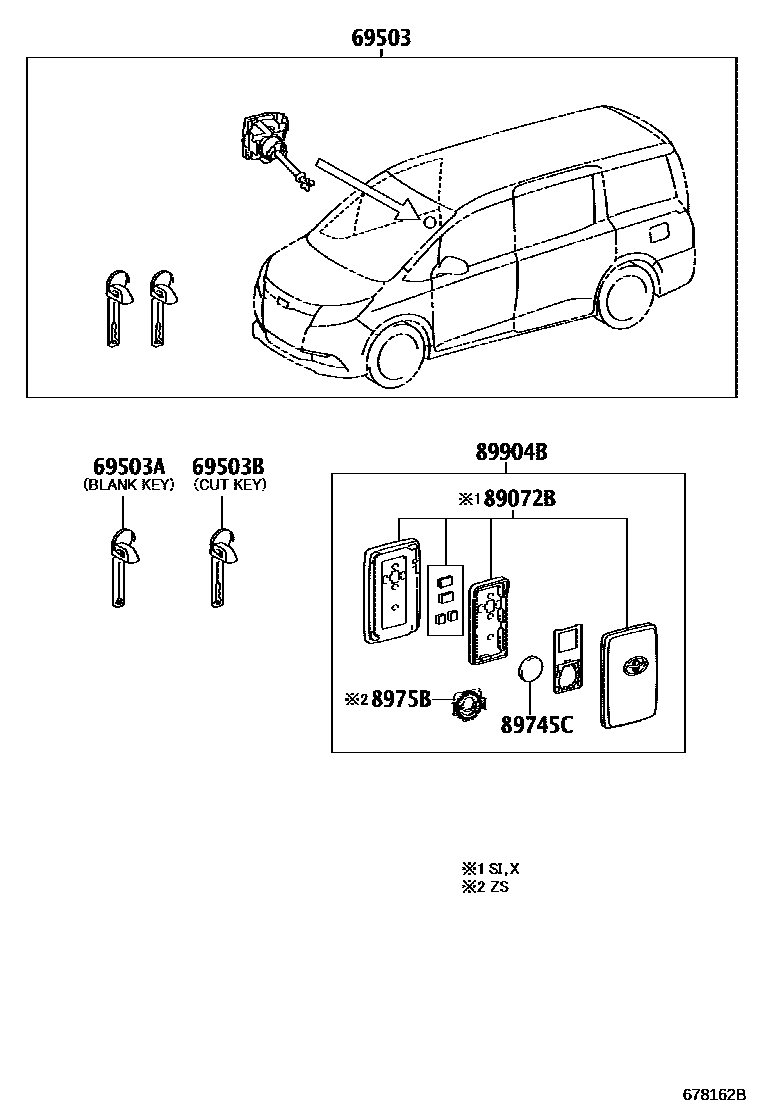

Toyota NOAH/VOXY — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-28D80iZRR80201401-201706

69503AKEY, BLANK

main69515-33100iZRR80¥7,200201401-201706

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33090iZRR80¥7,900201401-201706

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-28590iZRR80..X¥4,380201401-201706

main89072-28600iZRR80..SI¥5,300201401-201910

main89072-58200iZRR80..SI¥4,380201911

89745CBATTERY, TRANSMITTER

main89745-45010iZRR80¥440201401-201706

CR2032

sub89745-50020¥440

main89745-50020iZRR80..ZS¥440201706

CR2032

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iZRR80..ZS¥80201706

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-28550iZRR80..X201401-201406

main89904-28551iZRR80..X201407-201706

main89904-28570iZRR80..SI201401-201406

main89904-28571iZRR80..SI201407-201706

main89904-28650iZRR80..X¥18,300201706

main89904-28660iZRR80..SI¥20,000201706

main89904-28670iZRR80..ZS201706

sub89904-28671

7 parts on this diagram · 1 diagram in section
