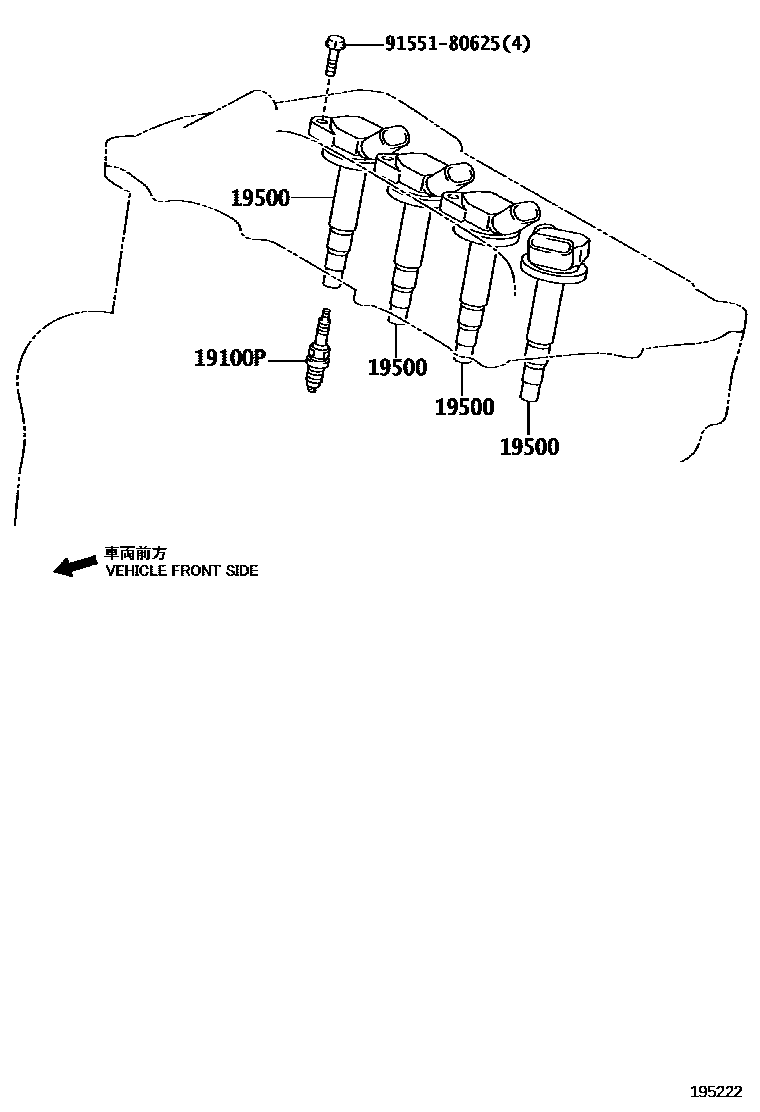

Toyota NOAH/VOXY — IGNITION COIL & SPARK PLUG / GLOW PLUG

19100PPLUG, SPARK

main90919-01253i3ZRFAE..ZRR80¥2,000201401-201503

SC20HR11

sub90919-01275¥2,000

main90919-01275i3ZRFAE..ZRR80¥2,000201504-201706

SC16HR11

19500COIL ASSY, IGNITION

main90919-02258i3ZRFAE..ZRR80¥7,500201401-201706

9155180625

main91551-80625¥60

3 parts on this diagram · 1 diagram in section
