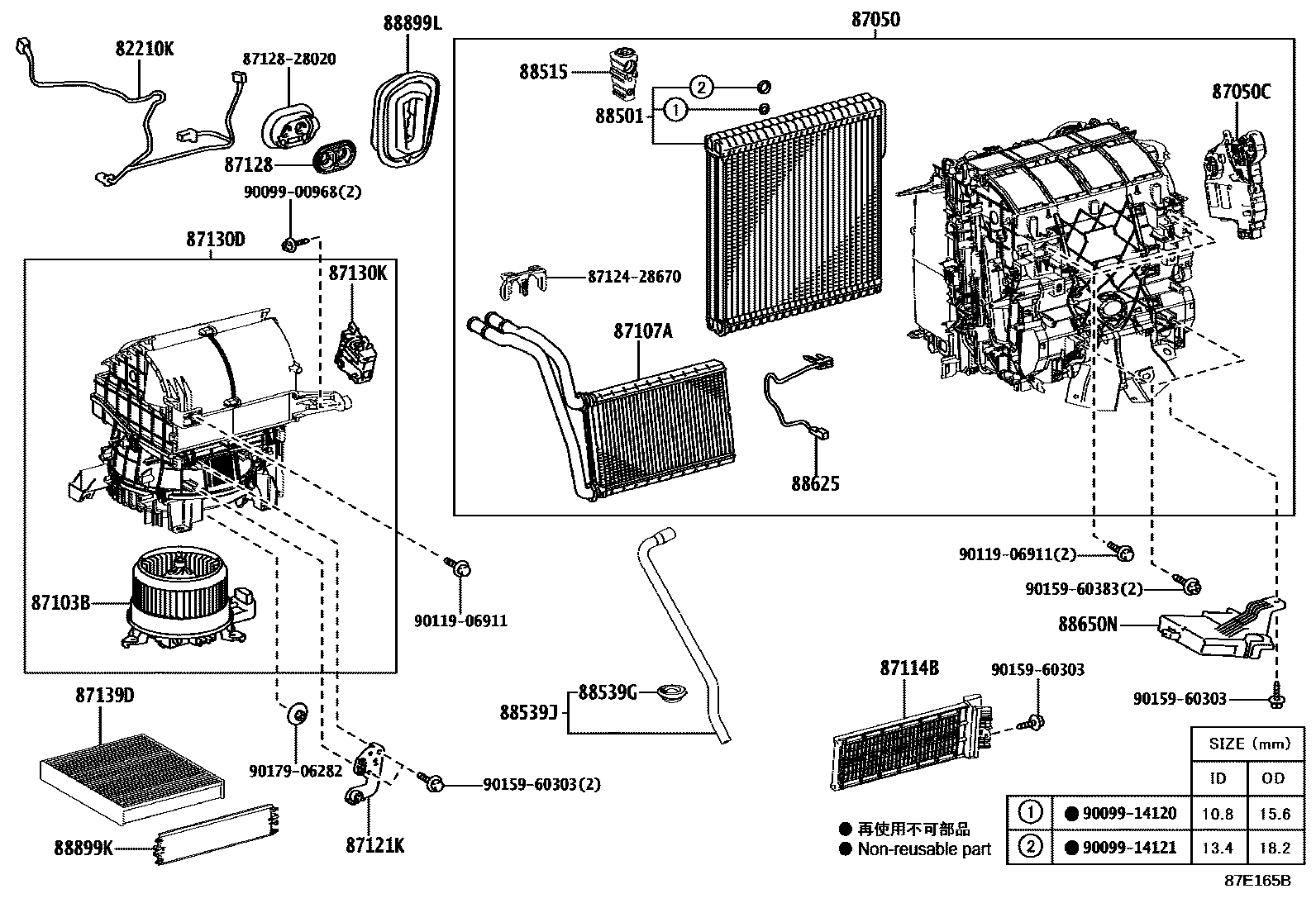

Toyota NOAH/VOXY — HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT 0002 1REAR,W/O(HEATER) 0003 1REAR,W(HEATER)

82210KHARNESS ASSY, AIR CONDITIONER

main82212-28080iZRR80201401-201706

87050RADIATOR ASSY, AIR CONDITIONER

main87050-28690iZRR80¥60,600201401-201403

main87050-28700iZRR80¥61,100201403-201706

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-48170iZRR80201401-201706

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-28120iZRR80201401-201406

sub87103-48160

main87103-48160iZRR80201407-201706

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-28320iZRR80201401-201706

87114BCOVER, HEATER

main87114-48110iZRR80201401-201706

87121KBRACKET, HEATER

main87114-28200iZRR80201401-201706

87128GROMMET, HEATER

main87128-28010iZRR80¥400201401-201706

87130DBLOWER ASSY

main87130-28590iZRR80201401-201706

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28240iZRR80201401-201706

87139DELEMENT, AIR REFINER

main87139-28020iZRR80¥2,000201401-201706

POLLEN FILTER

main87139-58010iZRR80¥4,000201401-201706

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-12620iZRR80..ZS202101-202112

main88501-28420iZRR80..ZS201401-202101

main88501-28430iZRR80..NOAH201403-202101

sub88501-12550

main88501-76020iZRR80..NOAH202101-202112

88515VALVE, COOLER EXPANSION

main88515-48110iZRR80¥6,300201401-201706

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90099-32129iZRR80201401-201706

88539JHOSE, DRAIN COOLER

main88539-28400iZRR80201401-201706

88625THERMISTOR, COOLER, NO.1

main88620-28050iZRR80¥0201401-201403

main88620-28060iZRR80201403-201706

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-28A50iZRR80201401-201501

sub88650-28C80

main88650-28A51iZRR80201501-201706

sub88650-28D80

main88650-28A52iZRR80..NOAH201706-201802

sub88650-28A53

main88650-28A53iZRR80..NOAH201803

main88650-28B94iZRR80..ZS201706-201802

sub88650-28B95

main88650-28B95iZRR80..ZS201803

88899KPLATE, COVER

main88899-28620iZRR80¥0201401-201709

main88899-47120iZRR80¥0201710

88899LPARTS, COOLING UNIT

main88899-28660iZRR80201401-201706

8712428670CLAMP, HEATER

main87124-28670

8712828020GROMMET, HEATER

main87128-28020

9009900968

main90099-00968

9009914120

main90099-14120¥0

9009914121

main90099-14121

9011906911

main90119-06911¥80

9015960303

main90159-60303¥70

9015960383

main90159-60383¥70

9017906282

main90179-06282¥90

28 parts on this diagram · 3 diagrams in section
