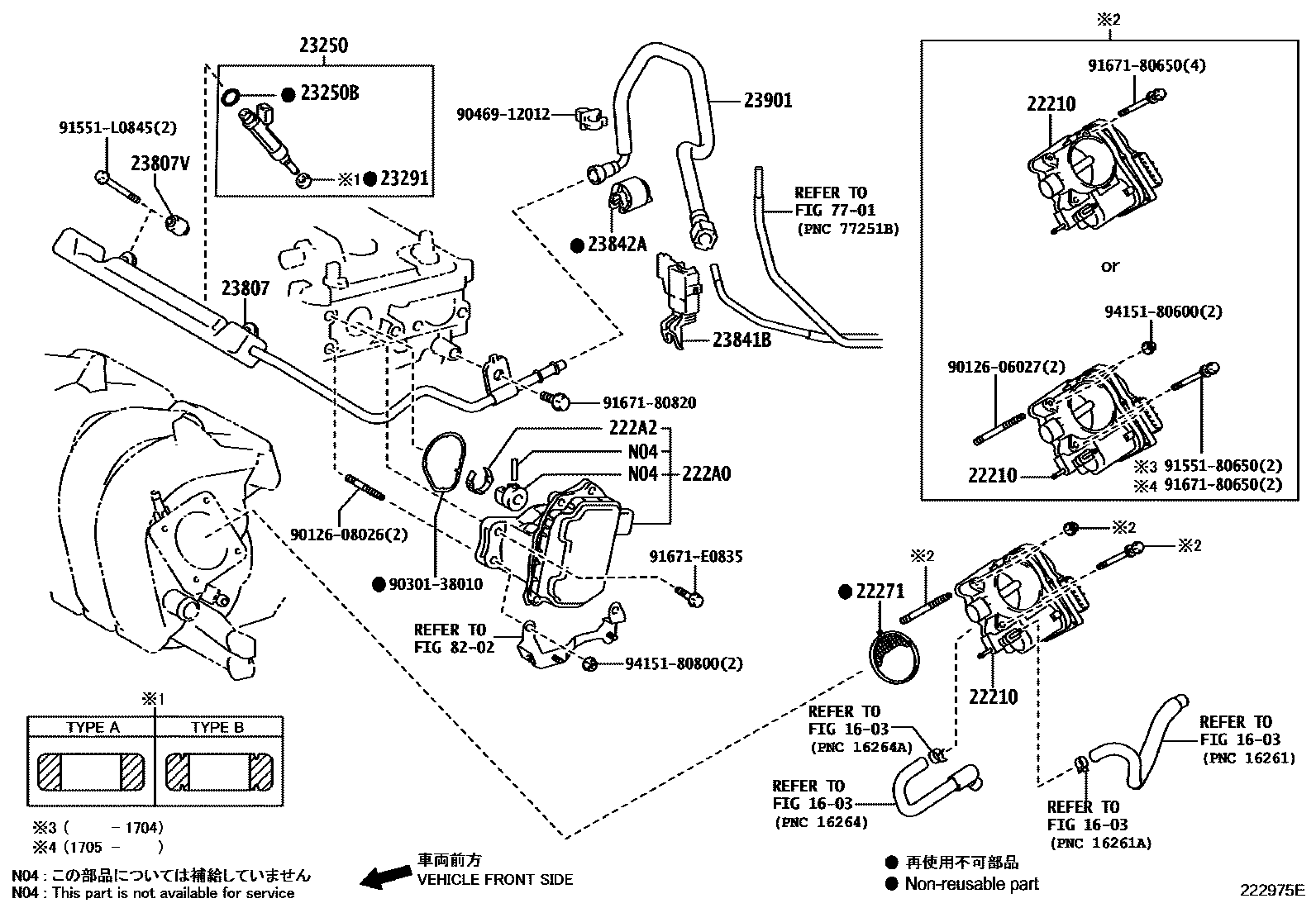

Toyota NOAH/VOXY — FUEL INJECTION SYSTEM

1603

22210BODY ASSY, THROTTLE

main22030-37050i3ZRFAE..ZRR80¥52,700201401-201706

22271GASKET, THROTTLE BODY

main22271-75031i3ZRFAE..ZRR80¥250201401-201706

222A0CONTROLLER ASSY, CONTINUOUSLY VARIABLE VALVE LIFT

main222A0-37020i3ZRFAE..ZRR80¥116,000201401-201406

sub222A0-37021¥116,000

main222A0-37021i3ZRFAE..ZRR80¥116,000201407-201607

sub222A0-37022¥96,300

main222A0-37022i3ZRFAE..ZRR80¥96,300201608-201708

sub222A0-37023¥96,300

main222A0-37023i3ZRFAE..ZRR80¥96,300201709-201811

sub222A0-37024¥96,300

main222A0-37024i3ZRFAE..ZRR80¥96,300201812-202001

sub222A0-37025¥72,800

main222A0-37025i3ZRFAE..ZRR80¥72,800202002

222A2CLIP, VALVE LIFT CONTROL ACTUATOR CONNECTOR

main222A2-37011i3ZRFAE..ZRR80¥130201401-201706

23250INJECTOR ASSY, FUEL

main23209-39235i3ZRFAE..ZRR80¥13,900201401-201706

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i3ZRFAE..ZRR80¥140201401-201706

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i3ZRFAE..ZRR80¥240201401-201706

TYPE A:REFER ILLUST.

main23291-28020i3ZRFAE..ZRR80¥310201401-201706

TYPE B:REFER ILLUST.

23807PIPE SUB-ASSY, FUEL DELIVERY

main23814-37051i3ZRFAE..ZRR80¥8,900201401-201706

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-37010i3ZRFAE..ZRR80¥240201401-201706

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-37080i3ZRFAE..ZRR80¥500201401-201601

sub23841-37081¥310

main23841-37081i3ZRFAE..ZRR80¥310201602-201706

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i3ZRFAE..ZRR80¥500201401-201706

23901TUBE SUB-ASSY, FUEL

main23901-37140i3ZRFAE..ZRR80¥4,500201401-201706

7701

8202

9012606027

main90126-06027¥80

9012608026

main90126-08026¥210

9030138010

main90301-38010¥170

9046912012

main90469-12012¥210

9155180650

main91551-80650¥80

91551L0845

main91551-L0845¥100

9167180650

main91671-80650¥80

9167180820

main91671-80820¥80

91671E0835

main91671-E0835¥100

9415180600

main94151-80600¥60

9415180800

main94151-80800¥80

26 parts on this diagram · 1 diagram in section
