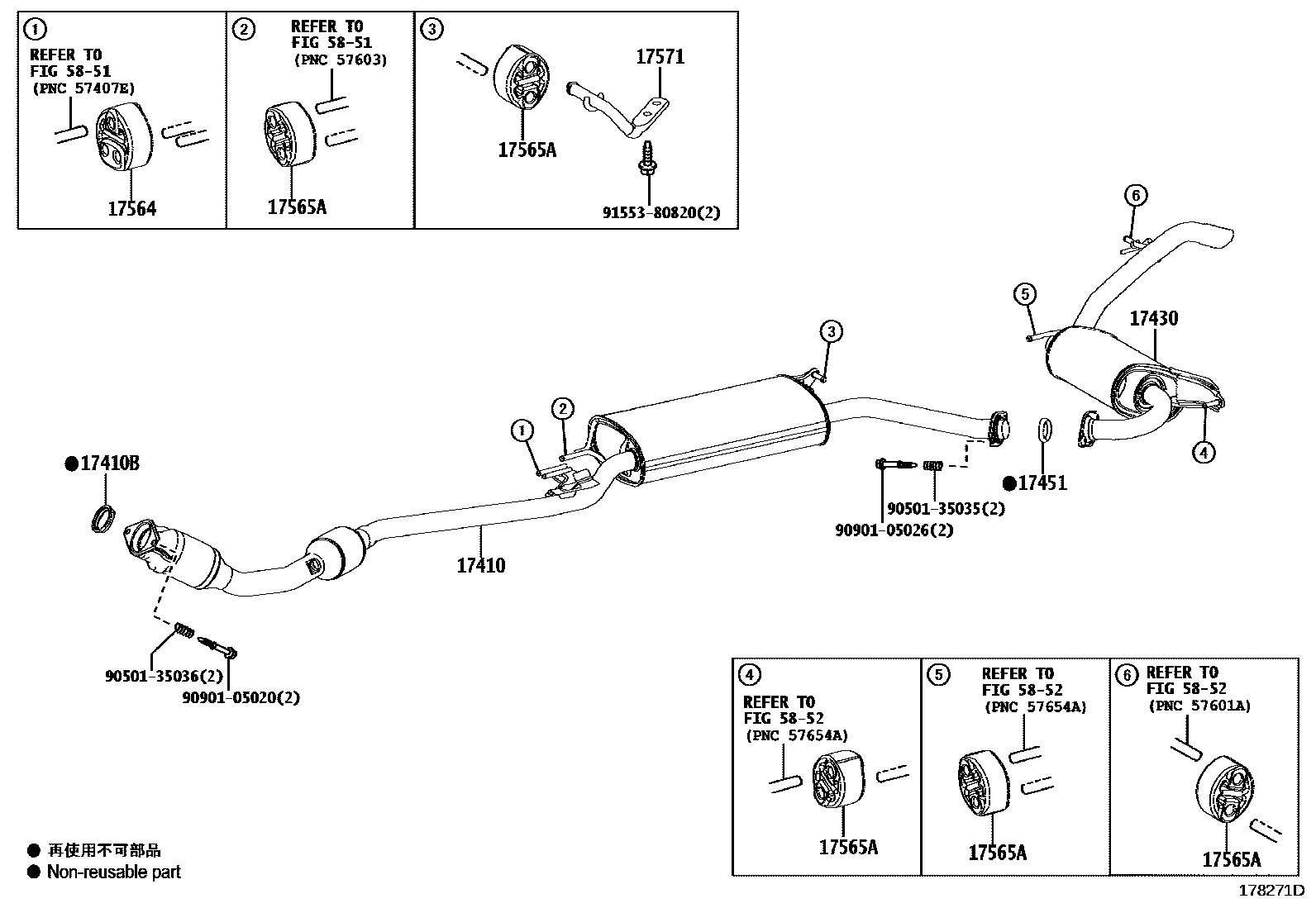

Toyota NOAH/VOXY — EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37841i3ZRFAE..ZRR80¥122,000201401-201706

main17410-37841i3ZRFAE..ZRR80¥122,000201706

17410BGASKET, EXHAUST PIPE

main17451-28040i3ZRFAE..ZRR80¥1,510201401-201706

sub17451-28041¥1,510

main17451-28040i3ZRFAE..ZRR80¥1,510201706

sub17451-28041¥1,510

17430PIPE ASSY, EXHAUST, TAIL

main17430-37581i3ZRFAE..ZRR80¥23,300201401-201706

main17430-37581i3ZRFAE..ZRR80¥23,300201706

17451GASKET, EXHAUST PIPE

main17451-28032i3ZRFAE..ZRR80¥1,360201401-201706

main17451-28032i3ZRFAE..ZRR80¥1,360201706

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-64180i3ZRFAE..ZRR80¥970201401-201706

main17565-64180i3ZRFAE..ZRR80¥970201706

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-22040i3ZRFAE..ZRR80¥670201401-201706

main17565-22040i3ZRFAE..ZRR80¥670201706

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-37091i3ZRFAE..ZRR80¥740201401-201706

main17571-37091i3ZRFAE..ZRR80¥740201706

5851

5852

9050135035

main90501-35035¥200

9050135036

main90501-35036¥200

9090105020

main90901-05020¥230

9090105026

main90901-05026¥310

9155380820

main91553-80820¥80

14 parts on this diagram · 1 diagram in section
