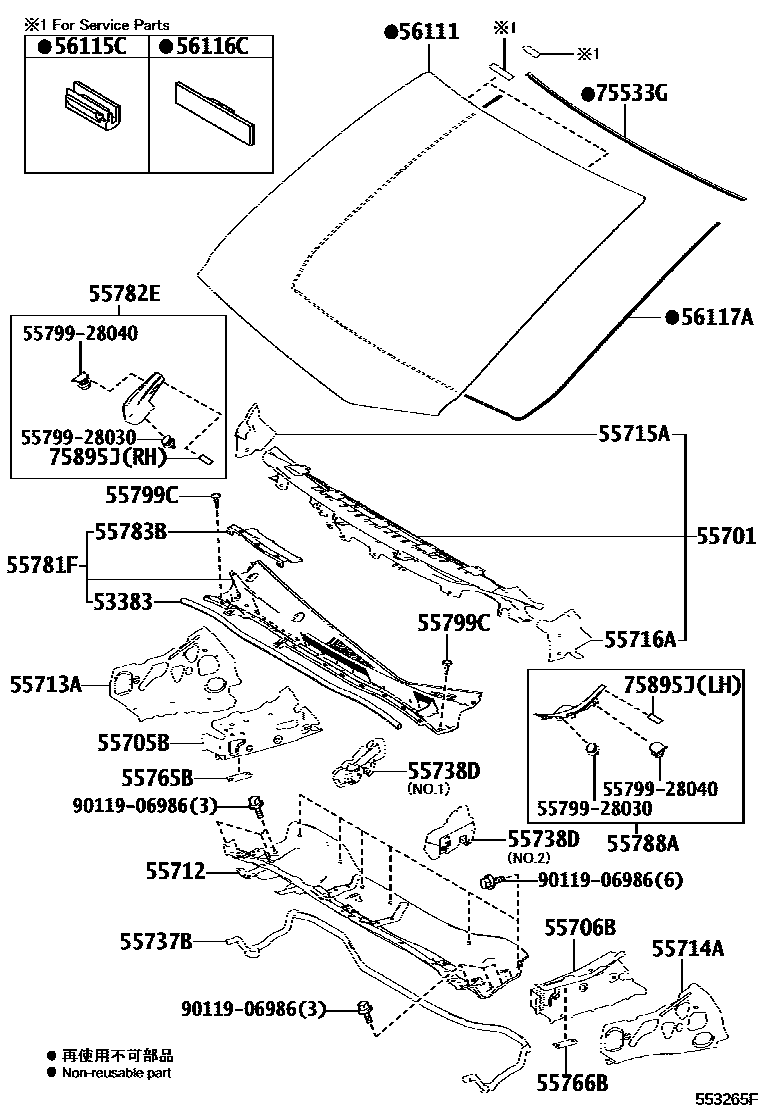

Toyota NOAH/VOXY — COWL PANEL & WINDSHIELD GLASS
53383SEAL, HOOD TO COWL TOP
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55712PANEL, COWL TOP OUTSIDE, FRONT
55713APANEL, COWL TOP SIDE, RH
55714APANEL, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55738DSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
NO.1
NO.2
55765BBRACKET, HOOD DAMPER MOUNTING
55766BBRACKET, HOOD DAMPER MOUNTING
55781FLOUVER, COWL TOP VENTILATOR
55782EPROTECTOR, COWL TOP VENTILATOR LOUVER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55788APROTECTOR, COWL TOP VENTILATOR LOUVER
55799CCLIP, COWL TOP VENTILATOR LOUVER
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=3234
75533GMOULDING, WINDSHIELD, OUTSIDE
75895JTAPE, MOULDING, NO.1
RH
LH
5579928030COVER, WIPER MOTOR
5579928040COVER, WIPER MOTOR
9011906986
27 parts on this diagram · 1 diagram in section
