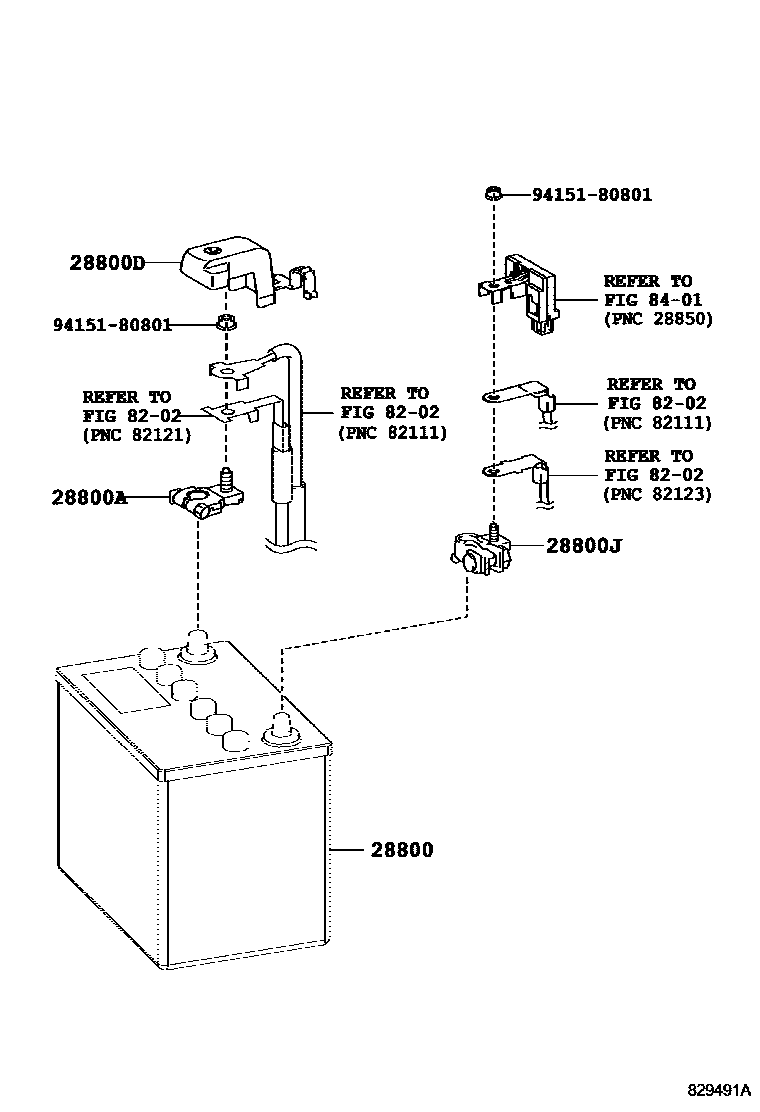

Toyota NOAH/VOXY — BATTERY & BATTERY CABLE

28800BATTERY

main28800-47050i3ZRFAE..ZRR80201401-201403

Q-55

sub28800-47051

main28800-47080i3ZRFAE..ZRR80¥0201403-201706

S-85

sub28800-36111

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i3ZRFAE..ZRR80¥850201401-201706

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-28280i3ZRFAE..ZRR80¥600201401-201706

28800JTERMINAL, BATTERY NEGATIVE

main90982-06056i3ZRFAE..ZRR80¥850201401-201706

8202

8401

9415180801

main94151-80801¥80

7 parts on this diagram · 1 diagram in section
