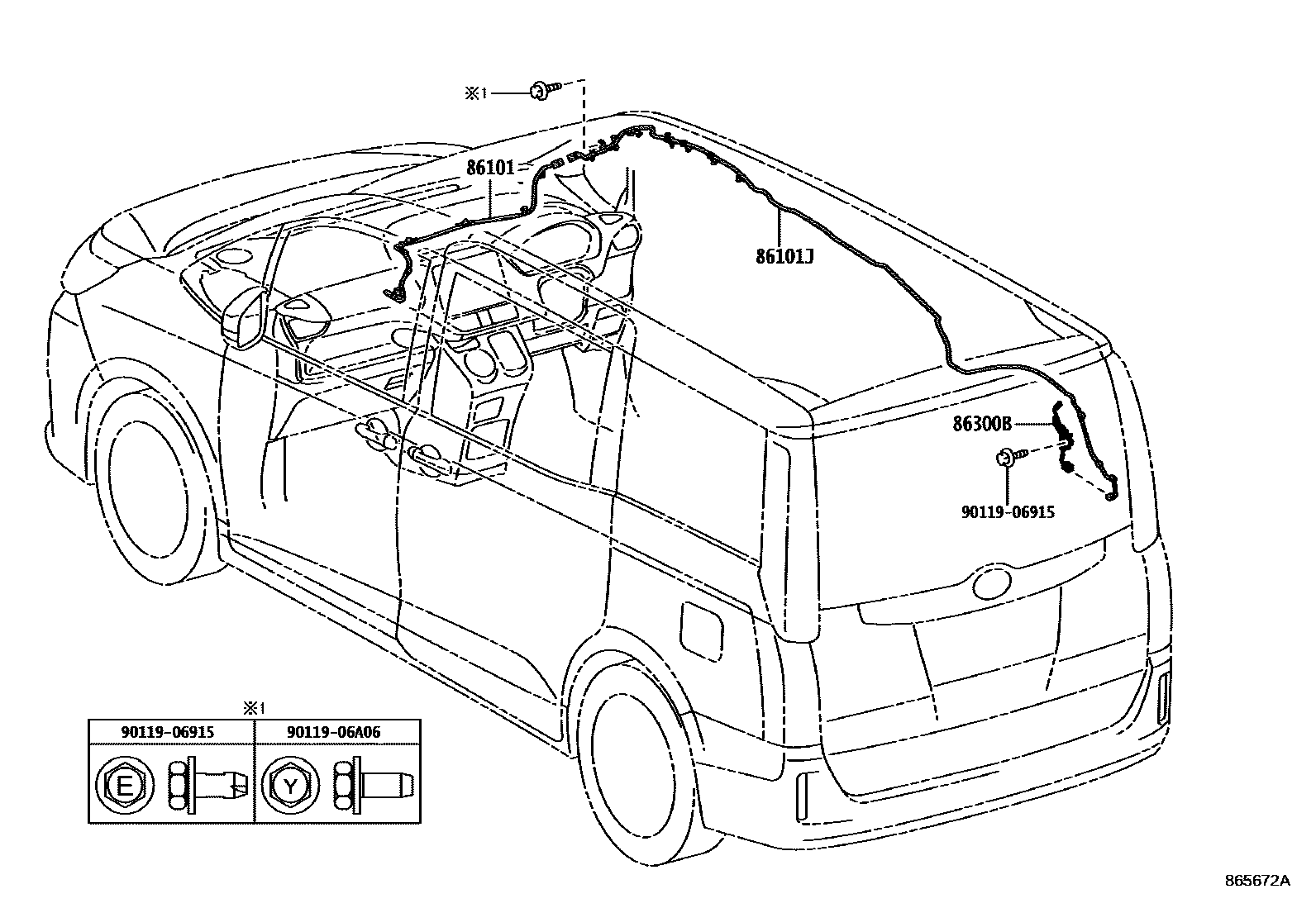

Toyota NOAH/VOXY — ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-28B30iZRR80¥3,960201706

main86101-28B30iZRR80¥3,960201401-201706

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-28B50iZRR80..X,ZS¥7,500201706-202010

sub86101-28B60¥6,200

main86101-28B50iZRR80..X¥7,500201401-201706

sub86101-28B60¥6,200

main86101-28B60iZRR80..SI¥6,200201401-201706

main86101-28B60iZRR80..SI¥6,200201706

main86101-28B60iZRR80..X,ZS¥6,200202011

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-28590iZRR80201401-201706

main86300-28590iZRR80201706

9011906915

main90119-06915¥60

9011906A06

main90119-06A06¥60

5 parts on this diagram · 1 diagram in section
