Toyota NOAH/VOXY — AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-28330iZRR80¥54,700201401-201706

main89170-28330iZRR80..NOAH¥54,700201706-201901

main89170-28360iZRR80..ZS¥54,700201706-201901

main89170-28440iZRR80..NOAH¥45,500201901

main89170-28450iZRR80..ZS¥45,500201901

89173ASENSOR, AIRBAG, FRONT RH

main89173-29265iZRR80¥9,100201401-201706

main89173-29265iZRR80¥9,100201706

89174ASENSOR, AIRBAG, FRONT LH

main89173-29265iZRR80¥9,100201401-201706

main89173-29265iZRR80¥9,100201706

89835SENSOR, DOOR SIDE AIRBAG, LH

main89831-28050iZRR80..ZS¥8,200201706

89837SENSOR, FRONT FLOOR SIDE AIRBAG

main89837-28040iZRR80..ZS¥8,200201706

89837ASENSOR, REAR FLOOR SIDE AIRBAG

main89837-28040iZRR80..ZS¥8,200201706

89839ACOVER, REAR FLOOR SIDE AIRBAG SENSOR

main89839-28020iZRR80..ZS¥970201706

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-28030iZRR80..ZS¥8,200201706

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-28030iZRR80..ZS¥8,200201706

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-28040iZRR80..ZS¥8,200201706

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-28040iZRR80..ZS¥8,200201706

89865SENSOR, DOOR SIDE AIRBAG, RH

main89831-28050iZRR80..ZS¥8,200201706

9011908C89

main90119-08C89¥80

9046709077

main90467-09077¥70

91553A0620

main91553-A0620¥60

91553A0625

main91553-A0625¥60

9415180600

main94151-80600¥60

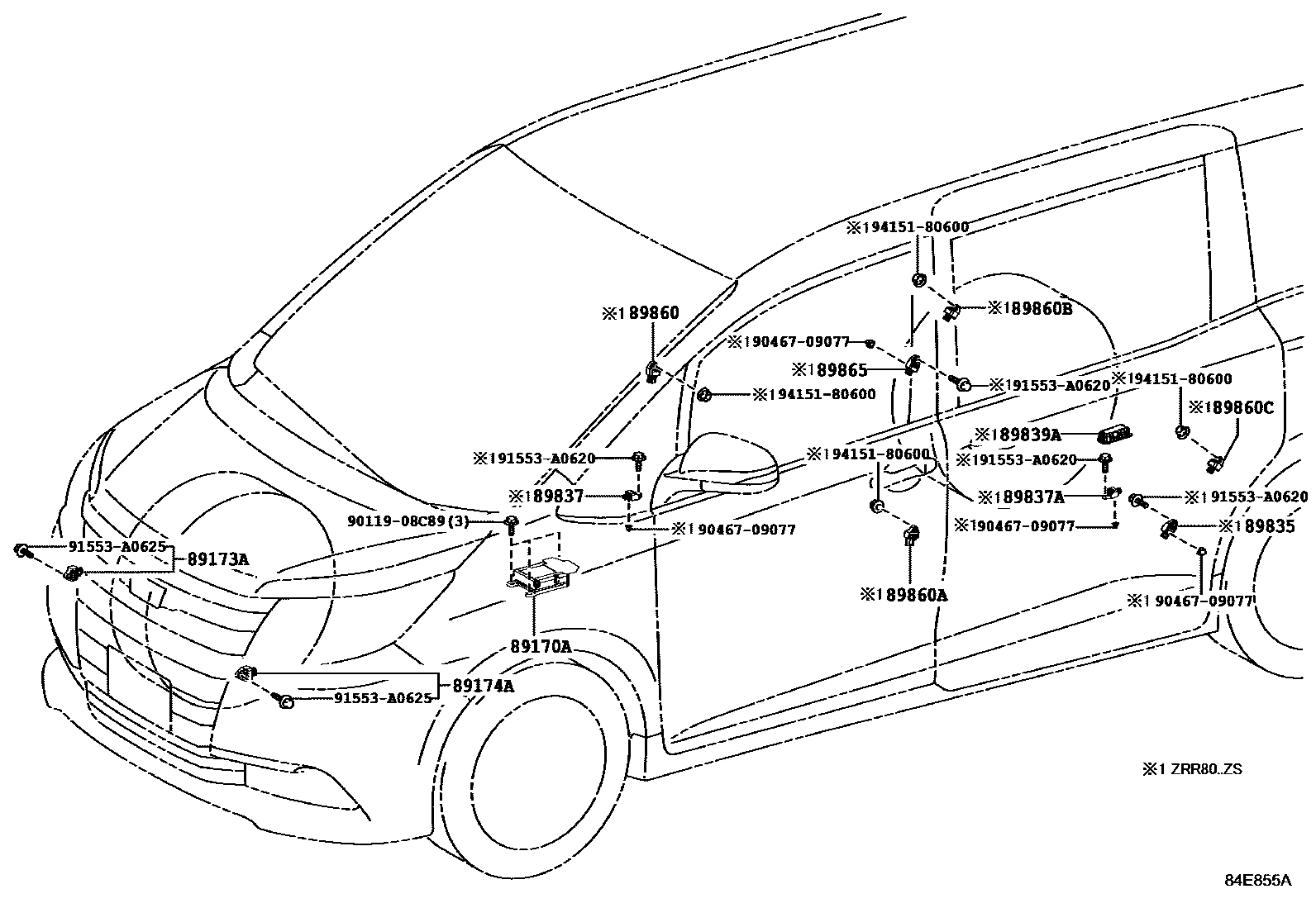

17 parts on this diagram · 1 diagram in section
