Toyota MIRAI — TELEPHONE & MAYDAY

0001 1 0002 1

5501

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-62010iJPD10¥41,800201506-201801

main861C0-62020iJPD10¥41,800201801-202005

861C7CORD, MOBILE WIRELESS CHARGER

main861C7-62010iJPD10¥980201506-202005

86719BRACKET, TELEPHONE

main86719-62090iJPD10201801-202005

HAWAII SPEC

86719ABRACKET, TELEPHONE NO.1

main86719-62010iJPD10201506-201801

HAWAII SPEC

86719BBRACKET, TELEPHONE NO.2

main86719-62020iJPD10201506-201801

HAWAII SPEC

86719CBRACKET, TELEPHONE NO.3

main86719-62030iJPD10201506-201801

HAWAII SPEC

86719FBRACKET, TELEPHONE NO.4

main86719-62060iJPD10201506-201801

HAWAII SPEC

86741ATRANSCEIVER, TELEMATICS

main86740-62030iJPD10201801-202005

HAWAII SPEC

main86741-53075iJPD10201506-201801

HAWAII SPEC

sub86741-53077

86777BATTERY, MAYDAY

main86777-76040iJPD10¥21,000201506-201801

HAWAII SPEC

9011906915

main90119-06915¥60

9015350010

main90153-50010¥70

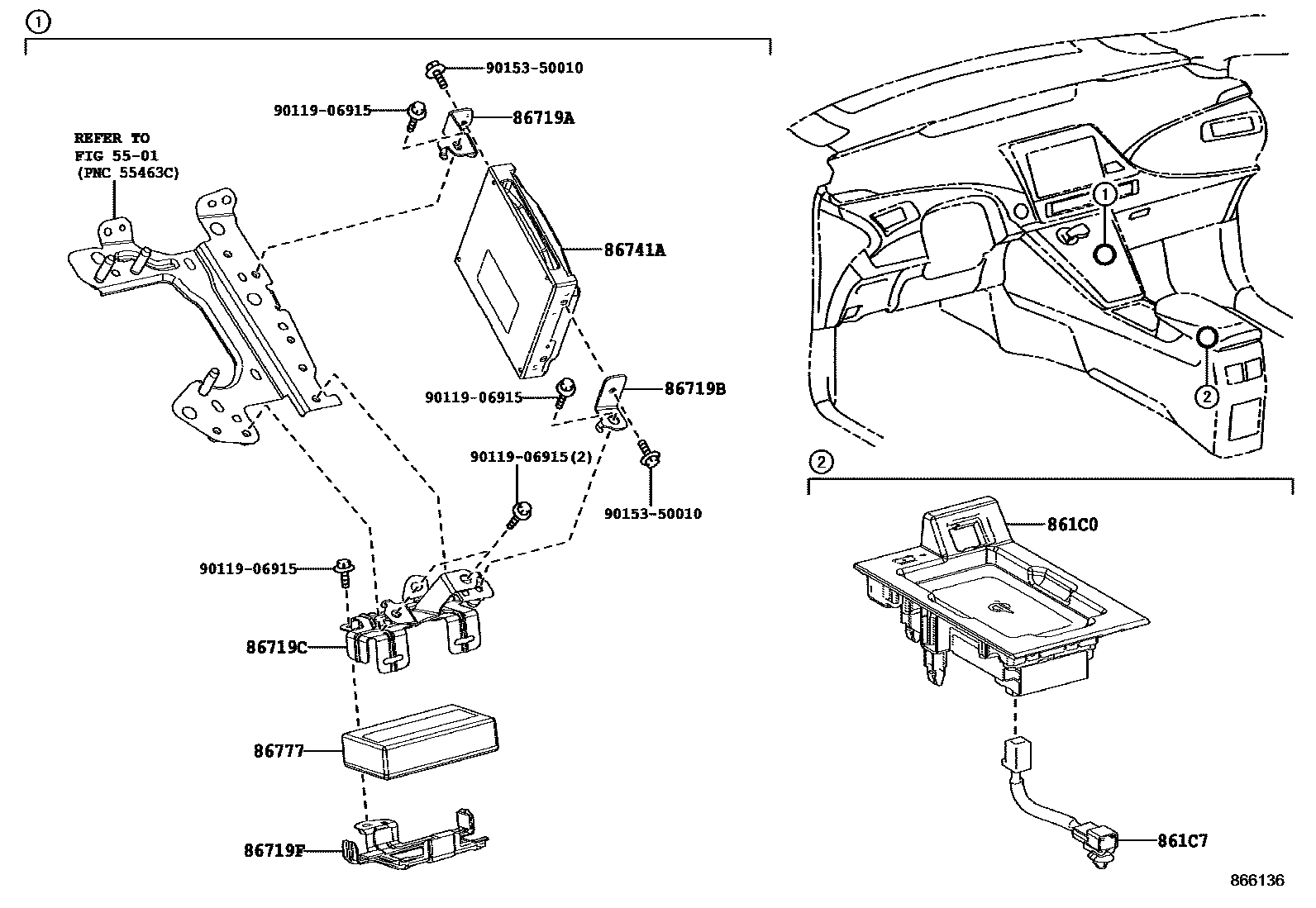

12 parts on this diagram · 2 diagrams in section
