Toyota MIRAI — SWITCH & RELAY & COMPUTER

0001 1MOTOR COMPARTMENT 1/2 0002 1MOTOR COMPARTMENT 2/2 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1SEAT 0007 1DOOR,ROOF,FLOOR & LUGGAGE

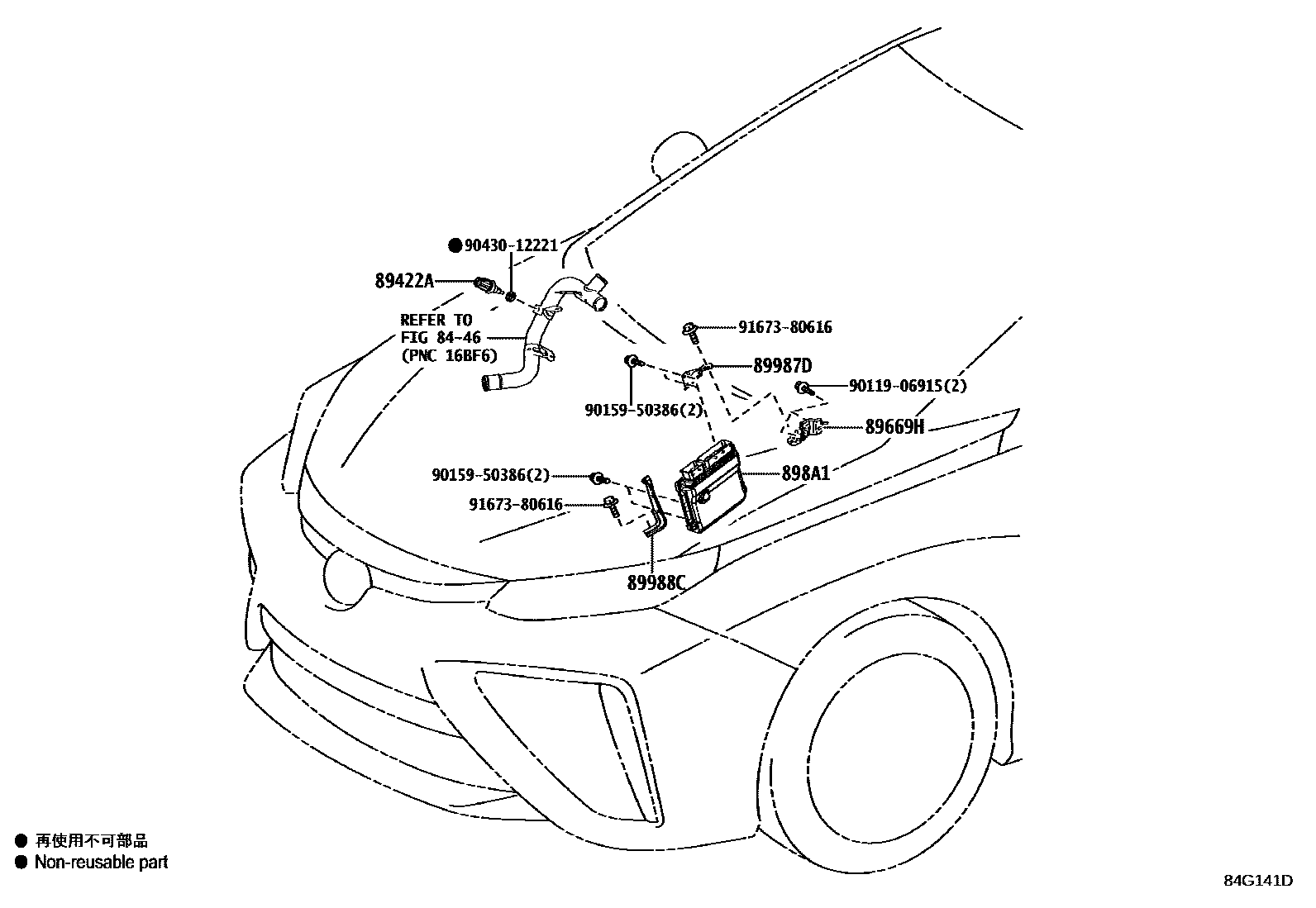

8446

89422ASENSOR, WATER TEMPERATURE

main89422-33030iJPD10¥2,410201506-202005

89669HBRACKET, FC CONTROL COMPUTER, NO.3

main89669-47070iJPD10¥680201506-202005

898A1COMPUTER, FC CONTROL

main898A1-62020iJPD10¥41,800201506-201606

sub898A1-62021¥41,800

main898A1-62021iJPD10¥41,800201607-201611

sub898A1-62022¥34,800

main898A1-62022iJPD10¥34,800201612-201706

sub898A1-62023¥34,800

main898A1-62023iJPD10¥34,800201707-201710

sub898A1-62024¥34,800

main898A1-62024iJPD10¥34,800201711-201806

sub898A1-62025¥34,800

main898A1-62025iJPD10¥34,800201807-201907

sub898A1-62026¥34,800

main898A1-62026iJPD10¥34,800201908-202005

89987DBRACKET, FC CONTROL COMPUTER, NO.1

main89987-75010iJPD10¥490201506-202004

89988CBRACKET, FC CONTROL COMPUTER, NO.2

main89988-75020iJPD10¥710201506-202004

9011906915

main90119-06915¥60

9015950386

main90159-50386¥60

9043012221

main90430-12221¥200

9167380616

main91673-80616¥60

10 parts on this diagram · 7 diagrams in section
