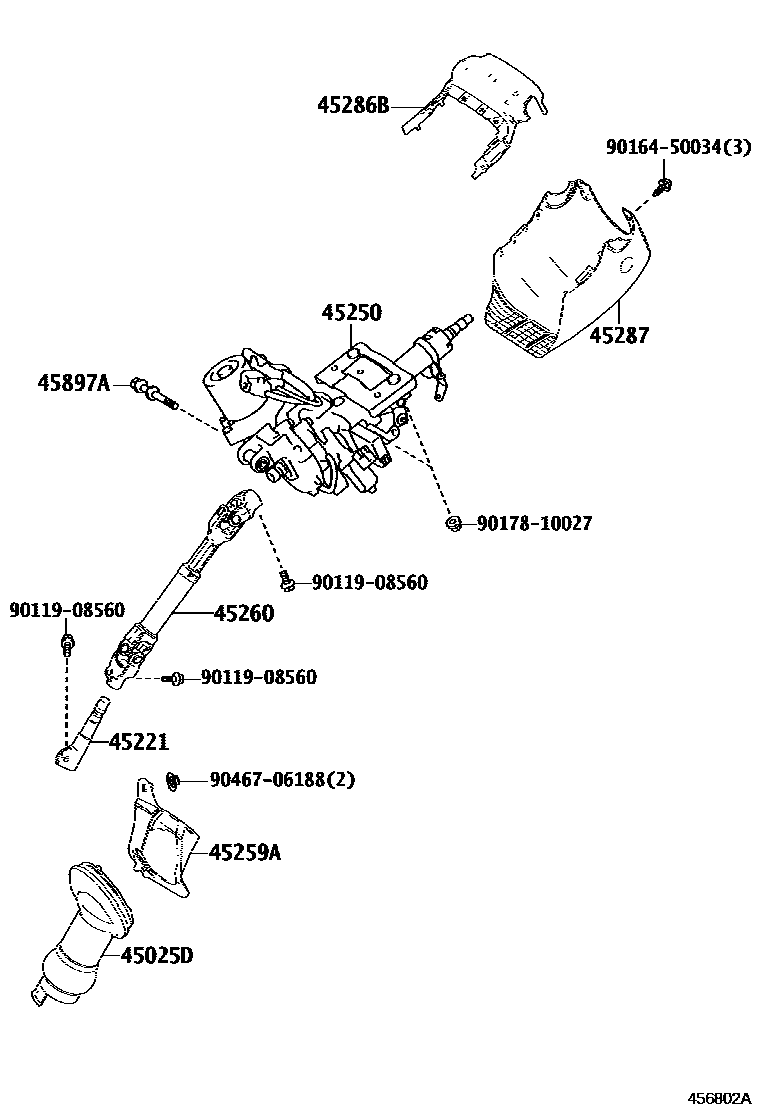

Toyota MIRAI — STEERING COLUMN & SHAFT

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-75010iJPD10201506-202005

45221SHAFT, STEERING INTERMEDIATE

main45221-62051iJPD10¥10,500201506-202005

45250COLUMN ASSY, STEERING

main45250-62050iJPD10201506-202005

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-75011iJPD10201506-202005

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-62020iJPD10201506-202005

45286BCOVER, STEERING COLUMN, UPR

main45286-33270-C0iJPD10201506-202005

BLACK,TRIM0#,8#

45287COVER, STEERING COLUMN, LWR

main45287-33360-C0iJPD10201506-202005

BLACK,TRIM0#,8#

45897ABOLT, TILT STEERING PAWL SET

main90119-10981iJPD10¥190201506-202005

9011908560

main90119-08560¥110

9016450034

main90164-50034¥70

9017810027

main90178-10027¥100

9046706188

main90467-06188¥160

12 parts on this diagram · 1 diagram in section
