Toyota MIRAI — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-62010iJPD10¥17,300201506-202005

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-62010iJPD10¥17,300201506-202005

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-62010iJPD10¥9,800201506-202005

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-62010iJPD10¥9,800201506-202005

61311PILLAR, REAR RH

main61311-62010iJPD10¥16,700201506-202005

61312PILLAR, REAR LH

main61312-62010iJPD10¥16,700201506-202005

61611PANEL, QUARTER, RH

main61611-62020iJPD10201506-202005

61612PANEL, QUARTER, LH

main61612-62020iJPD10201506-202005

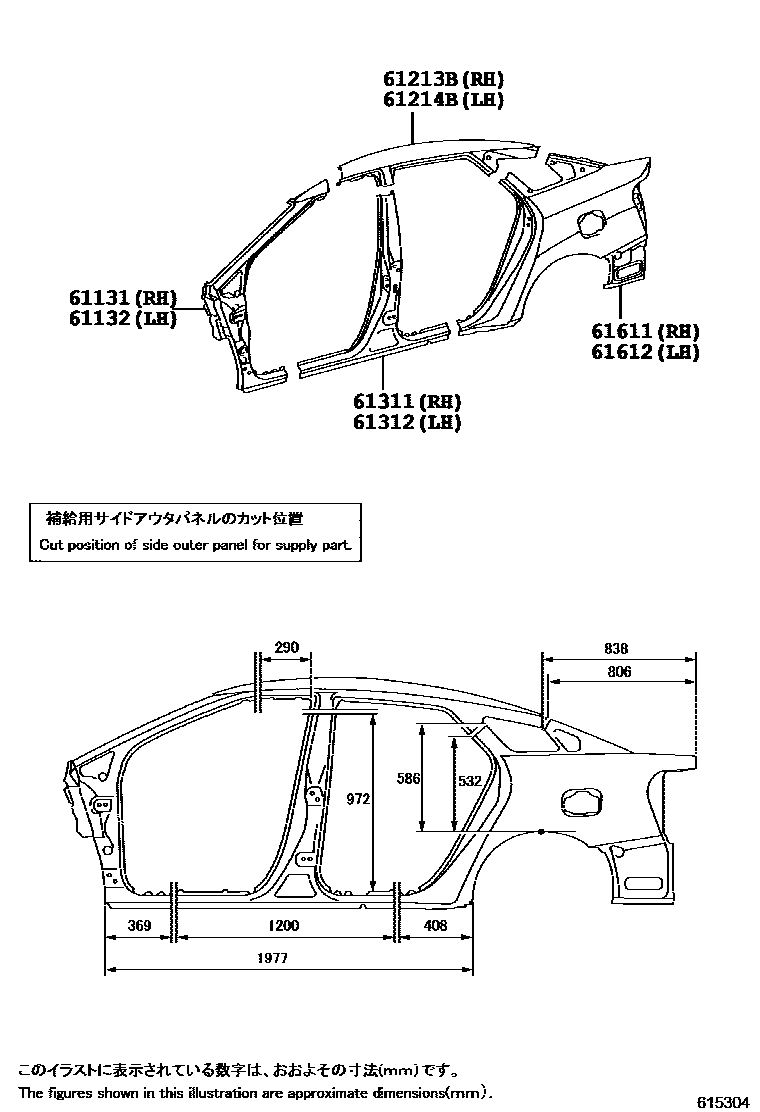

8 parts on this diagram · 3 diagrams in section
