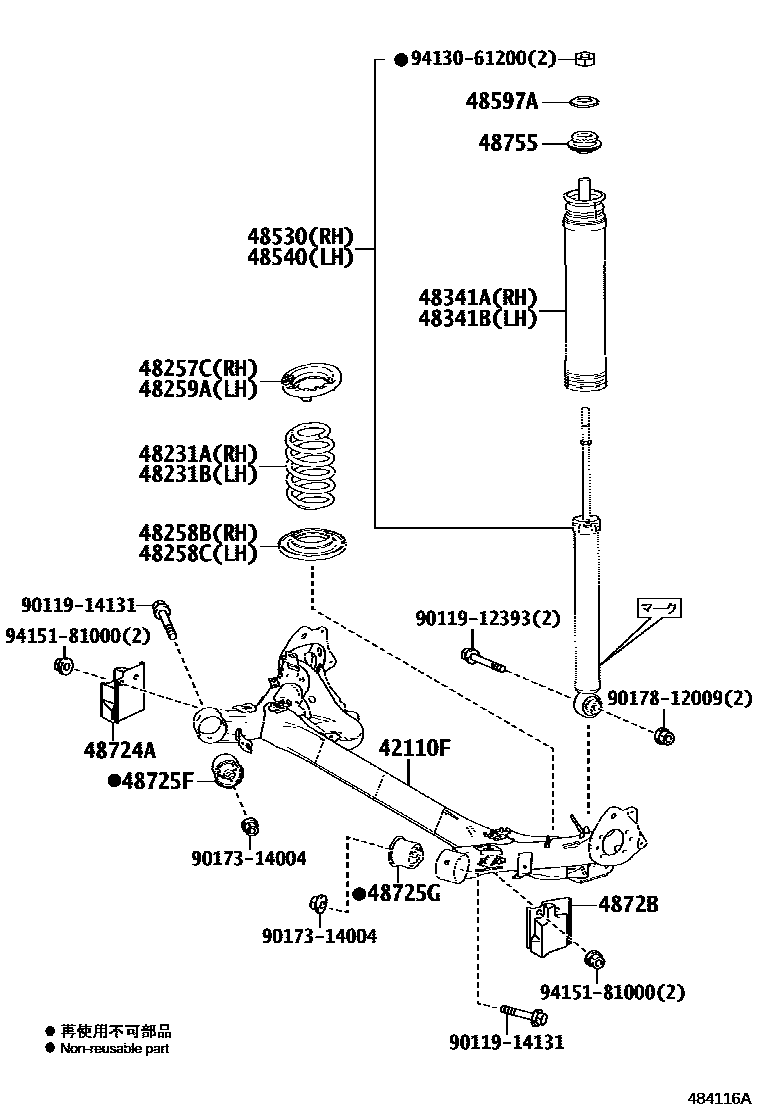

Toyota MIRAI — REAR SPRING & SHOCK ABSORBER
42110FBEAM ASSY, REAR AXLE
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48258BINSULATOR, REAR COIL SPRING, LOWER RH
48258CINSULATOR, REAR COIL SPRING, LOWER LH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-62010
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48530-62010
48597ARETAINER, REAR SHOCK ABSORBER CUSHION
48724ADAMPER, REAR AXLE BEAM DYNAMIC
48725FBUSH, REAR AXLE CARRIER, RH
48725GBUSH, REAR AXLE CARRIER, LH
4872BDAMPER, RR AXLE BEAM DYNAMIC, LH
48755SUPPORT, REAR SUSPENSION
9011912393
9011914131
9017314004
9017812009
9413061200
9415181000
23 parts on this diagram · 1 diagram in section
