Toyota MIRAI — REAR DOOR WINDOW REGULATOR & HINGE

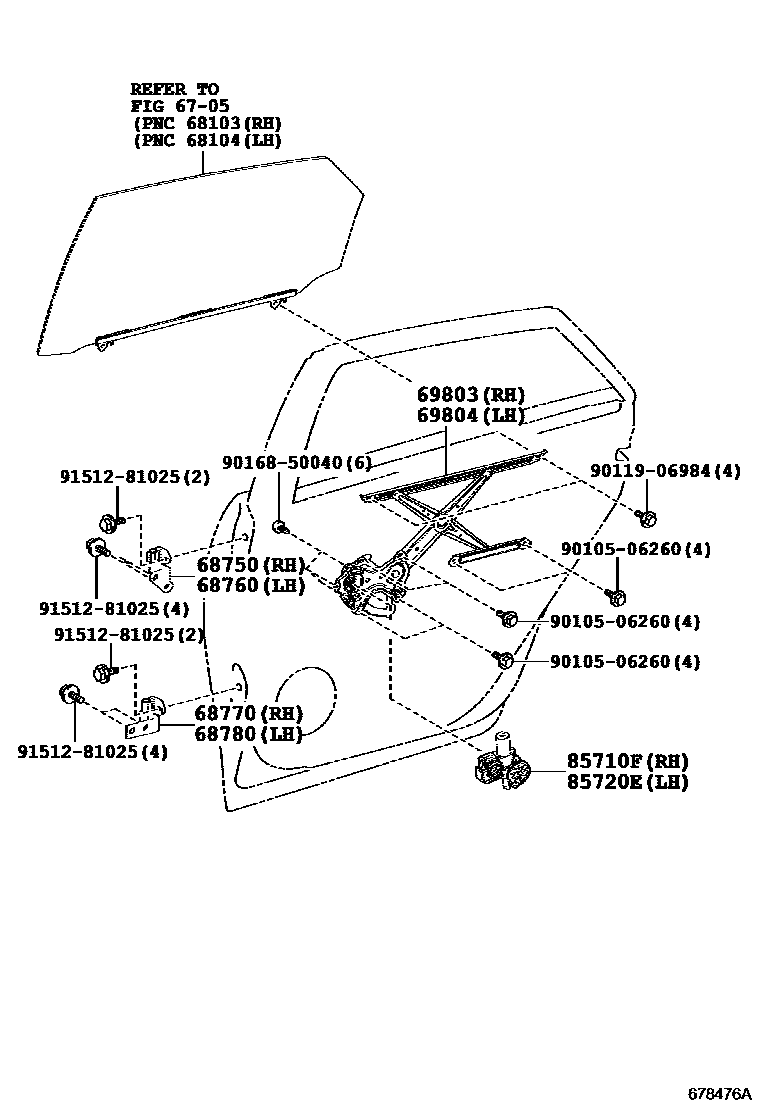

Parts diagram

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68730-30180i¥2,940201506-202005

68760HINGE ASSY, REAR DOOR, UPPER LH

main68740-30080i¥2,940201506-202005

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-30120i¥2,720201506-202005

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-30130i¥2,720201506-202005

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-52140i¥3,940201506-202005

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-52130i¥3,940201506-202005

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-78020i¥27,600201506-202005

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-78020i¥27,600201506-202005

9010506260

main90105-06260¥60

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9151281025

main91512-81025¥100

13 parts on this diagram · 1 diagram in section
