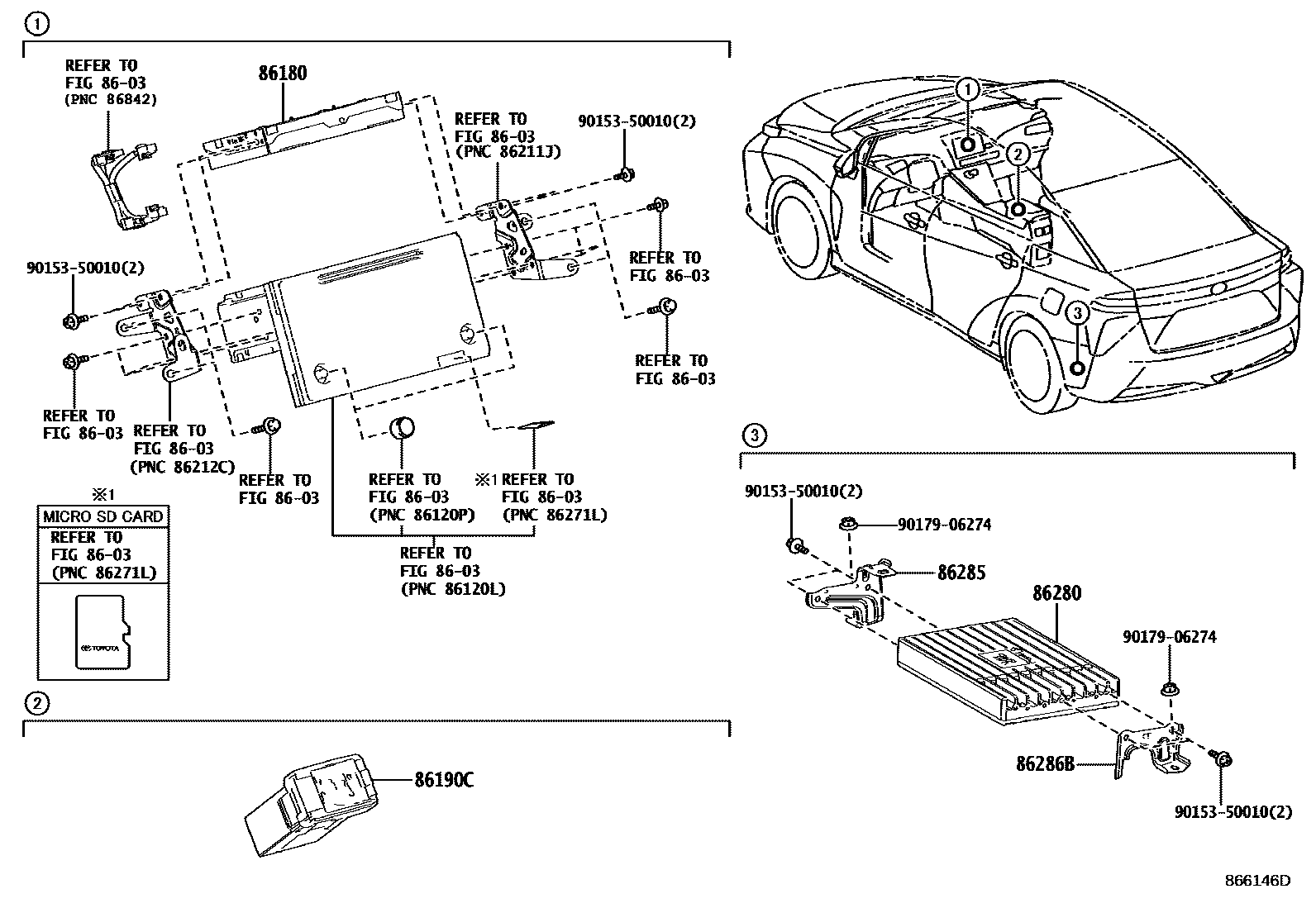

Toyota MIRAI — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1CONDENSER

8603

86180TUNER ASSY, STEREO COMPONENT

main86180-35050iJPD10¥35,600201506-201801

PIONEER

main86180-35050iJPD10¥35,600201506-201801

PIONEER,HAWAII SPEC

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-42040iJPD10¥8,800201506-202005

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-62010iJPD10201506-201801

main86280-62020iJPD10201801-201810

sub86280-62021

main86280-62021iJPD10201811-202005

86285BRACKET, AMPLIFIER, NO.1

main86285-62010iJPD10201506-202005

86286BBRACKET, AMPLIFIER, NO.2

main86286-62010iJPD10201506-202005

9015350010

main90153-50010¥70

9017906274

main90179-06274¥70

8 parts on this diagram · 2 diagrams in section
