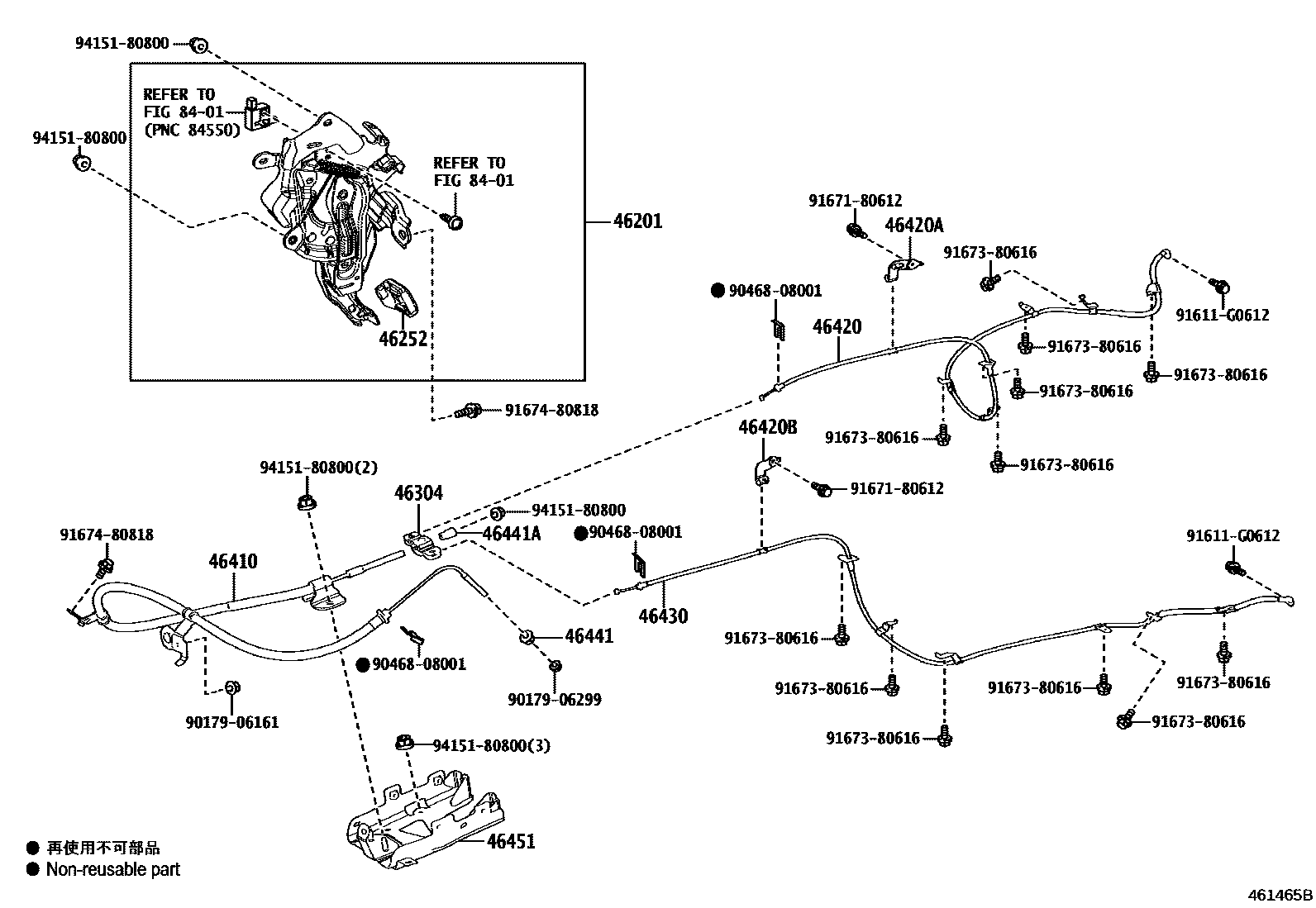

Toyota MIRAI — PARKING BRAKE & CABLE

0001 1 0002 1

46201PEDAL SUB-ASSY, PARKING BRAKE

main46250-62020iJPD10201506-202005

46252PAD, PARKING PEDAL

main46252-47010iJPD10¥530201506-202005

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-17020iJPD10¥550201506-202005

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-62020iJPD10201506-202005

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-62010iJPD10¥5,600201506-202005

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main46421-62010iJPD10¥460201506-202005

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main46431-62010iJPD10¥460201506-202005

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-62010iJPD10¥5,600201506-202005

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iJPD10¥160201506-202005

46441ANUT, WIRE ADJUSTING, NO.2

main46441-47020iJPD10¥160201506-202005

46451BRACKET, CABLE SUPPORT

main46451-62010iJPD10¥3,390201506-202005

8401

9017906161

main90179-06161¥70

9017906299

main90179-06299¥70

9046808001

main90468-08001¥210

91611G0612

main91611-G0612¥70

9167180612

main91671-80612¥60

9167380616

main91673-80616¥60

9167480818

main91674-80818¥80

9415180800

main94151-80800¥80

20 parts on this diagram · 2 diagrams in section
