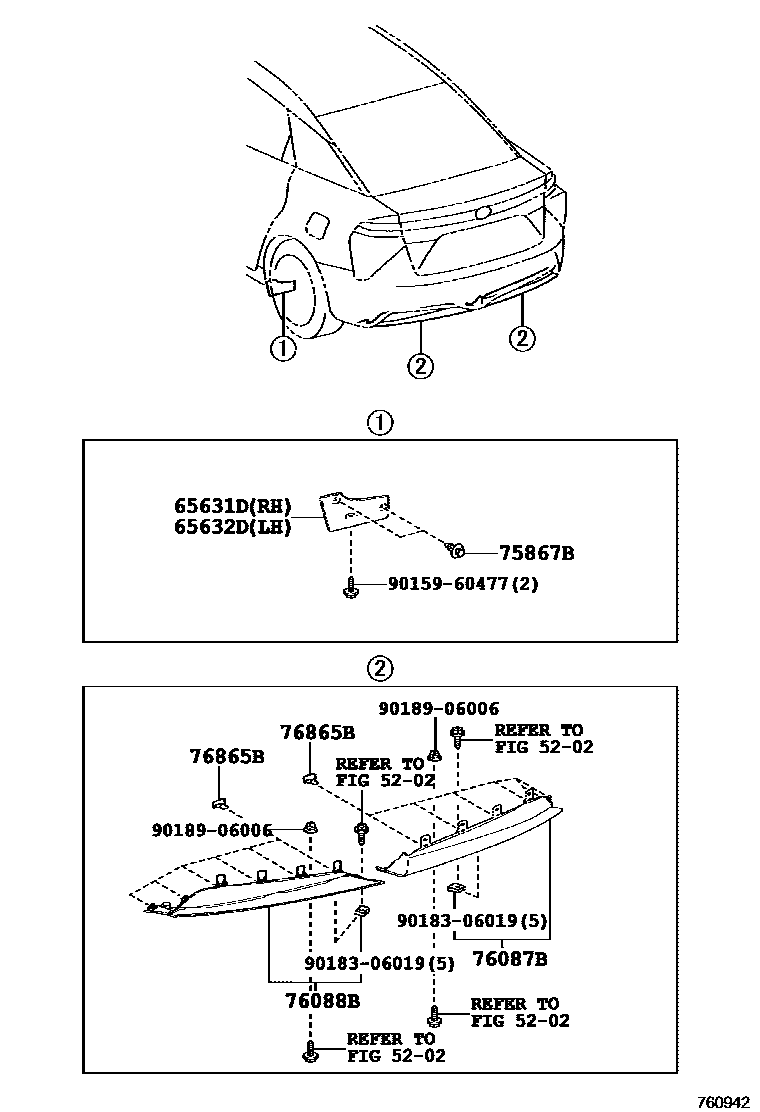

Toyota MIRAI — MUDGUARD & SPOILER

5202

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-62010iJPD10¥1,550201506-202005

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-62010iJPD10¥1,550201506-202005

75867BCLIP, ROCKER PANEL MOULDING

main75867-33050iJPD10¥210201506-202005

76087BSPOILER SUB-ASSY, REAR SIDE, RH

main76087-62010iJPD10¥15,800201506-202005

76088BSPOILER SUB-ASSY, REAR SIDE, LH

main76088-62010iJPD10¥15,800201506-202005

76865BRETAINER, REAR SPOILER

main75392-35200iJPD10¥130201506-202005

9015960477

main90159-60477¥70

9018306019

main90183-06019¥80

9018906006

main90189-06006¥100

10 parts on this diagram · 1 diagram in section
