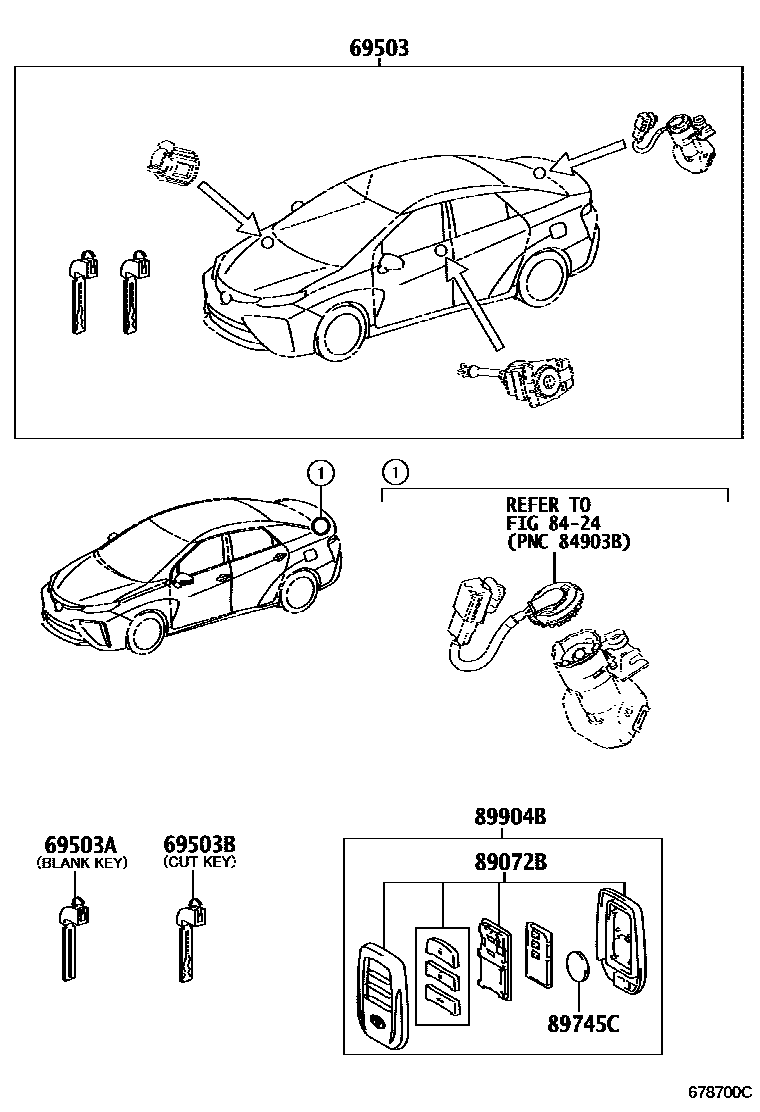

Toyota MIRAI — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-62030iJPD10201506-202005

69503AKEY, BLANK

main69515-33120iJPD10¥6,500201506-202005

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33110iJPD10¥7,100201506-202005

MASTER KEY,W(*68)

8424

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-62020iJPD10201506-202005

89745CBATTERY, TRANSMITTER

main89745-45010iJPD10¥440201506-202005

CR2032

sub89745-50020¥440

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-62020iJPD10¥20,100201506-202005

7 parts on this diagram · 1 diagram in section
