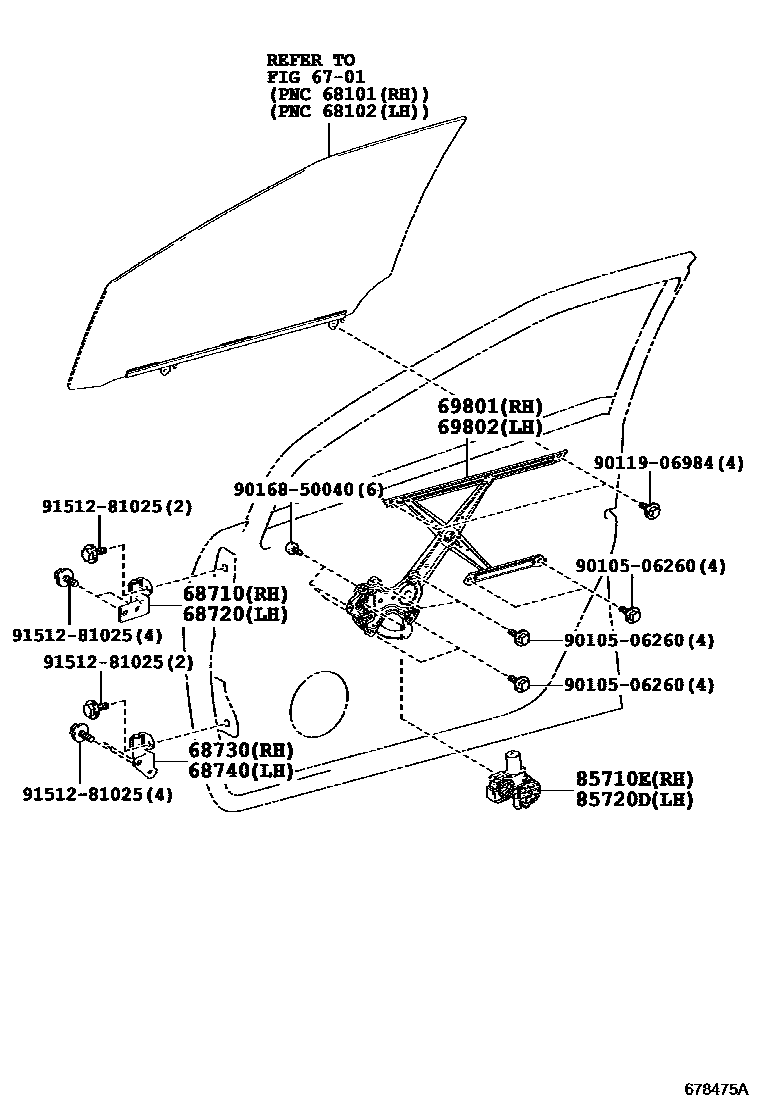

Toyota MIRAI — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68770-30140iJPD10¥2,940201506-202005

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68780-30150iJPD10¥2,940201506-202005

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30180iJPD10¥2,940201506-202005

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-30080iJPD10¥2,940201506-202005

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52140iJPD10¥3,940201506-202005

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52130iJPD10¥3,940201506-202005

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-62010iJPD10¥23,000201506-202005

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-62010iJPD10¥23,000201506-202005

9010506260

main90105-06260¥60

9011906984

main90119-06984¥60

9016850040

main90168-50040¥70

9151281025

main91512-81025¥100

13 parts on this diagram · 1 diagram in section
