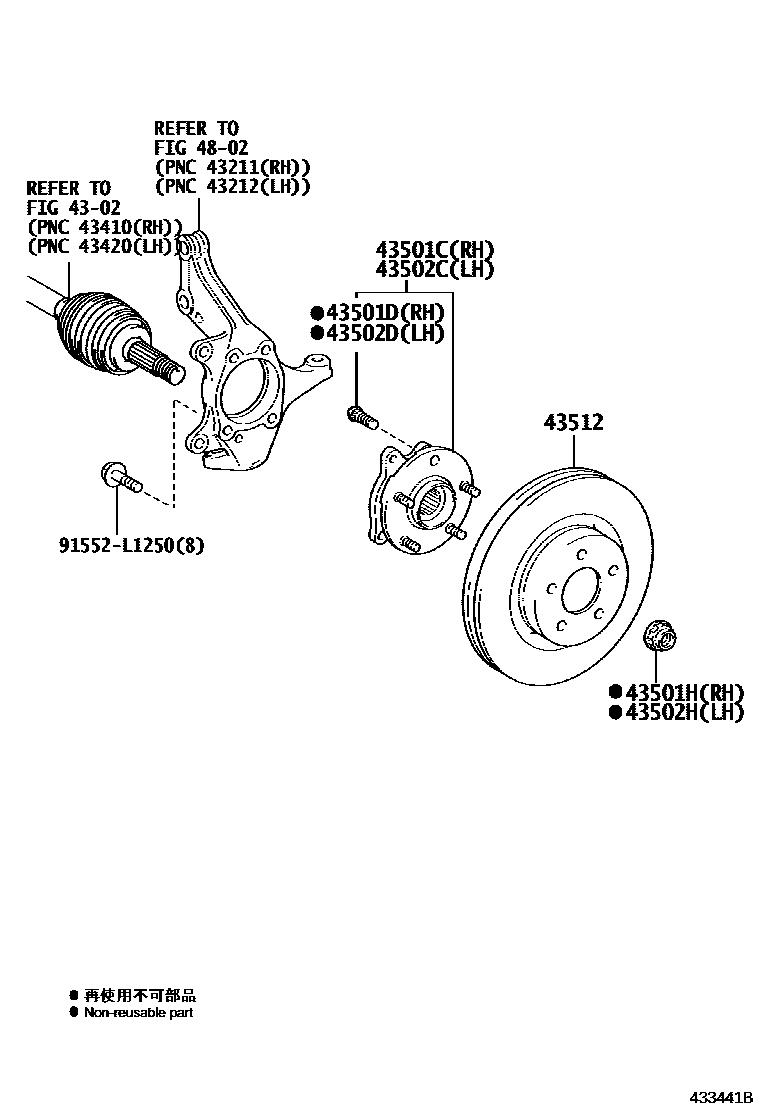

Toyota MIRAI — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-42020iJPD10¥18,200201506-202005

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iJPD10¥240201506-202005

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iJPD10¥220201506-202005

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-42020iJPD10¥18,200201506-202005

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iJPD10¥240201506-202005

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iJPD10¥220201506-202005

43512DISC, FRONT

main43512-42050iJPD10¥8,900201506-202005

4802

91552L1250

main91552-L1250¥190

10 parts on this diagram · 1 diagram in section
