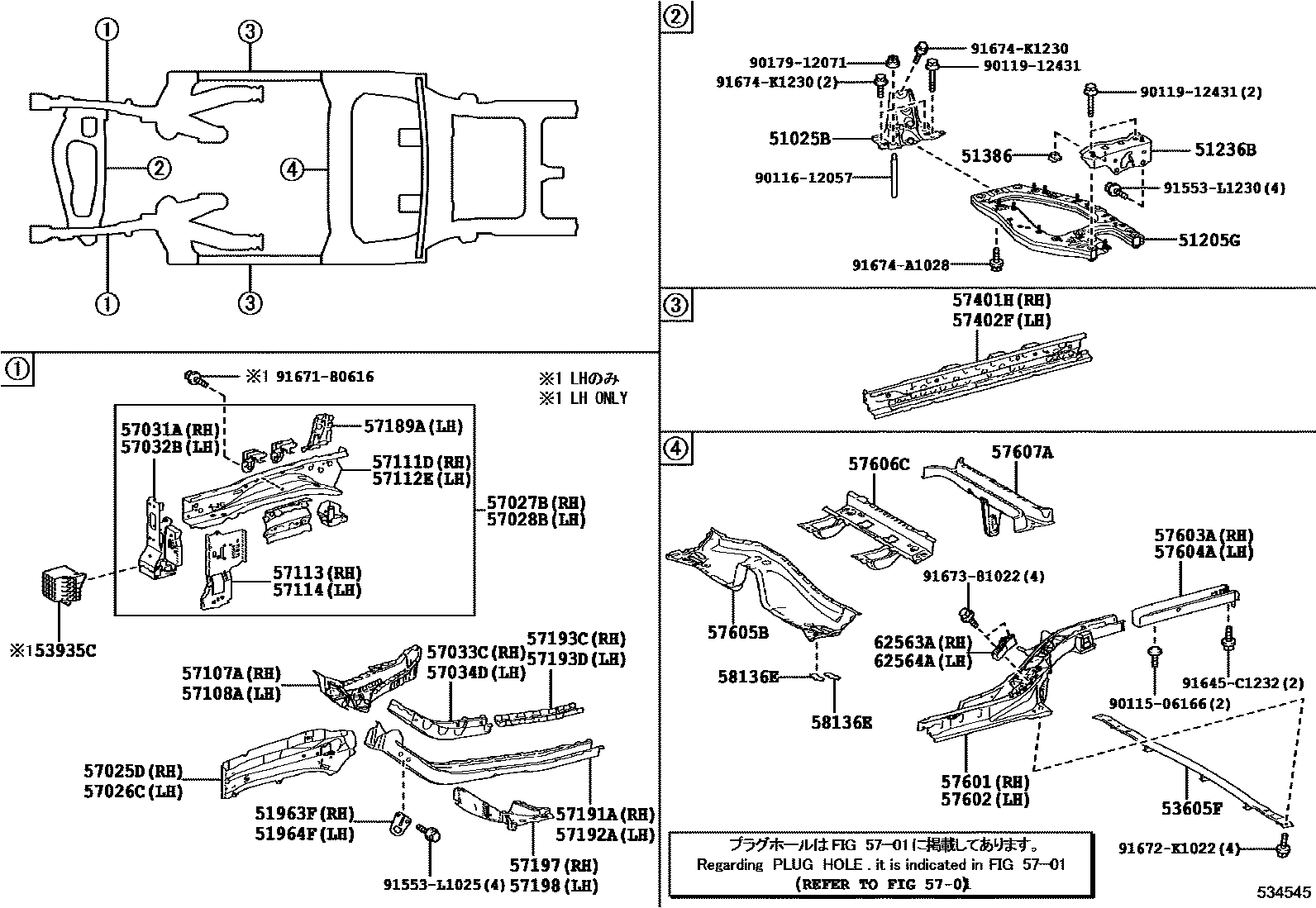

Toyota MIRAI — FLOOR SIDE MEMBER
51025BBRACKET SUB-ASSY, FRAME NO.3 CROSSMEMBER, RH
51205GCROSSMEMBER SUB-ASSY, FRAME, CENTER
51236BPLATE, FRAME CENTER CROSSMEMBER
51386SUPPORT, FRONT FRAME ROD, OUTER LH
51963FHOOK, TRANSPORT
51964FHOOK, TRANSPORT, LH
53605FBRACE SUB-ASSY, REAR SUSPENSION
53935CPROTECTOR, FRONT END PANEL
5701
57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH
57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH
57027BMEMBER SUB-ASSY, FRONT SIDE, INNER RH
57028BMEMBER SUB-ASSY, FRONT SIDE, INNER LH
57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57033CREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.3 RH
57034DREINFORCE SUB-ASSY, FRONT SIDE MENBER, NO.3 LH
57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH
57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH
57111DMEMBER, FRONT SIDE, INNER RH
57112EMEMBER, FRONT SIDE, INNER LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57189AGUSSET, FRONT SIDE MEMBER TO SPRING SUPPORT, LH
57191AMEMBER, FRONT SIDE, INNER REAR RH
57192AMEMBER, FRONT SIDE, INNER REAR LH
57193CPLATE, FRONT SIDE MEMBER, NO.8 RH
57193DPLATE, FRONT SIDE MEMBER, NO.8 LH
57197BOX, TORQUE, FRONT RH
57198BOX, TORQUE, FRONT LH
57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
58136ECOVER, FRONT SIDE MEMBER
62563APROTECTOR, ROCKER PANEL, INNER REAR RH
62564APROTECTOR, ROCKER PANEL, INNER REAR LH
9011506166
9011612057
9011912431
9017912071
91553L1025
91553L1230
91645C1232
9167180616
91672K1022
9167381022
91674A1028
91674K1230
54 parts on this diagram · 1 diagram in section
